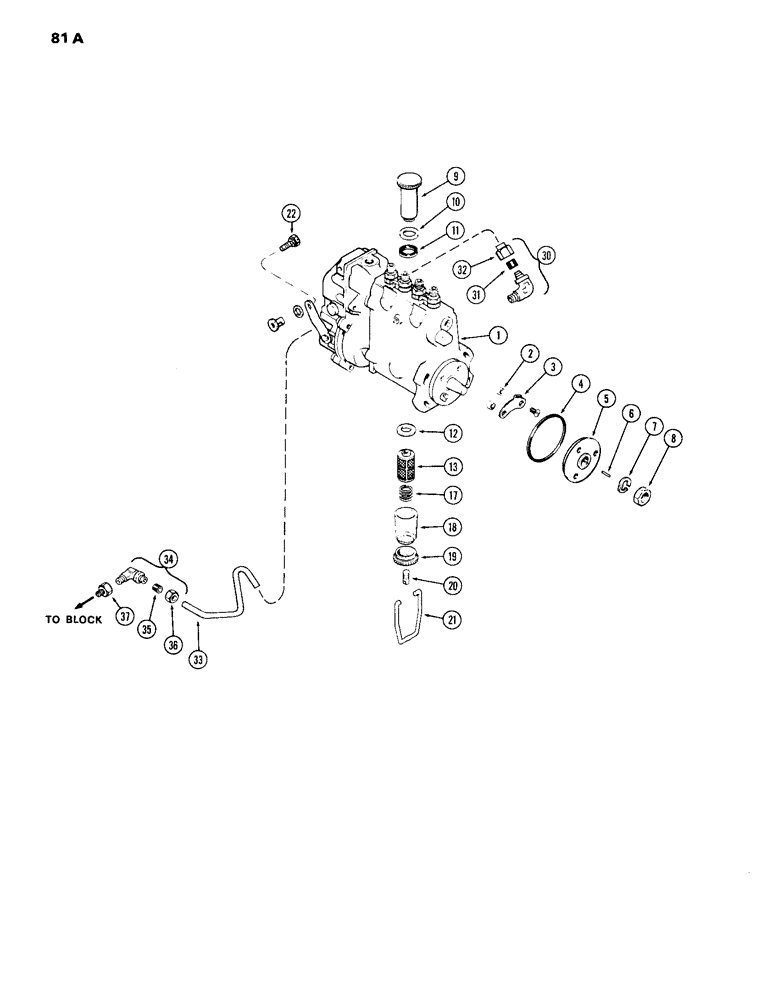

Запчасти Case IH 870 (081A) - FUEL INJECTION PUMP, (336B) DIESEL ENGINE, WITH LUBE LINE ON OUTSIDE OF PUMP (03) - FUEL SYSTEM

1

A138029

PUMP

ASSY. - fuel injection (2100 RPM) (Replaces A66089) (includes ref. 2 - 22)

1шт.

2

A41855

BUSHING

SPACER - pump timing pointer

2шт.

3

A41854

INDICATOR

POINTER - pump adjustment

1шт.

4

A41856

O-RING,3mm Thk x 75mm ID

"O" RING - seal, pump mounting

1шт.

5

A41853

HUB

- pump drive

1шт.

6

A20933

KEY

- pump drive, Serial Range: hub-shaft

1шт.

7

A42312

LOCK WASHER

- lock, pump drive hub nut

1шт.

8

A42313

NUT

- pump drive hub

1шт.

9

A43343

CARTRIDGE

PRIMER ASSY. - hand, fuel pump (includes ref. 10)

1шт.

10

A45342

GASKET

- primer pump (Rubber) (Replaces A44761)

1шт.

11

A43351

SEAL

- primer & port copper gasket

2шт.

12

A43346

GASKET

- bowl

1шт.

13

A43344

FILTER, ELEMENT

ELEMENT - filter, transfer pump

1шт.

17

A43345

SPRING

- retaining, element

1шт.

18

A43347

BOWL

- filter

1шт.

19

A43348

NUT

BAILNUT - retaining

1шт.

20

A43349

STUD

- retaining, bowl

1шт.

21

A43350

CLAMP

BAIL - bowl

1шт.

22

A44259

SCREW

- pump stop control cable lock

1шт.

30

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ASSY. - 1/4" tube x 1/8" P.T., 90 deg. (includes ref. 31 & 32)

1шт.

31

222-102

SLEEVE,1/4" Tube

1шт.

32

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.

33

A136902

TUBE

- oil, Serial Range: gallery-pump

1шт.

34

222-43

ELBOW,90 Degree, 1/2"-24 Fem x 1/4"-27 NPTF

ASSY. - 1/4" tube x 1/4" P.T., 90 deg. (includes ref. 35 & 36)

1шт.

35

222-102

SLEEVE,1/4" Tube

1шт.

36

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.

37

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

BUSHING - reducing, 3/8 to 1/4" hex

1шт.
