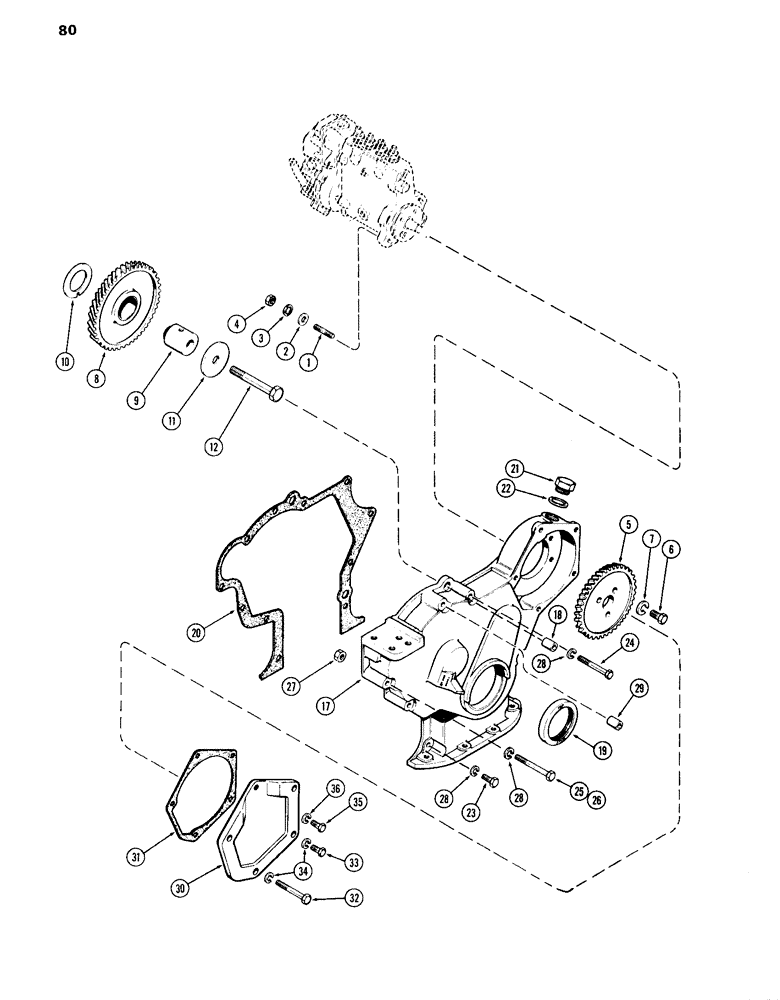

Запчасти Case IH 870 (080) - INJECTION PUMP DRIVE, (336B) DIESEL ENGINE (03) - FUEL SYSTEM

1

A58689

STUD

- pump mounting (3/8" N.C. x 1-7/8")

4шт.

2

A57470

WASHER

- (13/32 x 11/16 x 16 ga.)

4шт.

3

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

4

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex)

4шт.

5

A58693

GEAR

- injection pump (w/o hub) (48 teeth)

1шт.

6

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

7

92-6

LOCK WASHER,3/8"

3шт.

8

A62542

GEAR

ASSY. - idler w/bushing (53 teeth) (Replaces A58686)

1шт.

9

A58690

SHAFT

- idler gear

1шт.

10

A58691

WASHER

- thrust, idler shaft

1шт.

11

A58692

PLATE

- thrust, idler shaft

1шт.

12

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

1шт.

17

A58609

COVER

ASSY. - timing gear cover (includes ref. 18)

1шт.

18

A58611

PIN

- dowel, cover, timing gear

2шт.

19

A62049

OIL SEAL

- crankshaft, front, timing gear cover

1шт.

20

A58612

GASKET

- cover, timing gear

1шт.

21

A21140

PLUG

- timing window, gear cover

1шт.

22

A58613

SEALING WASHER

GASKET - timing window plug, gear cover

1шт.

23

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Timing gear cover Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

24

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- (3/8 x 2-1/2" N.C. hex), timing gear cover

2шт.

25

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- (3/8 x 3-1/2" N.C. hex), timing gear cover

1шт.

26

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- (3/8 x 3-1/4" N.C. hex), timing gear cover

2шт.

27

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex), timing gear cover

2шт.

28

92-6

LOCK WASHER,3/8"

timing gear cover 3/8"

9шт.

29

A19774

BUSHING

SPACER - alternator pry point, timing gear cover

1шт.

30

A61053

COVER

- fuel pump, timing gear cover

1шт.

31

A58615

GASKET

- fuel pump cover, timing gear cover

1шт.

32

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- (3/8 x 3-1/2" N.C. hex), timing gear cover

2шт.

33

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Timing gear cover Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

34

92-6

LOCK WASHER,3/8"

timing gear cover 3/8"

4шт.

35

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Timing gear cover Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

36

92-5

LOCK WASHER,5/16"

timing gear cover 5/16"

1шт.
