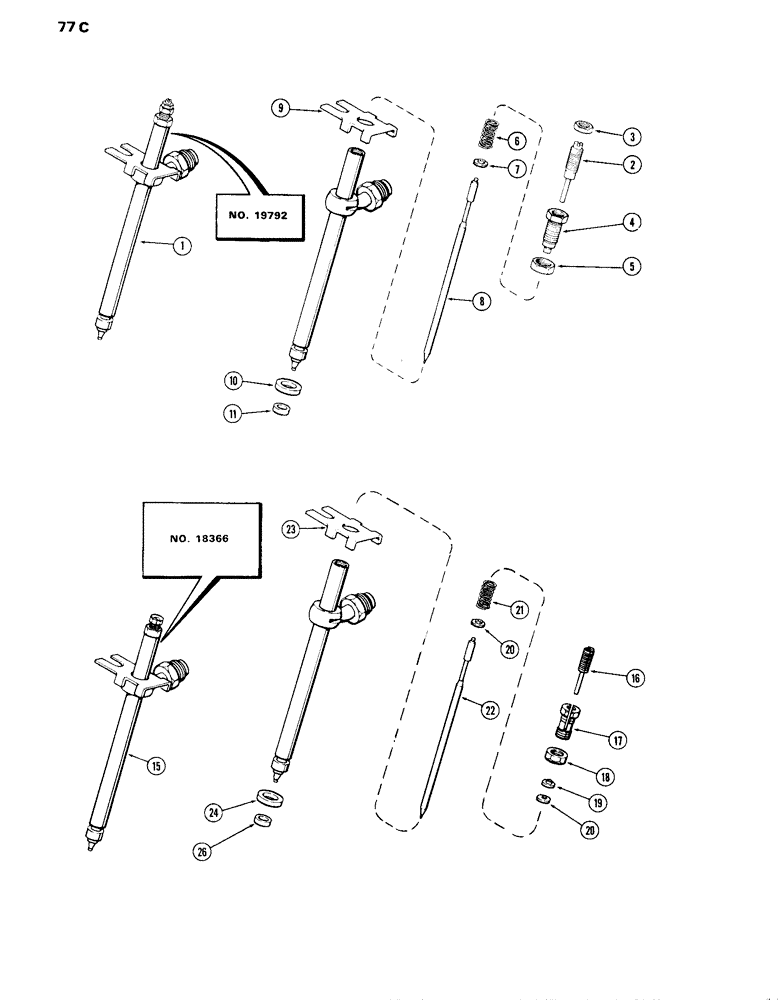

Запчасти Case IH 870 (077C) - A64439 FUEL INJECTION NOZZLE, (336B) DIESEL ENGINE, USED TRACTOR SERIAL NUMBERS 2504029 TO 2581421 (03) - FUEL SYSTEM

1

A64439

NOZZLE CAP

NOZZLE ASSY. - injection (Supplier's No. 19792 stamped on body) (Color code yellow) (Order A140830) (includes ref. 2 - 11)

4шт.

A140830R

REMAN-INJECT NOZZLE

870 (S/N 8675001 & AFTER) USED TRACTOR SERIAL NUMBERS 2504029 TO 2581421, Reman for new PN A64439

4шт.

A140830C

CORE-NOZZLE, INJECT

Return Number

1шт.

2

A43599

ADJUSTMENT SCREW,#10 - 56 x 1.39"

SCREW - lift adjusting

1шт.

3

A43602

NUT

- lock, lift adjusting (#10-56 thrd.)

1шт.

4

A43600

ADJUSTMENT SCREW,#10 - 56 x 0.68"

SCREW - pressure adjusting

1шт.

5

A42424

LOCK NUT

- lock, pressure adjusting (5/16"-48 thrd.)

1шт.

6

A43733

SPRING

- pressure adjusting (Color code red) (9/16" free length)

1шт.

7

A44369

SEAT

- spring (Replaces A41401)

1шт.

8

NSS

NOT SOLD SEPARAT

VALVE - nozzle

1шт.

9

A41768

PLATE

- nozzle locating

1шт.

10

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- plain

1шт.

11

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.

15

A59092

NOZZLE INJECTION

NOZZLE ASSY. - injection (Supplier's No. 18366 stamped on body) (Color code white) used prior to eng. s/n 2504029 [A59092 fuel injection nozzle] (includes ref. 16 - 24 & 26)

4шт.

A140830R

REMAN-INJECT NOZZLE

870 (S/N 8675001 & AFTER) (USED PRIOR TO ENG. S/N 2504029) USED TRACTOR SERIAL NUMBERS 2504029 TO 2581421, Reman for new PN A59092

4шт.

A140830C

CORE-NOZZLE, INJECT

Return Number

1шт.

16

A41408

ADJUSTMENT SCREW,#10 - 56 x 1.40"

SCREW - lift adjusting, used prior to eng. s/n 2504029 [A59092 fuel injection nozzle]

1шт.

17

A41409

ADJUSTMENT SCREW,5/16" - 48

SCREW - pressure adjusting, used prior to eng s/n 2504029 [A59092 fuel injection nozzle]

1шт.

18

A42424

LOCK NUT

- hex, used prior to eng s/n 2504029 [A59092 fuel injection nozzle]

1шт.

19

A41407

WASHER

- ball, used prior to eng s/n 2504029 [A59092 fuel injection nozzle]

1шт.

20

A44369

SEAT

- spring (Replaces A41401) used prior to eng s/n 2504029 [ A59092 fuel injection nozzle]

2шт.

21

A41444

VALVE SPRING

SPRING - nozzle pressure adjusting (17/32" free length) used prior to eng s/n 2504029 [A59092 fuel injection nozzle]

1шт.

22

NSS

NOT SOLD SEPARAT

VALVE - used prior to eng s/n 2504029 [A59092 fuel injection nozzle]

1шт.

23

A41768

PLATE

- nozzle locating used prior to eng s/n 2504029 [A59092 fuel injection]

1шт.

24

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- plain used prior to eng s/n 2504029 [A59092 fuel injection nozzle]

1шт.

26

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop, used prior to eng s/n 2504029 [A59092 fuel injection nozzle]

1шт.
