Запчасти Case IH 870 (075A) - FUEL TANK AND LINES, (336B) DIESEL ENGINE, NYLON MATERIAL (03) - FUEL SYSTEM

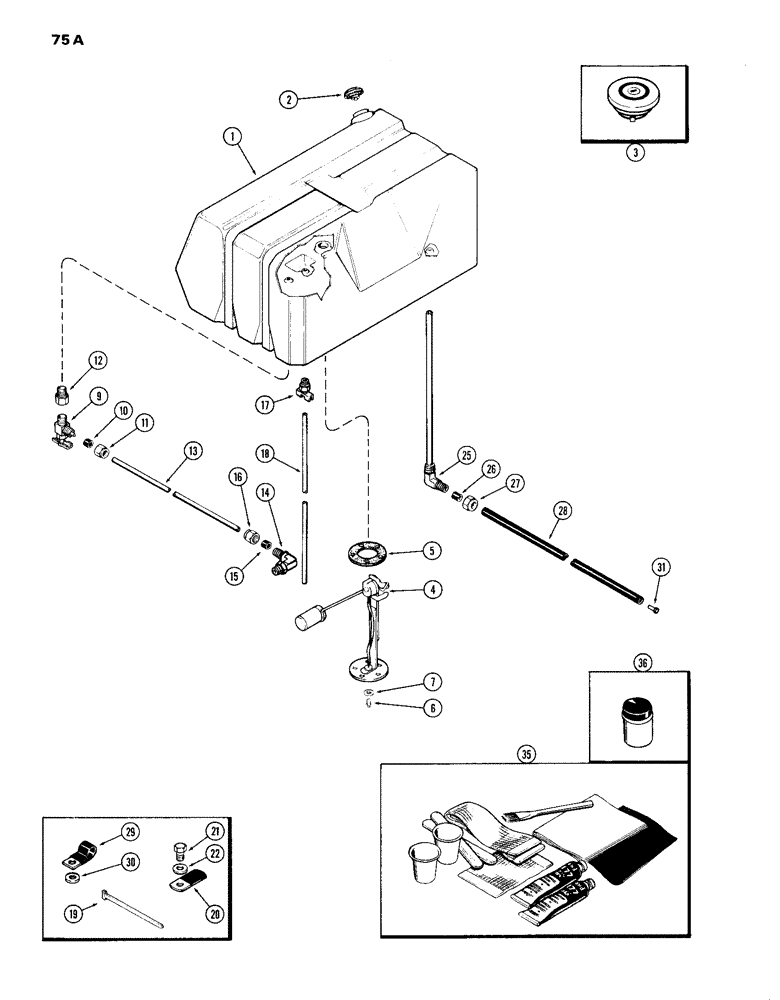

Схема запчастей Case IH 870 - (075A) - FUEL TANK AND LINES, (336B) DIESEL ENGINE, NYLON MATERIAL (03) - FUEL SYSTEM
29
7
25
16
26
36
30
15
21
12
31
20
22
18
10
4
14
5
9
27
19
35
28
13
17
11
6
3
2
1

Артикул

Название

Примечание

Количество

1

A59490

FUEL TANK

TANK - fuel (Order 1-A66820 tank, 1-A65893 pipe & 1-A23656 Valve)

1шт.

2

A32119

CAP

- fuel tank filler (w/o lock)

1шт.

3

A32120

CAP

- fuel tank filler (w/lock)

1шт.

4

A62092

UNIT

- sending fuel gauge

1шт.

5

A11822

GASKET

- sending unit

1шт.

6

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

- machine (#10 x 7/16" N.F. rd. hd.)

5шт.

7

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

5шт.

9

A181554

VALVE

ASSY. - fuel tank (Replaces A62354) (includes ref. 10 - 11)

1шт.

10

222-5186

SLEEVE,3/8" Tube

- (for ) 3/8" Tube

1шт.

11

222-5181

NUT,9/16"-24

NUT - (for 3/8" tube)

1шт.

12

217-2

ADAPTER,1/4"-18 Fem NPTF x 1/4"-18 NPTF Male

- outlet (1/4 x 1/4")

1шт.

13

A62320

TUBE

- tank, Serial Range: outlet-engine

1шт.

14

222-5140

FITTING,45 Degree, 17/32"-24 x 1/4" NPT

ELBOW - 45 deg. male (3/8" tube O.D. x 1/4" P.T.) (includes ref. 15 - 16)

1шт.

15

222-5186

SLEEVE,3/8" Tube

- (for ) 3/8" Tube

1шт.

16

222-5181

NUT,9/16"-24

NUT - (for 3/8" tube)

1шт.

17

217-107

VALVE

- drain cock (w/1/8" P.T. thrd.)

1шт.

18

A22988

HOSE,0.25" ID x 15.00", SAE SC716 CS

- Water trap drain 0.25" ID x 15.00", SAE SC716 CS

1шт.

19

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - tube

2шт.

20

A37179

CLIP

- tube (Used w/A62320 tube)

1шт.

21

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

22

92-6

LOCK WASHER,3/8"

1шт.

25

A62274

FITTING

PIPE ASSY. - fuel tank return port (3/8" P.T. thrd.) (includes ref. 26 & 27)

1шт.

26

222-5185

SLEEVE,1/4" Tube

- (for ) 1/4" Tube

1шт.

27

222-5180

TUBE NUT,7/16"-24

for 1/4" tube 7/16"-24

1шт.

28

A60722

TUBE

- injector to return port

1шт.

29

A57061

CLIP

- tube

1шт.

30

195-104

WASHER,3/8"

- clip (7/16 x 1 x 3/32")

1шт.

31

A141160

INSERT

- Nylon tube

1шт.

35

A44265

KIT

- repair, nylon tank (Replaces A42782) (also order A44266)

1шт.

Nylon tank is identified by 1/8" thread at drain and 3/8" thread at return port

1шт.

36

A44266

KIT

- adhesive, fuel tank repair

1шт.
