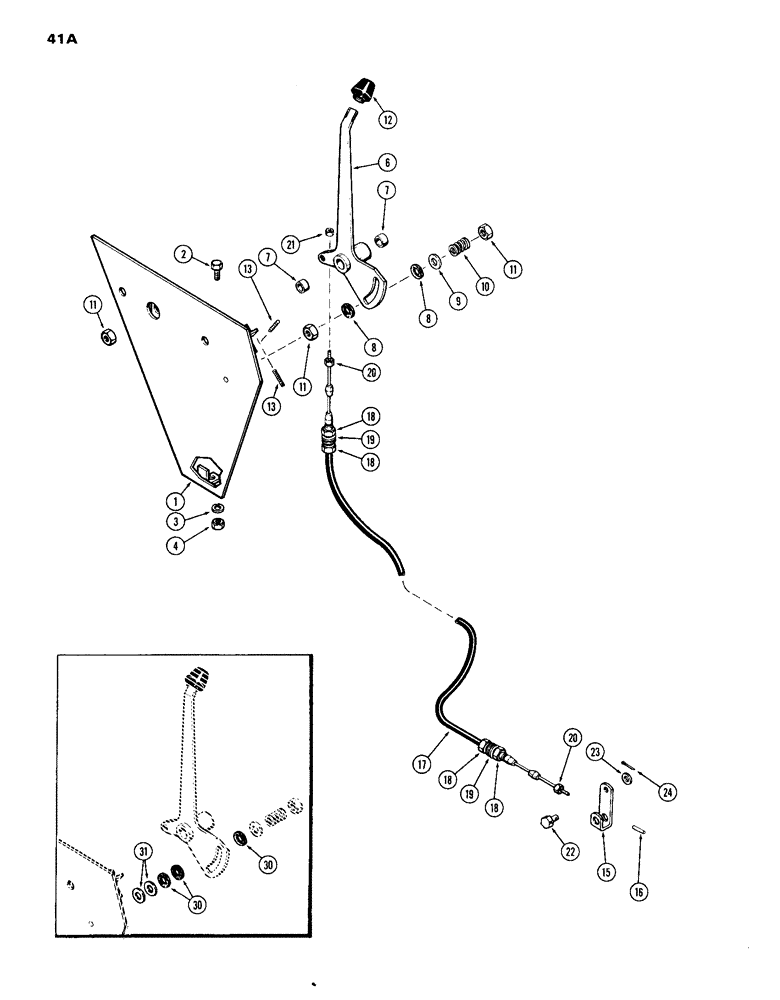

Запчасти Case IH 870 (041A) - HAND THROTTLE CONTROLS, (336B) DIESEL ENGINE, USED PRIOR TO TRACTOR SERIAL NUMBER 8693001 (03) - FUEL SYSTEM

1

A62420

PLATE

- console front shaft support

1шт.

2

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

1шт.

3

92-6

LOCK WASHER,3/8"

1шт.

4

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex)

1шт.

6

A61074

LEVER ASSY. - hand throttle (includes ref. 7)

1шт.

7

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- lever (5/8 x 3/4 x 1/2") (Bronze)

2шт.

8

A61069

DISC

- friction

2шт.

9

195-2172

WASHER,7/16" x 1 1/4" x .083"

- (7/16" x 1-1/4" x 14 ga.)

1шт.

10

A65583

SPRING

- friction disc (Replaces A26546)

1шт.

11

131-1306

JAM NUT,Jam, 3/8"-16

NUT - (3/8" N.C. jam)

4шт.

12

A65699

KNOB

- lever (Replaces A62078 & A65541)

1шт.

13

A61105

SCREW,1/4" - 20 x 1.20", Mild Steel

- SET (1/4 x 1-1/2" N.C. slotted nylock)

2шт.

15

A61702

LEVER

- throttle over-ride

1шт.

16

138-100

LOCK PIN,3/16" x 1 1/2", Slotted

PIN - roll (3/8 x 1-1/2")

1шт.

17

A59434

CABLE

- hand throttle (includes ref. 18, 19 & 20)

1шт.

18

25-157

JAM NUT,Jam, 7/16"-20, G5

- (7/16" N.F. hex, jam)

4шт.

19

193-31

LOCK WASHER,Int Tooth, 7/16"

WASHER - (7/16" int. teeth Shakeproof)

4шт.

20

129-27

NUT,Hex, #10 - 32

- (#10 N.F. hex, jam)

2шт.

21

193-1000

NUT,Keps, w/LW,#10-32

- (#10 N.F. hex, Keps)

1шт.

22

A61703

PIVOT

- throttle

1шт.

23

95-5

WASHER,3/8" x 7/8" x .083"

- (3/8 x 7/8 x 5/64")

1шт.

24

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

30

A61069

DISC

- friction

1шт.

31

195-2172

WASHER,7/16" x 1 1/4" x .083"

- (7/16 x 1-1/4 x 14 ga.)

1шт.
