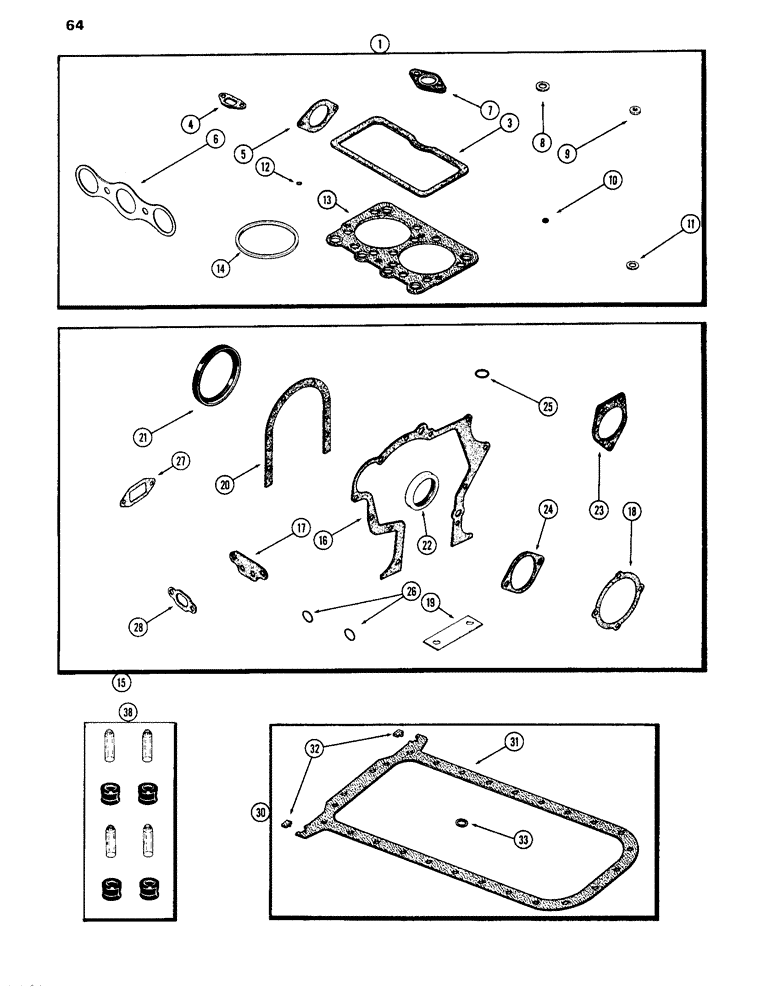

Запчасти Case IH 870 (064) - ENGINE GASKET KITS, (301B) SPARK IGNITION ENGINE (02) - ENGINE

1

A43183

GASKET

VALVE GRIND GASKET KIT - (Replaces A42024) (includes ref. 3 - 14)

1шт.

3

A65734

CYLINDER HEAD GASKET

- cylinder head cover (Replaces A58928)

2шт.

4

A27905

GASKET

- water manifold

4шт.

5

A28113

GASKET

- thermostat housing

1шт.

6

A58804

GASKET

- intake & exhaust manifolds

2шт.

7

A26434

GASKET

-, Serial Range: carburetor-manifold

1шт.

8

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

- breather, Serial Range: tube-cover

2шт.

9

A23684

GASKET

GASKET - cylinder head cover studs

4шт.

10

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- oil, intake valve stem

8шт.

11

A34133

GASKET

- breathe blow-by tube screw

2шт.

12

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - rocker shaft oil tube

2шт.

13

A62216

GASKET

- cylinder head (Replaces A59096)

2шт.

14

A59095

GASKET

RING - fire, cyl. head (Standard)

4шт.

15

A41834

CYLINDER

BLOCK GASKET KIT (includes ref. 16 - 28)

1шт.

16

A58612

GASKET

- timing gear cover

1шт.

17

A58756

OIL PAN GASKET SET

- oil filter, Serial Range: base-block

1шт.

18

A58646

GASKET

- water pump body

1шт.

19

A58859

SHIM,.005" Thk

Oil pump .005" Thk

1шт.

20

A32830

GASKET

- rear seal retainer

1шт.

21

A62050

OIL SEAL

- oil, crankshaft, rear

1шт.

22

A62049

OIL SEAL

- oil, crankshaft, front

1шт.

23

A58820

GASKET

- governor mounting

1шт.

24

A58617

GASKET

- pump mounting bracket

1шт.

25

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

"O" RING - distributor

1шт.

26

A64434

O-RING,0.93" ID x 1.142" x 0.106"

"O" RING - lube oil filter base (Not Applicable)

3шт.

27

A58649

GASKET

- water, Serial Range: pump-block

1шт.

28

A58670

GASKET

- oil cooler water opening

1шт.

30

A43005

GASKET KIT

OIL PAN GASKET KIT (includes ref. 31, 32 & 33)

1шт.

31

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order ref. 30)

1шт.

32

A62402

GASKET

- oil pan rear corners

2шт.

33

A58608

GASKET

- drain plug

1шт.

33

A27968

RING

- oil pan drain plug (Not Applicable)

1шт.

38

M20614

SEAL KIT

SEAL KIT - valve (Set of 4)

2шт.
