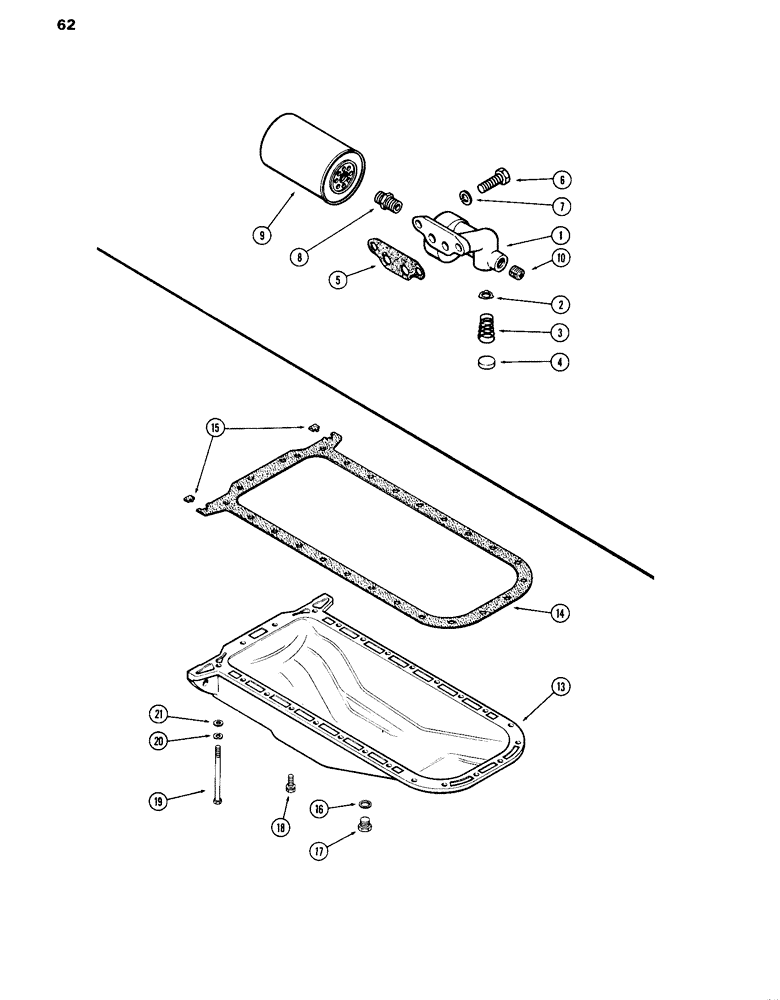

Запчасти Case IH 870 (062) - OIL FILTER, (301B) SPARK IGNITION ENGINE (02) - ENGINE

1

A58752

BASE

ASSY. - oil filter (includes ref. 2, 3 & 4)

1шт.

2

A58754

VALVE

- relief, filter

1шт.

3

A58755

FILTER

SPRING - relief valve

1шт.

4

41-1016

PLUG,Cup, 1"

- relief valve (1" cup type)

1шт.

5

A58756

OIL PAN GASKET SET

- filter, Serial Range: base-block

1шт.

6

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- (1/2 x 1-3/4" N.C. hex)

2шт.

7

92-8

LOCK WASHER,1/2"

2шт.

8

A58757

ADAPTER

-, Serial Range: element-base

1шт.

9

A58758

FILTER, ELEMENT

ELEMENT - filter, oil

1шт.

10

221-23

PLUG

- pipe (1-3/8" sq. sckt. hd.)

1шт.

13

A64762

PAN

- oil (Replaces A58730)

1шт.

14

NSS

NOT SOLD SEPARAT

GASKET - oil pan (See Figure 64)

1шт.

15

A62402

GASKET

- oil pan (rear corners)

2шт.

16

A58608

GASKET

- oil pan drain plug

1шт.

17

A14280

PLUG

- drain, oil pan

1шт.

18

193-527

WASHER,Hex, 3/8" - 16 x 1 1/4"

BOLT - (3/8 x 1-1/4" N.C. Sems), oil pan

20шт.

19

A57436

BOLT

- (3/8 x 5-3/4" N.C. hex) (Special), oil pan

2шт.

20

A22317

WASHER

- copper (25/64 x 11/16 x 18 ga.), oil pan

2шт.

21

A7085

WASHER

- copper (25/64 x 9/16 x 18 ga.), oil pan

2шт.
