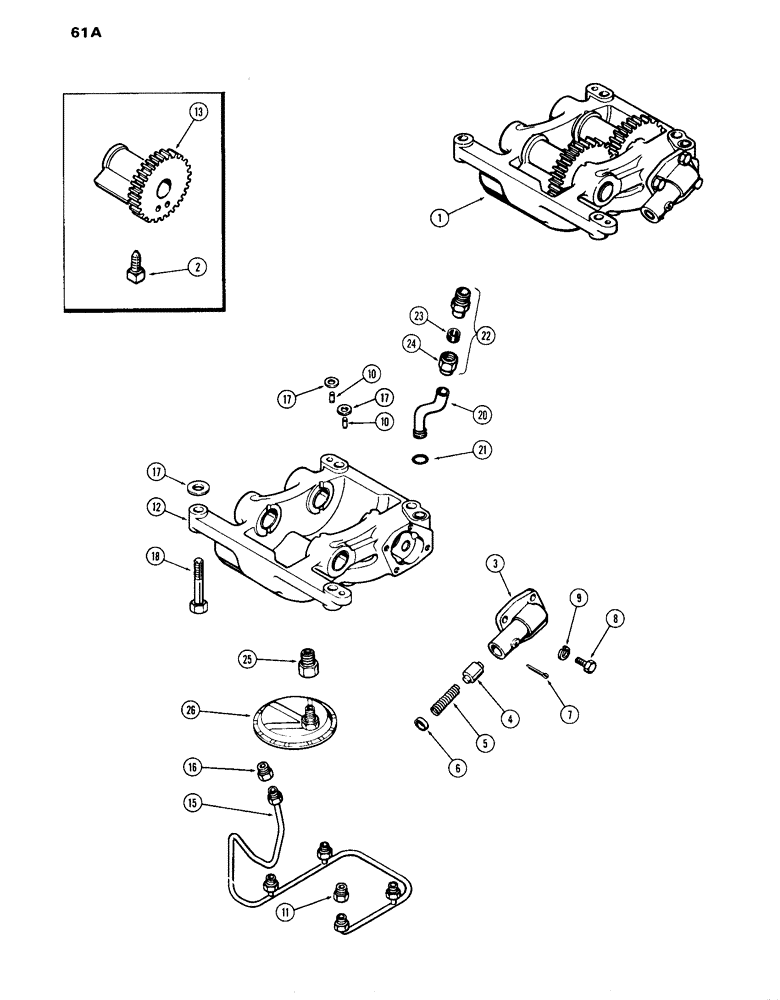

Запчасти Case IH 870 (061A) - BALANCER AND OIL PUMP, (301B) SPARK IGNITION ENGINE, USED PRIOR TO ENGINE SERIAL NUMBER 2530834 (02) - ENGINE

1

A65128

BALANCER

& OIL PUMP ASSY. - engine (Replaces A62595) (includes ref. 2 - 13)

1шт.

2

181-675

SET SCREW,Sq Hd, 1/2"-13 x 1"

SCREW - set (1/2 x 1-1/4" sq. hd.)

4шт.

3

A61129

COVER

- lube oil pump

1шт.

4

A34992

PISTON

VALVE - relief, lube oil pump

1шт.

5

A59111

SPRING

- oil pump relief valve

1шт.

6

41-1011

PLUG,Cup, 11/16"

- oil pump cover

1шт.

7

132-32

COTTER PIN,3/32" x 1 1/2"

Pin, Split (Cotter), 3/32" x 1 1/2"

1шт.

8

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

3шт.

8

13-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

- (5/16 x 1-3/8" N.C. hex)

1шт.

9

92-5

LOCK WASHER,5/16"

4шт.

10

A8134

PIN

- dowel

2шт.

11

222-1012

HYD CONNECTOR,7/16"-24 Inv Fl x 1/8" NPT

CONNECTOR - (1/4" tube x 1/8" P.T.)

4шт.

12

NSS

NOT SOLD SEPARAT

HOUSING ASSY. - balancer w/shaft & bushings

1шт.

13

NSS

NOT SOLD SEPARAT

COUNTERWEIGHT - balancer

2шт.

15

A62002

MANIFOLD

- balancer oil supply

1шт.

16

222-1012

HYD CONNECTOR,7/16"-24 Inv Fl x 1/8" NPT

CONNECTOR - (1/4" tube x 1/8" P.T.) (In Block)

1шт.

17

G49401

SHIM,.005" Thk

1шт.

17

G49402

SHIM,.010" Thk

1шт.

18

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- (1/2 x 2-3/4" N.C. hex)

2шт.

18

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- (1/2 x 3" N.C. hex)

2шт.

20

A61130

TUBE

- balancer oil, Serial Range: pump-block

1шт.

21

A64436

O-RING,0.549" ID x 0.755" OD

"O" RING - oil pump to block to balancer

1шт.

22

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTOR - (5/8 tube x 1/2" P.T.) (includes ref. 23 & 24)

1шт.

23

222-106

SLEEVE,5/8" Tube

- (for ) 5/8" Tube

1шт.

24

222-116

TUBE NUT,1"-18

NUT - (for 5/8" tube)

1шт.

25

A22591

ADAPTER

-, Serial Range: screen-balancer

1шт.

26

A22590

FILTER SCREEN

SCREEN - oil inlet

1шт.
