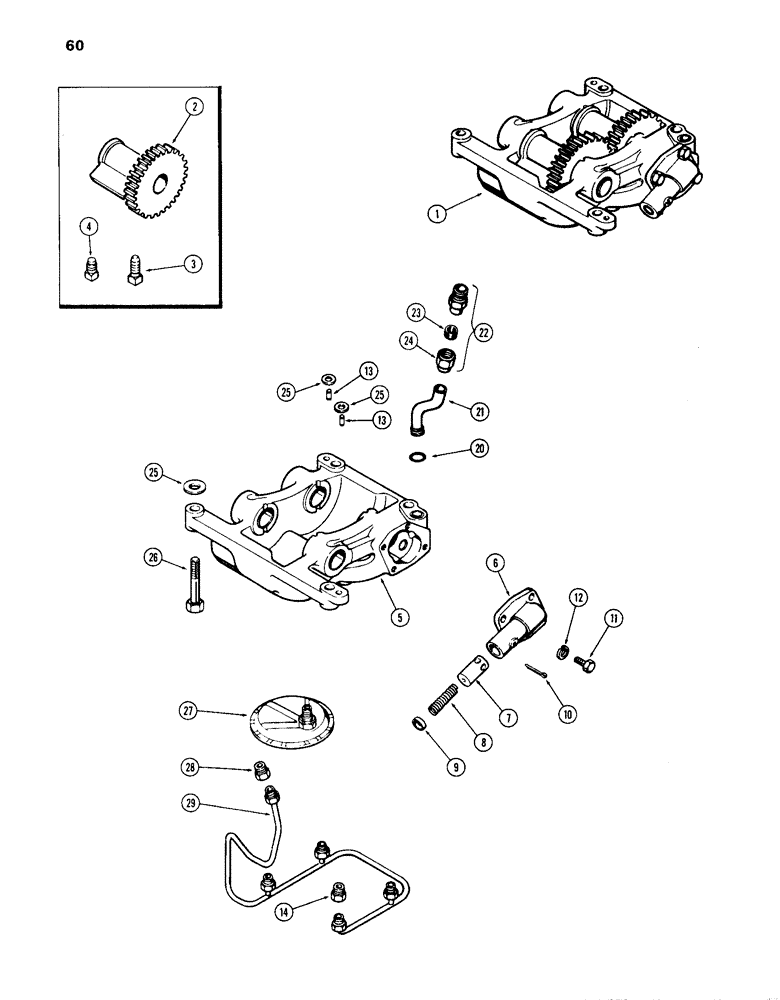

Запчасти Case IH 870 (060) - BALANCER AND OIL PUMP, (301B) SPARK IGNITION ENGINE, FIRST USED ENGINE SERIAL NUMBER 2530834 (02) - ENGINE

1

A66167

BALANCER

ASSY. - engine w/integral oil pump (includes ref. 2 - 14)

1шт.

2

NSS

NOT SOLD SEPARAT

COUNTERWEIGHT - balancer

2шт.

3

181-675

SET SCREW,Sq Hd, 1/2"-13 x 1"

SCREW - 1/2 x 1-1/4" N.C. sq. hd. dog pt. set

2шт.

4

A66098

SCREW,Square , 1/2" - 20 x 3/4", Grade 5

- 1/2 x 3/4" N.F. sq. hd. half dog pt. set

2шт.

5

NSS

NOT SOLD SEPARAT

HOUSING ASSY. - balancer w/shaft & bushings

1шт.

6

A61129

COVER

- oil pump

1шт.

7

A65083

VALVE

- relief, oil pump (Replaces A34992)

1шт.

8

A59111

SPRING

- relief valve

1шт.

9

41-1011

PLUG,Cup, 11/16"

- Cup, 11/16"

1шт.

10

132-32

COTTER PIN,3/32" x 1 1/2"

Pin, Split (Cotter), 3/32" x 1 1/2"

1шт.

11

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

3шт.

11

13-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

- 5/16 x 1-3/8" N.C. hex

1шт.

12

92-5

LOCK WASHER,5/16"

4шт.

13

A8134

PIN

- dowel

2шт.

14

222-1012

HYD CONNECTOR,7/16"-24 Inv Fl x 1/8" NPT

CONNECTOR - 1/8" P.T. for 1/4" tube

4шт.

20

A64436

O-RING,0.549" ID x 0.755" OD

"O" RING - 9/16 x 3/4 x 3/32"

1шт.

21

A61130

TUBE

-, Serial Range: pump-block

1шт.

22

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTOR ASSY. - 1/2" P.T. for 5/8" tube (includes ref. 23 & 24)

1шт.

23

222-106

SLEEVE,5/8" Tube

- for 5/8" Tube

1шт.

24

222-116

TUBE NUT,1"-18

NUT - for 5/8" tube

1шт.

25

G49401

SHIM,.005" Thk

Mounting .005" Thk

1шт.

25

G49402

SHIM,.010" Thk

Mounting .010" Thk

1шт.

26

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- 1/2 x 2-1/4" N.C. hex

2шт.

26

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- 1/2 x 3" N.C. hex

2шт.

27

A22590

FILTER SCREEN

SCREEN ASSY. - oil inlet

1шт.

28

222-1012

HYD CONNECTOR,7/16"-24 Inv Fl x 1/8" NPT

CONNECTOR - 1/8" P.T. for 1/4" tube

1шт.

29

A62002

MANIFOLD

- balancer oil supply

1шт.
