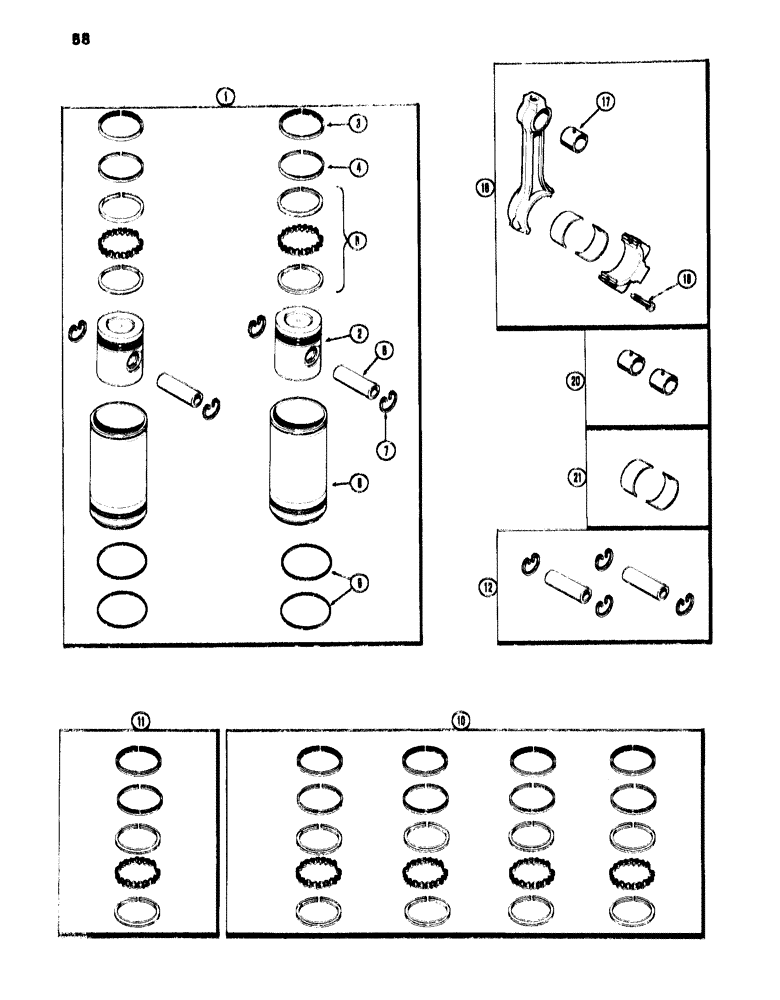

Запчасти Case IH 870 (058) - PISTON ASSEMBLY AND CONNECTING RODS, (301B) SPARK IGNITION ENGINE (02) - ENGINE

1

A46020

PISTON

& SLEEVE KIT - (Set of 2) (Replaces A42022) (includes ref. 2 - 9)

2шт.

2

A59610

PISTON

- cylinder, 4-3/8" bore

2шт.

3

NSS

NOT SOLD SEPARAT

RING - compression (1st groove) (Order ref. 11)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - compression (2nd groove) (Order ref. 11)

2шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control (3rd groove) (Order ref. 11)

2шт.

6

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. 12)

2шт.

7

A27844

RING

- snap, piston pin retaining

4шт.

8

A142367

SLEEVE

- piston (cylinder liner) (Replaces A59093)

2шт.

9

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - sleeve packing (4-1/2 x 4-3/4 x 1/8")

4шт.

10

A42031

RING KIT - re-ring (Set of 4) (includes ref. 11)

1шт.

11

A42030

PISTON RING SET

RING KIT - re-ring (Set of 1)

4шт.

12

A21724

KIT

PIN KIT - w/retaining rings (Set of 2)

2шт.

16

A58788

EXCHANGE CONROD

ROD ASSY. - connecting (includes ref. 17 & 18)

4шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order ref. 20)

1шт.

18

A65757

FLANGE BOLT,1/2" - 20 x 2.31"

BOLT - connecting rod cap (Replaces A62184 & A27848)

2шт.

20

A21721

BUSHING

KIT - piston pin (Set of 2)

2шт.

21

A43173

BEARING LINER

INSERT ASSY. - connecting rod bearing (Standard) (Replaces A20393)

4шт.

21

A43174

BEARING LINER

INSERT ASSY. - connecting rod bearing (-.002") (Replaces A20569)

4шт.

21

A43175

BEARING LINER,70.25mm ID x 74.32mm OD x 40.54mm W

INSERT ASSY. - connecting rod bearing (-.010") (Replaces A20571)

4шт.

21

A43176

BEARING LINER,70mm ID x 74.32mm OD x 40.54mm W

INSERT ASSY. - connecting rod bearing (-.020") (Replaces A20573)

4шт.

21

A43177

BEARING LINER

INSERT ASSY. - connecting rod bearing (-.030") (Replaces A20576)

4шт.
