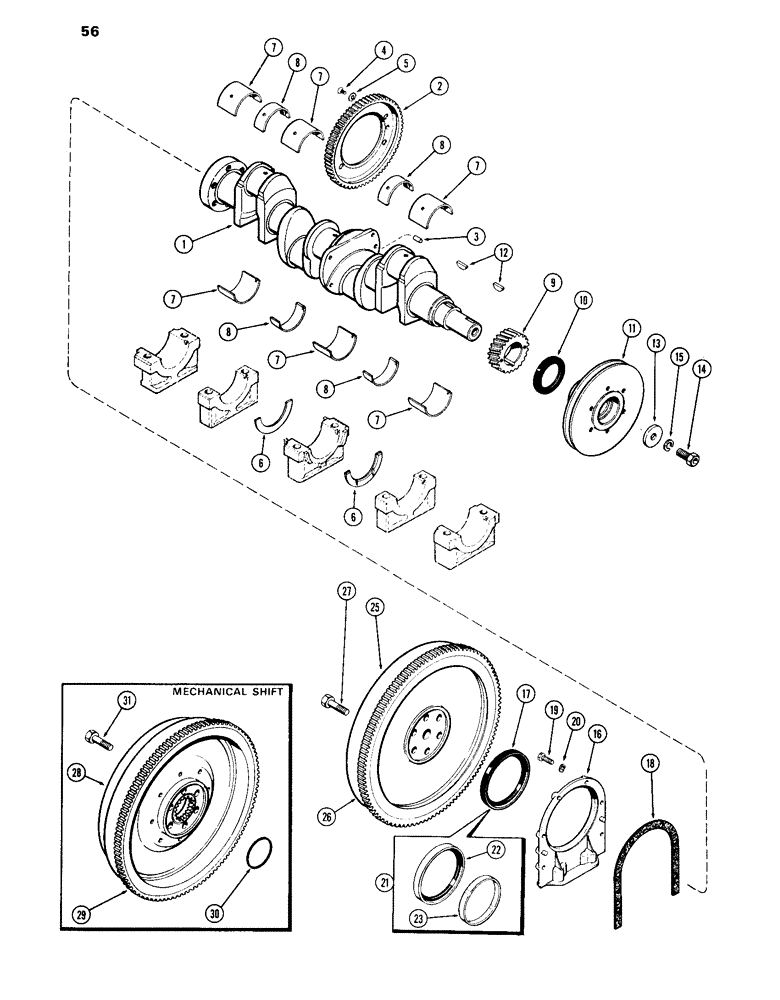

Запчасти Case IH 870 (056) - CRANKSHAFT AND FLYWHEEL, (301B) SPARK IGNITION ENGINE (02) - ENGINE

1

A58889

CRANKSHAFT

- engine

1шт.

2

A62450

GEAR

- balancer drive (86 teeth)

1шт.

3

A8134

PIN

- balancer drive gear

1шт.

4

A66784

HEX SOC SCREW,Torx, 3/8" - 24 x 0.75"

SCREW - balancer gear

4шт.

5

193-56

LOCK WASHER,Ext Csk Tooth, 3/8"

WASHER, LOCK, Ext Csk Tooth, 3/8"

4шт.

6

A62573

THRUST WASHER,88.06mm ID x 114.3mm OD x 4.7mm Thk

WASHER - thrust, crankshaft (.185" wide)

2шт.

6

A42932

BEARING WASHER,87.81mm ID x 114.55mm OD x 4.88mm Thk

WASHER - thrust, crankshaft (.191" wide)

2шт.

7

A43168

BEARING LINER

LINER - main brg., wide (Std.) (Repl. A43063 & A28687)

3шт.

7

A43169

KIT

LINER - main brg., wide (-.002") (Repl. A43055 & A87182)

3шт.

7

A43170

LINING

LINER - main brg., wide (-.010") (Replaced A43057 & A7188)

3шт.

7

A43171

LINING

LINER - main brg., wide (-.020") (Replaced A43059 & A7194)

3шт.

7

A43172

LINING

LINER - main brg., wide (-.030") (Replaced A43061 & A7200)

3шт.

8

A43158

BEARING LINER

LINER - main brg., narrow (Std.) (Repl. A42492 & A20394)

2шт.

8

A43159

BEARING LINER

LINER - main brg., narrow (-.002") (Repl. A42482 & A20579)

2шт.

8

A43160

BEARING LINER

LINER - main brg., narrow (-.010") (Repl. A42483 & A20582)

2шт.

8

A43161

BEARING SET

LINER - main brg., narrow (-.020") (Repl. A42484 & A20585)

2шт.

8

A43162

BEARING LINER

LINER - main brg., narrow (-.030") (Repl. A42485 & A20588)

2шт.

9

A27837

GEAR

- crankshaft

1шт.

10

A62049

OIL SEAL

- crankshaft, front (2-5/8 x 3-5/8 x 29/64")

1шт.

11

A58746

PULLEY - fan drive

1шт.

12

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

2шт.

13

A27903

WASHER

- drive pulley

1шт.

14

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

Drive pulley Hex, 5/8"-18 x 1 1/2", G5

1шт.

15

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

16

A57457

RETAINER

- crankshaft rear oil seal

1шт.

17

A62050

OIL SEAL

- crankshaft, rear (4-11/16 x 5-3/4 x 1/2") (See ref. 21)

1шт.

18

A32830

GASKET

- retainer

1шт.

19

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

20

92-6

LOCK WASHER,3/8"

6шт.

21

A43194

KIT

- crankshaft wear seal (includes ref. 22 & 23)

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft, rear

1шт.

23

NSS

NOT SOLD SEPARAT

SLEEVE - crankshaft wear

1шт.

25

A59040

FLYWHEEL ASSY. - w/o spline (Power Shift) (includes ref. 26)

1шт.

26

A20875

GEAR, RING

GEAR - ring (174 teeth)

1шт.

27

114-621

BOLT

- (5/8 x 1-3/4" N.C. hex) (Gr. 8)

6шт.

28

A20876

FLYWHEEL ASSY. - w/spline (Mechanical Shift)

1шт.

29

A20875

GEAR, RING

GEAR - ring (174 teeth)

1шт.

30

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

"O" RING - flywheel to crankshaft (2-3/4 x 3 x 1/8")

1шт.

31

114-622

X

BOLT - (5/8 x 2" N.F. hex) (Gr. 8)

6шт.
