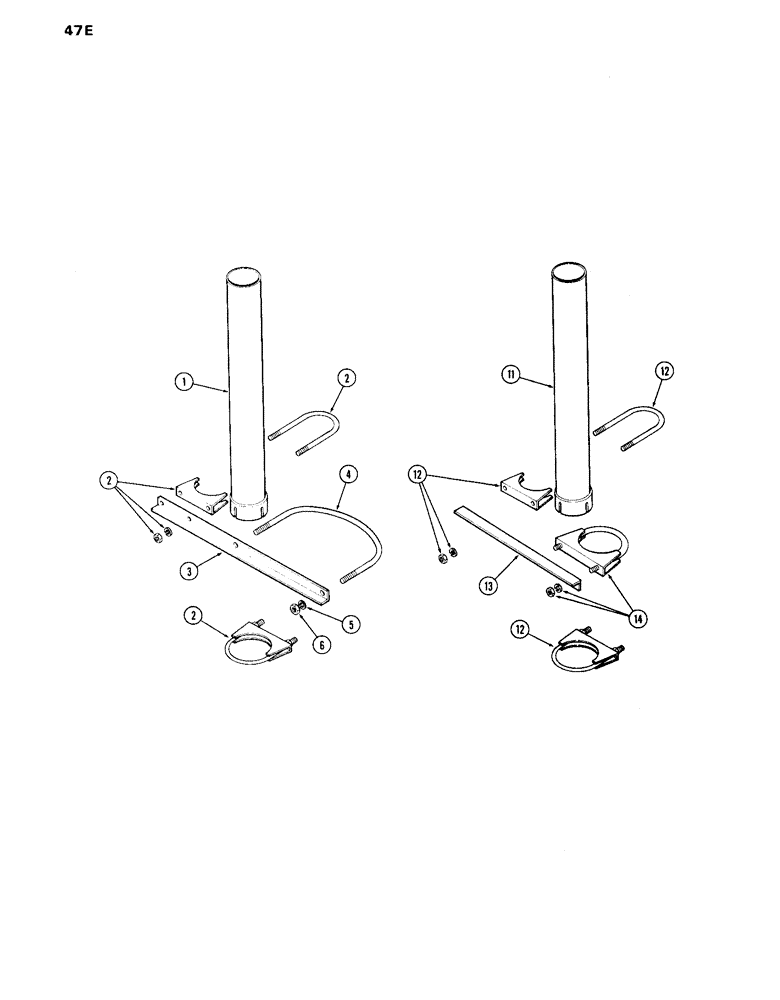

Запчасти Case IH 870 (047E) - AIR INTAKE EXTENSIONS, (301B) SPARK IGNITION ENGINE (02) - ENGINE

A66307

ATTACHMENT - air intake extension (Mach. Item) (used w/oval muffler) (includes ref. 1 - 6)

1шт.

1

A64996

EXTENSION - tube

1шт.

2

A62874

CLAMP

- extension

2шт.

3

A66304

BRACKET

-, Serial Range: extension-muffler

1шт.

4

A66303

CLAMP -, Serial Range: bracket-muffler

1шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

6

129-123

NUT,3/8"-24, G5

2шт.

A64997

ATTACHMENT - air intake extension (Mach. Item) (used w/round muffler) (includes ref. 11 - 14)

1шт.

11

A64996

EXTENSION - air intake tube

1шт.

12

A62874

CLAMP

- extension to bracket & tube

2шт.

13

A64995

BRACKET - air intake, Serial Range: extension-muffler

1шт.

14

A64801

CLAMP

-, Serial Range: bracket-muffler

1шт.
