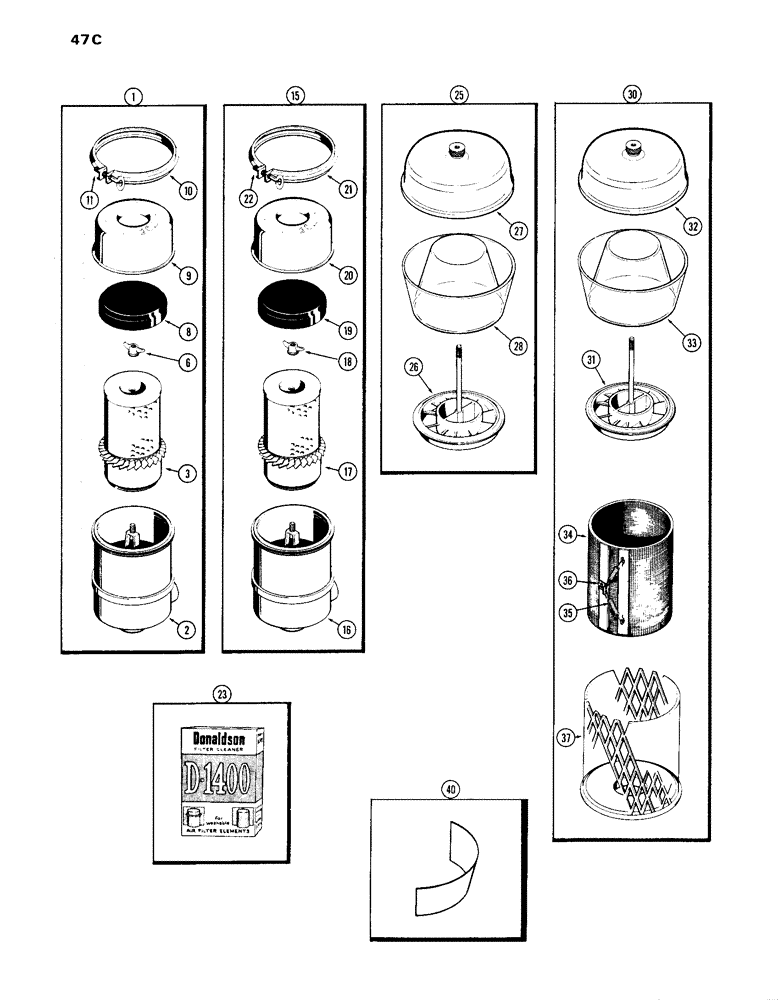

Запчасти Case IH 870 (047C) - AIR CLEANER, (301B) SPARK IGNITION ENGINE (02) - ENGINE

1

A59570

CLEANER

ASSY. - air (16" long) (includes ref. 2, 3, 6, 8, 9, 10 & 11)

1шт.

2

NSS

NOT SOLD SEPARAT

BODY ASSY. - cleaner

1шт.

3

A42224

ELEMENT

ASSY. - cleaner

1шт.

6

F91761

WING NUT

& WASHER ASSY.

1шт.

8

F22312

BAFFLE

- rubber

1шт.

9

F91760

CUP

- cleaner

1шт.

10

F84999

CLAMP,168.28mm

ASSY. - cleaner

1шт.

11

25-224

SQUARE NUT,Sq, 1/4"-20

- 1-1/4" N.C. hex

1шт.

15

A59998

AIR CLEANER

CLEANER ASSY. - air (14" long) (includes ref. 16 - 22)

1шт.

16

NSS

NOT SOLD SEPARAT

BODY - cleaner

1шт.

17

A42274

AIR FILTER

ELEMENT - cleaner

1шт.

18

F91761

WING NUT

& WASHER ASSY.

1шт.

19

F22312

BAFFLE

- rubber

1шт.

20

F91760

CUP

- cleaner

1шт.

21

F84999

CLAMP,168.28mm

- cleaner

1шт.

22

25-224

SQUARE NUT,Sq, 1/4"-20

- 1/4" N.C. hex

1шт.

23

A40910

CLEANER

DETERGENT - air cleaner element

1шт.

25

A64589

PRECLEANER

PRE-CLEANER ASSY. - (1st used trac. ser. no. 8693001) (includes ref. 26, 27 & 28)

1шт.

26

NSS

NOT SOLD SEPARAT

SLEEVE - adapter, pre-cleaner

1шт.

27

73187

COVER

- pre-cleaner

1шт.

28

73186

HOUSING

BODY - pre-cleaner

1шт.

30

A61273

CLEANER

PRE-CLEANER ASSY. (used prior to trac. ser. no. 8693001) (includes ref. 31 - 37)

1шт.

A64589

PRECLEANER

PRE-CLEANER

1шт.

31

NSS

NOT SOLD SEPARAT

SLEEVE - adapter, pre-cleaner

1шт.

32

73187

COVER

- pre-cleaner

1шт.

33

365413R1

BOWL

BODY - pre-cleaner

1шт.

34

F83644

SCREEN

pre-cleaner

1шт.

35

A22780

SPRING

pre-cleaner

2шт.

36

A22781

CLIP

pre-cleaner

1шт.

37

F83643

BODY, pre-cleaner

1шт.

40

321-2739

DECAL - heat protective, pre-cleaner bowl

1шт.
