Запчасти Case IH 870 (044) - WATER MANIFOLD AND THERMOSTAT, (301B) SPARK IGNITION ENGINE (02) - ENGINE

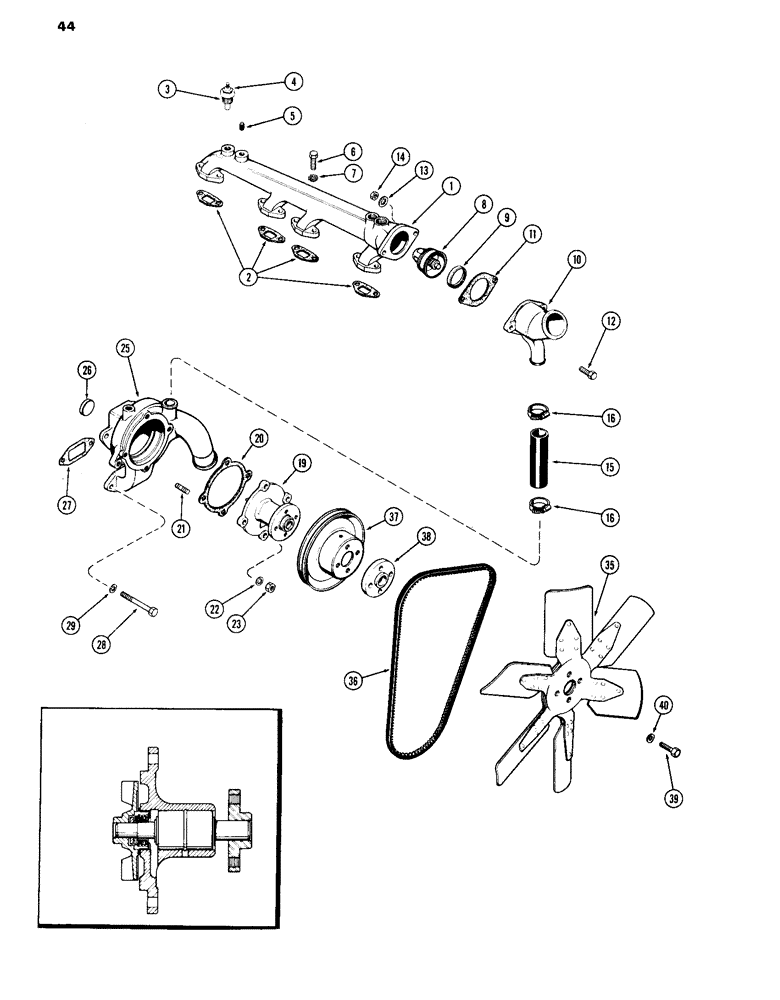

Схема запчастей Case IH 870 - (044) - WATER MANIFOLD AND THERMOSTAT, (301B) SPARK IGNITION ENGINE (02) - ENGINE
27
1
38
4
23
39
19
15
1
37
40
36
3
16
9
20
35
11
26
2
5
16
25
28
29
12
7
14
8
22
13
21
6

Артикул

Название

Примечание

Количество

1

A57995

MANIFOLD

MANIFOLD - water

1шт.

2

A27905

GASKET

GASKET - water manifold

4шт.

3

A61787

TRANSMITTER

UNIT - temperature sending

1шт.

4

129-661

NUT

NUT - (#10 N.F. hex) (Brass)

1шт.

5

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - (1/2" P.T., square head)

1шт.

6

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

BOLT, Hex, 5/16"-18 x 1 1/8", G5

8шт.

7

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

8шт.

8

A28114

THERMOSTAT

THERMOSTAT (includes ref. 9)

1шт.

9

A30954

GASKET

SEAL - thermostat

1шт.

10

A61133

HOUSING - thermostat

1шт.

11

A28113

GASKET

GASKET - thermostat housing

1шт.

12

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

BOLT - (3/8 x 1-1/2" N.C. hex)

2шт.

13

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

14

25-106

NUT,3/8"-16, G5

NUT - (3/8" N.C. hex)

2шт.

15

A58814

HOSE

HOSE - water pump by-pass (1-1/32 x 6-1/2")

1шт.

16

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - by-pass hose (1-3/16" to 1-3/4")

2шт.

19

A62972

PUMP

PUMP ASSY. - water (Replaced A58738)

1шт.

19

1998700C1

REMAN-WATER PUMP

Remanufactured Water Pump

1шт.

19

A48331

CORE-WATER PUMP

Return Number, Water Pump

1шт.

20

A58646

GASKET

GASKET - pump to body, water

1шт.

21

A62234

STUD

STUD - pump to body (3/8" N.C. x 1-5/16"), water

4шт.

22

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, , Water pump Int Tooth, 3/8"

4шт.

23

25-146

JAM NUT,Jam, 3/8"-16, G5

NUT - (3/8" N.C. hex, jam), water pump

4шт.

25

A58779

HOUSING

BODY ASSY. - water pump (includes ref. 26)

1шт.

26

A58568

PLUG,Cup, 1 3/8", Stainless

PLUG - (1-3/8" cup type), water pump

1шт.

27

A58649

GASKET

GASKET - body to block, water pump

1шт.

28

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

BOLT, , Water pump Hex, 3/8"-16 x 1 1/8", G5, Full Thd

4шт.

29

92-6

LOCK WASHER,3/8"

LOCK WASHER, , water pump 3/8"

4шт.

35

A23106

HALF BLADE

FAN, water pump

1шт.

36

A59762

V-BELT,0.69" W x 59.25" L

Fan Drive, Water Pump

1шт.

37

A58744

PULLEY

PULLEY - fan driven, water pump

1шт.

38

A62465

BUSHING

SPACER - fan blade (1-1/4") (1st used eng. ser. no. 2331147) (1-3/8" thickness) water pump

1шт.

38

A61268

BUSHING

SPACER - fan blade (1") (Used prior to eng. ser. no. 2331147) (1-1/8" thickness) water pump

1шт.

39

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

BOLT, (1st used eng. S/N 2331147), water pump Hex, 3/8"-16 x 2 1/4", G5

4шт.

39

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, (Used prior to eng. S/N 2331147) water pump Hex, 3/8"-16 x 2", G5

4шт.

40

92-6

LOCK WASHER,3/8"

LOCK WASHER, , water pump 3/8"

4шт.

Выбрано товаров: 36
