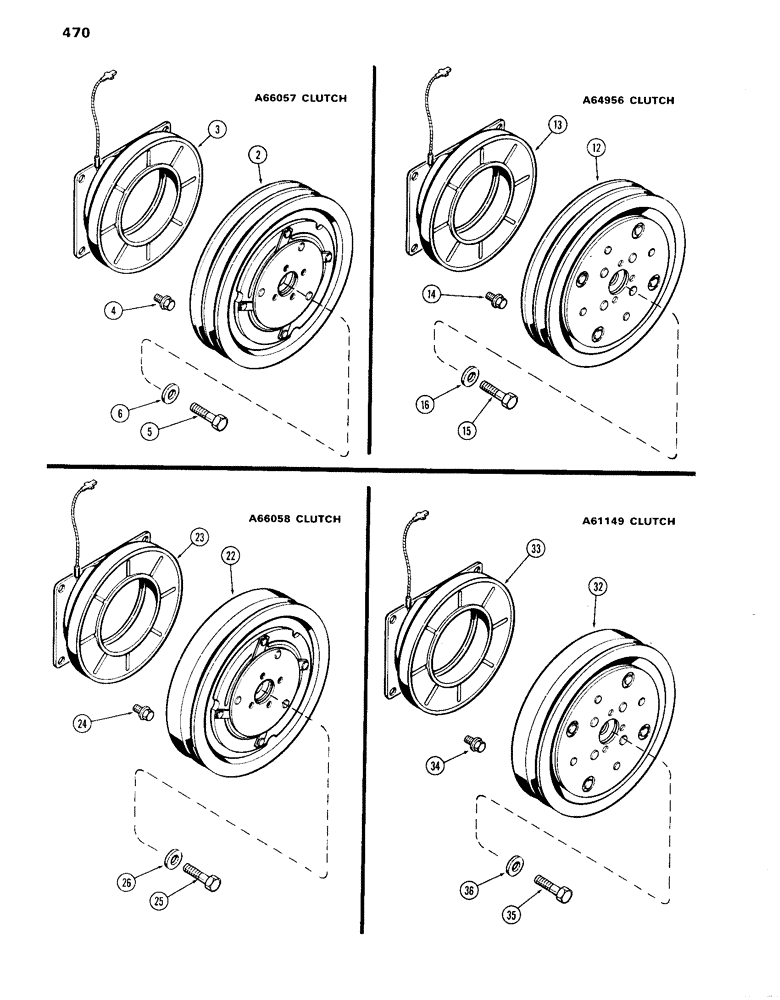

Запчасти Case IH 870 (470) - COMPRESSOR CLUTCH, FOR 1/2 INCH BELT (09) - CHASSIS/ATTACHMENTS

A66057

CLUTCH

ASSY. - (Warner Electric #I-1436-14) (Replaces A64956) (includes ref. 2 - 6)

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY ASSY. - rotor

1шт.

3

A44568

ELECTRIC CLUTCH

FIELD ASSY. - pulley

1шт.

4

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

5

114-100

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

- 5/16 x 1-1/4" N.F. hex

1шт.

6

A27343

BUSHING

SPACER - clutch attaching bolt

1шт.

A64956

CLUTCH

ASSY. - (Warner Electric #I-1405-17) (Order A66057) (includes ref. 12 - 16)

1шт.

12

NSS

NOT SOLD SEPARAT

PULLEY ASSY. - rotor

1шт.

13

A42941

COIL

FIELD ASSY. - pulley (Order A66057)

1шт.

14

113-6

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

4шт.

15

114-100

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

- 5/16 x 1-1/4" N.F. hex

1шт.

16

A27343

BUSHING

SPACER - clutch attaching bolt

1шт.

A66058

CLUTCH

ASSY. - (Warner Electric #I-1436-12) (Replaces A61149) (includes ref. 22 - 26)

1шт.

22

NSS

NOT SOLD SEPARAT

PULLEY ASSY. - rotor, for 11 mm belt

1шт.

23

A44568

ELECTRIC CLUTCH

FIELD ASSY. - pulley, for 11 mm belt

1шт.

24

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

for 11 mm belt Hex Flg, 1/4"-20 x 1/2", Serr

4шт.

25

114-100

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

- 5/16 x 1-1/4" N.F. hex, for 11 mm belt

1шт.

26

A27343

BUSHING

SPACER - clutch attaching bolt, for 11 mm belt

1шт.

A61149

CLUTCH

ASSY. - (Warner Electric #I-1405-14) (Order A66058), for 11 mm belt (includes ref. 32 - 36)

1шт.

32

NSS

NOT SOLD SEPARAT

PULLEY ASSY. - rotor, for 11 mm belt

1шт.

33

A42941

COIL

FIELD ASSY. - pulley (Order A66058), for 11 mm belt

1шт.

34

113-6

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

for 11 mm belt Hex, 1/4"-20 x 3/8", G5, Full Thd

4шт.

35

114-100

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

- 5/16 x 1-1/4" N.F. hex, for 11 mm belt

1шт.

36

A27343

BUSHING

SPACER - clutch attaching bolt, for 11 mm belt

1шт.
