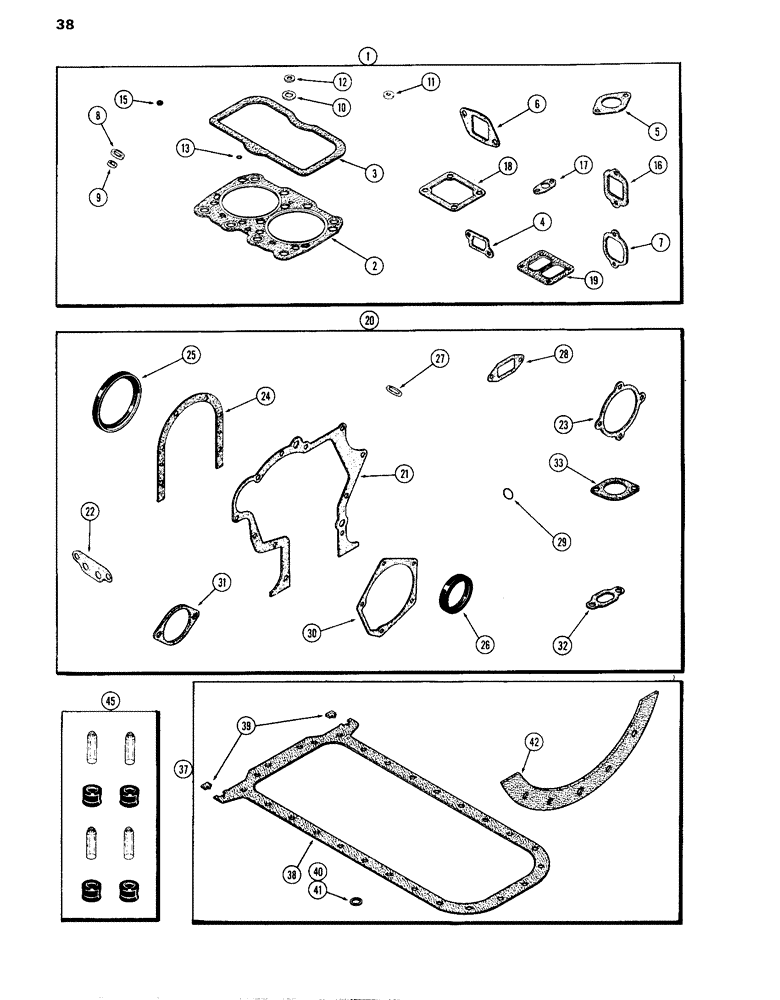

Запчасти Case IH 870 (038) - ENGINE GASKET KITS, (336B) DIESEL ENGINE (02) - ENGINE

1

A44086

GASKET

VALVE GRIND GASKET KIT - (Replaces A43191) (includes ref. 2 - 19)

1шт.

2

A138149

GASKET

- cylinder head (Replaces A64113)

2шт.

3

A65734

CYLINDER HEAD GASKET

- cylinder head cover (Replaces A58928)

2шт.

4

A58637

MANIFOLD GASKET

- water manifold

2шт.

5

G46907

GASKET

- thermostat housing

1шт.

6

A58662

MANIFOLD GASKET

- intake manifold

4шт.

7

A58895

GASKET

- exhaust manifold (turbo-charger only) (steel faced)

4шт.

8

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- injector nozzle

4шт.

9

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon, injector nozzle tip

4шт.

10

A85635

GASKET - breather, Serial Range: tube-cover

2шт.

11

A23684

GASKET

GASKET - valve cover studs

4шт.

12

A34133

GASKET

- breather blow-by tube screw

2шт.

13

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - rocker arm shaft oil tube

2шт.

15

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- intake & exhaust stem

8шт.

16

A58666

MANIFOLD GASKET

- exhaust manifold (w/o turbo) (steel insert faced both sides with asbestos)

4шт.

17

A58892

GASKET,1.59mm Thk

- oil drain tube (turbo only)

1шт.

18

A58910

GASKET

- air intake elbow

1шт.

19

A58899

GASKET,0.45mm Thk

- turbo-charger (not applicable)

2шт.

20

A42096

GASKET

CYLINDER BLOCK GASKET KIT (includes ref. 21 - 33)

1шт.

21

A58612

GASKET

- timing gear cover

1шт.

22

A58756

OIL PAN GASKET SET

- oil filter base

1шт.

23

A58646

GASKET

- water pump body

1шт.

24

A32830

GASKET

- rear seal retainer

1шт.

25

A62050

OIL SEAL

- oil, crankshaft, rear

1шт.

26

A62049

OIL SEAL

- oil, crankshaft, front

1шт.

27

A58613

SEALING WASHER

GASKET - timing window plug

1шт.

28

A58649

GASKET

- water, Serial Range: pump-body

1шт.

29

A64434

O-RING,0.93" ID x 1.142" x 0.106"

"O" RING - lube oil filter base (Not Applicable)

3шт.

30

A58615

GASKET

- fuel pump cover

1шт.

31

A58617

GASKET

- auxiliary drive cover

1шт.

32

A58670

GASKET

- oil cooler water opening

1шт.

33

A58680

OIL PAN GASKET SET

- oil cooler tube to water pump (Not Applicable)

1шт.

37

A43005

GASKET KIT

OIL PAN GASKET KIT (includes ref. 38 - 42)

1шт.

38

NSS

NOT SOLD SEPARAT

GASKET - oil pan (one piece) (Order ref. 37)

1шт.

39

A62402

GASKET

- oil pan, rear corners

2шт.

40

A58608

GASKET

- oil pan drain plug

1шт.

41

A27968

RING

- oil pan drain plug (Not Applicable)

1шт.

42

A57966

GASKET

- clutch hsg. (lower)

1шт.

45

M20614

SEAL KIT

SEAL KIT - valve (Set of 4)

2шт.
