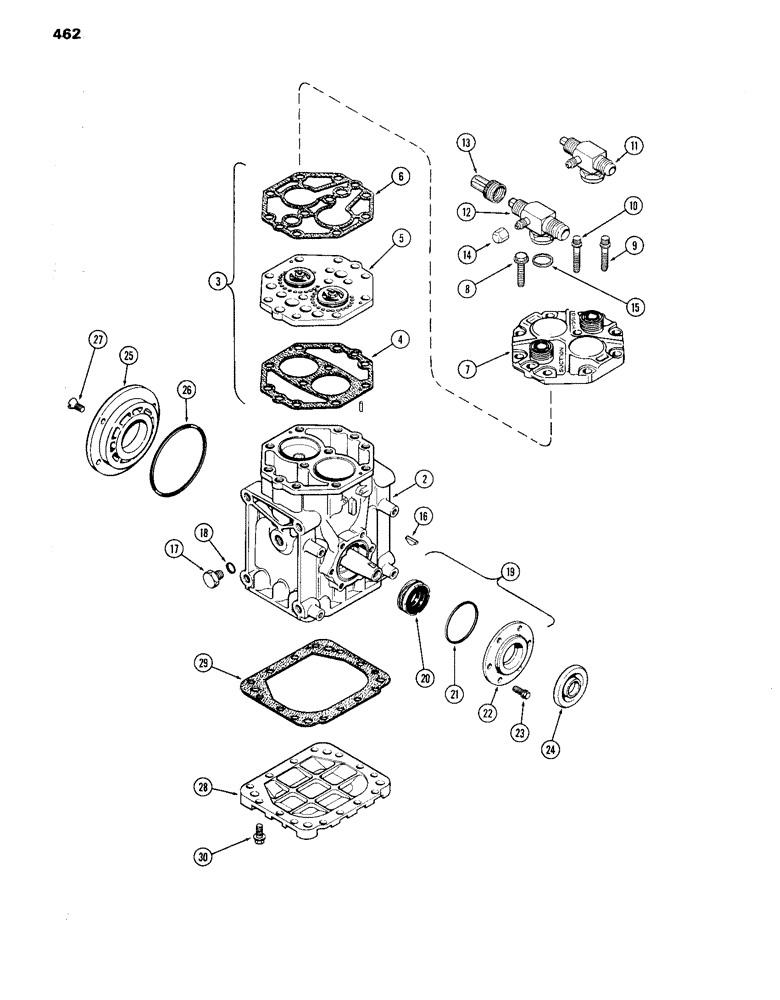

Запчасти Case IH 870 (462) - YORK COMPRESSOR (09) - CHASSIS/ATTACHMENTS

A141060

COMPRESSOR

COMPRESSOR ASSY. - (York #ER210L-20126T) (Replaces A64810) (includes ref. 2 - 30)

1шт.

417888C93

AIRCOND. COMPRESSOR

Compressor Assy., A/C

1шт.

1924004C2

REMAN-A/C COMPRESSOR

Remanufactured Compressor

1шт.

1924005C1

CORE-A/C COMPRESSOR

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

CRANKCASE ASSY. (includes ref. 3 - 6)

1шт.

3

A45420

VALVE

KIT - valve plate (includes ref. 4, 5 & 6)

1шт.

4

NSS

NOT SOLD SEPARAT

GASKET - valve plate to crankcases (See A42964)

1шт.

Included w/ GASKET KIT, A42964

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE - valve (Order A45420)

1шт.

6

NSS

NOT SOLD SEPARAT

GASKET - cyl. hd. to valve plate (See A42964)

1шт.

Included w/ GASKET KIT, A42964

1шт.

7

NSS

NOT SOLD SEPARAT

CYLINDER HEAD

1шт.

8

A42949

FLANGE BOLT

BOLT - 5/16 x 1-3/8" N.C. hex, washer hd.

8шт.

9

A42947

SCREW,5/16" - 18 x 1.375", Grade 6, Steel

SPARE PART SCREW - 5/16 x 1-3/8" N.C. Ferry hd., 12 pt. cap

2шт.

10

A42948

12 PT SCREW,5/16" - 18 x 1.516", Gr 6

SCREW - 5/16 x 1-17/32" N.C. Ferry hd., 12 pt. cap

2шт.

11

A42936

VALVE

VALVE ASSY. - roto-lock, discharge, 1/2" port

1шт.

12

A42937

VALVE

VALVE ASSY. - roto-lock, suction, 5/8" port (includes ref. 13 & 14)

1шт.

13

A42944

CAP

CAP - sleeve, valve stem

2шт.

14

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

CAP - valve stem

2шт.

15

A42938

GASKET

GASKET - roto-lock to cyl. hd.

2шт.

16

A42939

KEY

KEY - crankshaft, No. 6 non-rok

1шт.

17

114-210

BOLT,Hex, 3/8" - 24 x 1/2", Gr 5, Full Thd

BOLT - 3/8 x 1/2" N.F. hex, crankcase oil plug

2шт.

18

NSS

NOT SOLD SEPARAT

"O" RING - filter & level plug (Order A42964)

2шт.

Included w/ GASKET KIT, A42964

1шт.

19

A42960

SEAL

SEAL KIT - front crankcase (includes ref. 20, 21 & 22)

1шт.

20

NSS

NOT SOLD SEPARAT

SEAL - crankcase

1шт.

21

NSS

NOT SOLD SEPARAT

"O" RING - (See A42964)

1шт.

Included w/ GASKET KIT, A42964

1шт.

22

NSS

NOT SOLD SEPARAT

PLATE - seal retaining

1шт.

23

A42961

CAPTIVE WASHER SCREW,Hex, #10 - 24 x 0.469", Full Thd

BOLT - #10-24 x 7/16" hex, washer hd.

6шт.

24

A42965

CAP

CAP - dust, crankcase oil seal

1шт.

25

NSS

NOT SOLD SEPARAT

HOUSING - crankcase, rear

1шт.

26

NSS

NOT SOLD SEPARAT

GASKET - rear housing (Order A42964) (includes ref. 27)

1шт.

Included w/ GASKET KIT, A42964

1шт.

27

NSS

NOT SOLD SEPARAT

SCREW - rear, Serial Range: hsg.-crankcase

4шт.

28

NSS

NOT SOLD SEPARAT

PLATE - crankcase base

1шт.

29

NSS

NOT SOLD SEPARAT

GASKET - base plate (Order A42964)

1шт.

Included w/ GASKET KIT, A42964

1шт.

30

NSS

NOT SOLD SEPARAT

BOLT - base, Serial Range: plate-crankcase

12шт.

A42964

GASKET

GASKET KIT- complete overhaul, Includes: Ref. 4, 6, 18, 21, 26 and 29

1шт.
