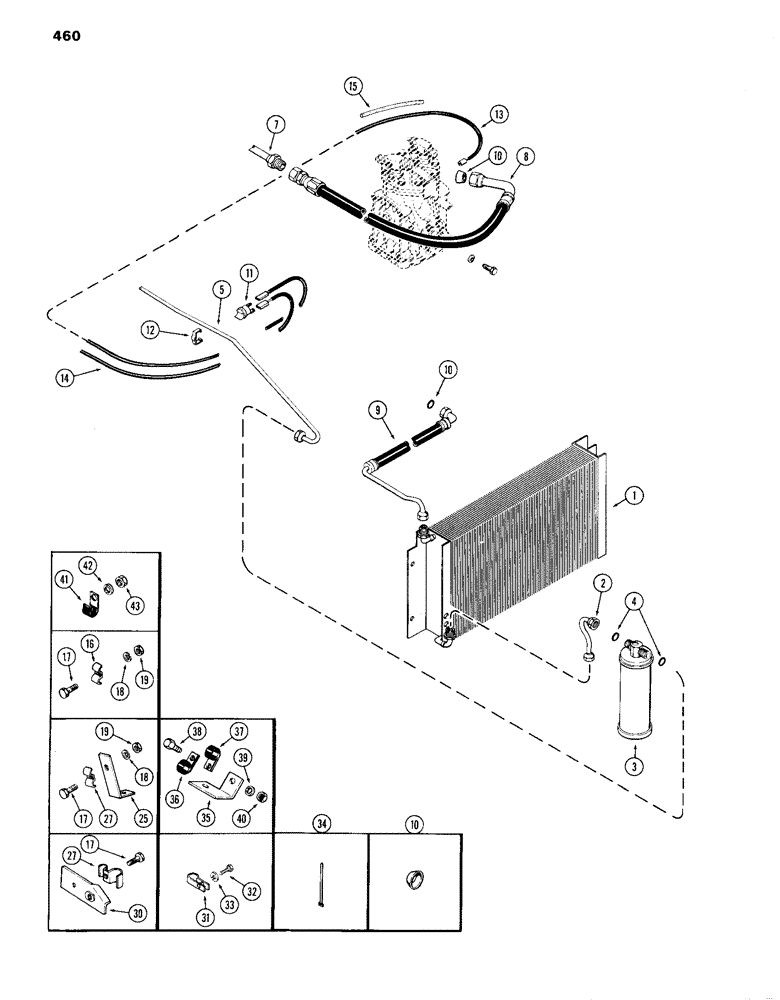

Запчасти Case IH 870 (460) - AIR CONDITIONER, HOSES AND TUBES, WITHOUT SAFETY SWITCH, USED PRIOR TO TRACTOR SERIAL NUMBER 8731899 (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
A61687
COIL
- condenser
1шт.
2
A61690
TUBE
-, Serial Range: condenser-receiver
1шт.
3
A61688
TANK
RECEIVER - dryer
1шт.
4
A61198
O-RING,0.07" Thk x 0.301" ID, -11
"O" RING - 5/16 x 7/16 x 1/16"
4шт.
5
A61692
TUBE
- receiver, Serial Range: dryer-cab
1шт.
7
A62226
TUBE
- cab to compressor hose
1шт.
8
A61207
HOSE
-, Serial Range: tube-compressor
1шт.
9
A61208
HOSE ASSY.
HOSE -, Serial Range: compressor-condenser
1шт.
10
222-993
GASKET,3/8 Tube, Fl, Copper
1шт.
10
222-994
GASKET,1/2 Tube, Fl, Copper
- flare, copper (for 1/2" tube)
1шт.
10
222-995
SEALING WASHER,15.88mm ID
- flare, copper (for 5/8" tube)
1шт.
11
A61291
THERMOSTAT
- high temperature
1шт.
12
A61789
CLAMP
- thermostat
1шт.
13
A61755
ELECTRICAL WIRE
WIRE - thermostat to compressor clutch
1шт.
14
A42931
ELECTRICAL WIRE
WIRE - thermostat to cab upper harness
1шт.
15
A62053
HARNESS
LOOM - wire
1шт.
16
A61199
CLIP
- tube
1шт.
17
13-48
BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
2шт.
18
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
19
25-104
NUT,1/4"-20, G5
2шт.
25
A61200
BRACKET - air cond. tube mtg.
1шт.
27
A61704
CLAMP - tubes
2шт.
30
A64397
BRACKET
- air cond. tube mtg. (Replaces A62254)
1шт.
31
A7922
CLIP
- clutch lead wire
1шт.
32
13-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
1шт.
33
92-6
LOCK WASHER,3/8"
1шт.
34
L11541
CABLE TIE,203.2mm L, Nylon
STRAP - wires to tubes & water trap, R.H.
4шт.
35
A62206
BRACKET - air cond. tube mtg.
1шт.
36
49885
CLAMP
CLIP - tube, 5/8"
1шт.
37
49845
CLAMP
CLIP - tube, 3/8"
2шт.
38
13-614
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd
1шт.
39
92-6
LOCK WASHER,3/8"
1шт.
40
25-106
NUT,3/8"-16, G5
- 3/8" N.C. hex
1шт.
41
A59718
CLAMP
CLIP - water trap tube, L.H.
1шт.
42
92-6
LOCK WASHER,3/8"
(attach to step bolt) 3/8"
1шт.
43
25-106
NUT,3/8"-16, G5
- 3/8" N.C. hex (attach to step bolt)
1шт.
Выбрано товаров: 36
