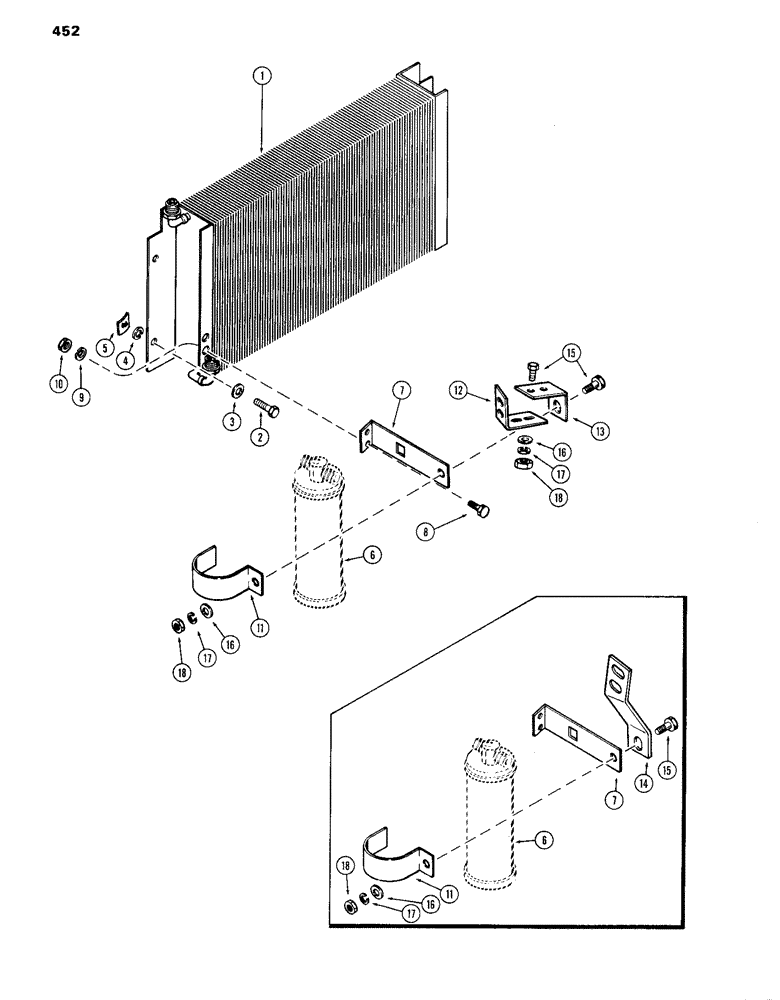

Запчасти Case IH 870 (452) - AIR CONDITIONER, CONDENSER AND RECEIVER DRYER (09) - CHASSIS/ATTACHMENTS

1

A61687

COIL

- condenser

1шт.

2

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

3

95-4

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

4шт.

4

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

5

131-611

NUT,Ret, 1/4"-20

- 1/4" N.C. Tinnerman

4шт.

6

A61688

TANK

RECEIVER - dryer

1шт.

7

A61689

BRACKET - receiver dryer

1шт.

8

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

9

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

10

131-620

SPRING NUT,J, 1/4" - 20, 0.025" Thk

- 1/4" N.C. Tinnerman

2шт.

11

A61193

CLAMP

- receiver dryer

1шт.

12

A62894

BRACKET

- receiver dryer to grill, upper (used with fiberglass & cast grills)

1шт.

13

A62893

BRACKET

- receiver dryer to grill, lower (used with fiberglass & cast grills)

1шт.

14

A61877

BRACKET

- receiver dryer to grill (cast only)

1шт.

15

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

16

95-5

WASHER,3/8" x 7/8" x .083"

- 3/8 x 7/8 x 14 ga.

3шт.

17

92-5

LOCK WASHER,5/16"

3шт.

18

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

3шт.
