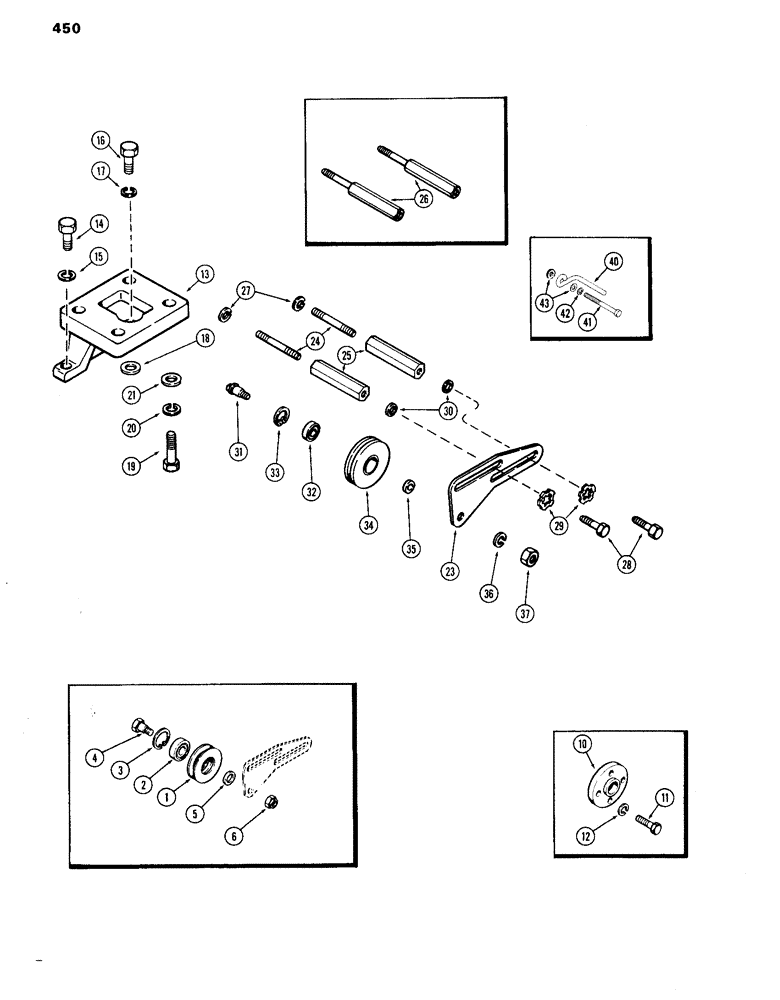

Запчасти Case IH 870 (450) - IDLER PULLEY KIT, 11MM PULLEY, USED TRACTOR SERIAL NUMBERS 8686964 TO 8693001 (09) - CHASSIS/ATTACHMENTS

A42991

PULLEY

KIT - idler pulley w/heavy duty bearing (Replaces pulley A64203 and bearing A62965) (includes ref. 1 - 6)

1шт.

1

A42992

PULLEY

- idler

1шт.

2

A65781

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - idler, heavy duty

1шт.

3

T28736

SNAP RING,1.562", Int, #156

RING, snap, , brg. 1.562", Int, #156

1шт.

4

A65782

PIN

- idler pulley

1шт.

5

A65783

SPACER

- pulley

1шт.

6

131-1145

JAM NUT,5/8" - 18

NUT - 9/16" N.F. hex, jam

1шт.

A64202

KIT

- air cond. compressor mtg. (used to convert to one piece mtg. brkt. on units w/11 mm belts) (includes ref. 10 - 21, 23 - 37 and 40 - 43)

1шт.

10

A62465

BUSHING

SPACER - fan, 1-1/4"

1шт.

11

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" N.C. hex

4шт.

12

92-6

LOCK WASHER,3/8"

4шт.

13

A64147

BRACKET

- compressor mounting

1шт.

14

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

2шт.

15

92-8

LOCK WASHER,1/2"

2шт.

16

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

1шт.

17

92-7

LOCK WASHER,7/16"

1шт.

18

195-2065

WASHER,33/64" x 7/8" x .049"

- 7/8 x 33/64 x 18 ga.

1шт.

19

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

4шт.

20

92-6

LOCK WASHER,3/8"

4шт.

21

95-6

WASHER,3/8"

- 1/2 x 1 x 5/64"

4шт.

23

A62969

LARGE PLATE

PLATE - idler adjusting

1шт.

24

A65667

STUD

- mounting post

2шт.

25

A65668

MOUNTING PARTS

POST - mounting

2шт.

26

A62970

POST

- mounting (Order A65667 & A65668)

2шт.

27

92-6

LOCK WASHER,3/8"

2шт.

28

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

29

193-46

LOCK WASHER,Ext-Int Tooth, 3/8"

WASHER - Shakeproof, 3/8" int./ext.

2шт.

30

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16"

1шт.

31

A62967

PIN

- idler pulley

1шт.

32

A62965

BALL BEARING,0.3937" ID x 1.0236" OD x 0.315"

BEARING - idler pulley (Order A42991 kit)

1шт.

33

A62966

SNAP RING,1.02", Int, #102

RING, snap, , pulley brg 1.02", Int, #102

1шт.

34

A64203

PULLEY

- idler (11 mm)

1шт.

35

A62968

SPACER

- idler pulley

1шт.

36

192-110

LOCK WASHER,5/16"

WASHER - lock, 5/16"

1шт.

37

25-145

JAM NUT,Jam, 5/16"-18, G5

- 5/16" N.C. hex, jam

1шт.

A65719

KIT

- rub bar (includes ref. 40 - 43)

1шт.

40

A65718

GUARD

BAR - rub

1шт.

41

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

(Used w/Diesel) Hex, 3/8"-16 x 4", G5

1шт.

41

113-2201

BOLT,Locking, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex, Nylok (used w/Gas)

1шт.

42

92-6

LOCK WASHER,3/8"

1шт.

43

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

2шт.
