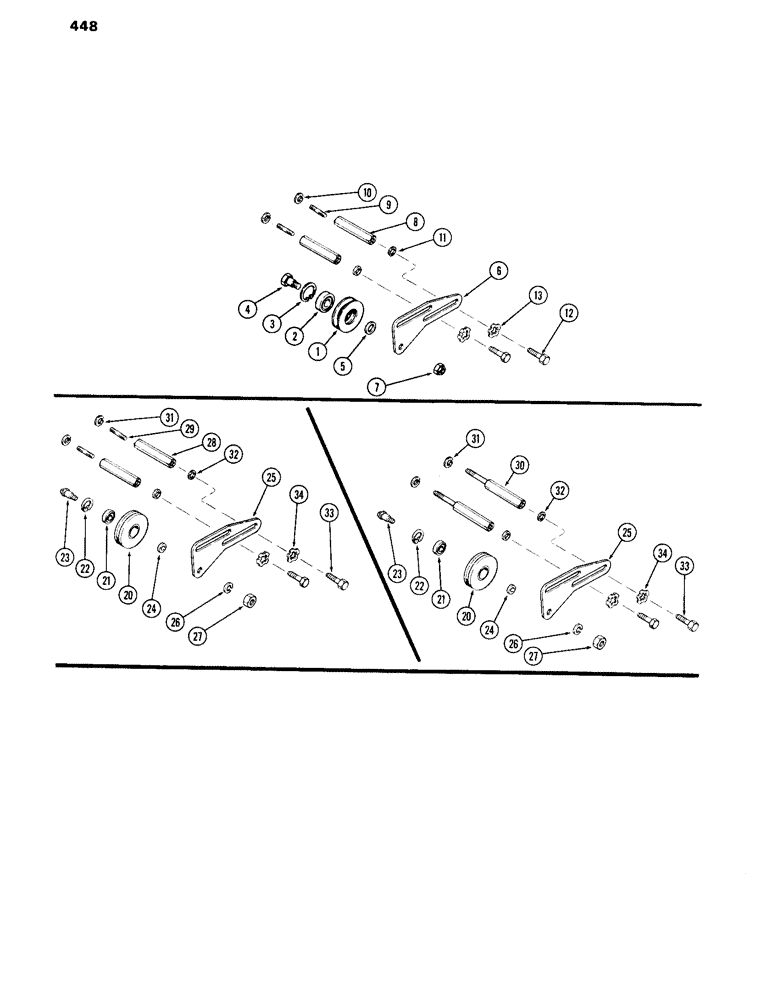

Запчасти Case IH 870 (448) - IDLER PULLEY KIT, 1/2 INCH PULLEY, FIRST USED TRACTOR SERIAL NUMBER 8707322 (09) - CHASSIS/ATTACHMENTS

A66070

KIT

IDLER KIT - idler pulley w/heavy duty bearing

1шт.

1

A65780

PULLEY

- idler, compressor drive belt

1шт.

2

A65781

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - pulley, heavy duty

1шт.

3

T28736

SNAP RING,1.562", Int, #156

RING, snap, , brg 1.562", Int, #156

1шт.

4

A65782

PIN

- idler pulley, 9/16" N.F.

1шт.

5

A65783

SPACER

- idler pulley

1шт.

6

A65784

PLATE

- idler adjusting

1шт.

7

131-1145

JAM NUT,5/8" - 18

NUT - 9/16" N.F. hex, jam

1шт.

8

A65668

MOUNTING PARTS

POST - idler mounting

2шт.

9

A65667

STUD

- post

2шт.

10

92-6

LOCK WASHER,3/8"

2шт.

11

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16"

8шт.

12

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

13

193-46

LOCK WASHER,Ext-Int Tooth, 3/8"

WASHER - Shakeproof, 3/8" int./ext.

2шт.

20

A62964

PROTECTOR

PULLEY - idler compression drive belt, 1/2'' [tractor s/n 8693001 - 8707322]

1шт.

21

A62965

BALL BEARING,0.3937" ID x 1.0236" OD x 0.315"

BEARING - idler pulley (Order A42991 kit) (See Pg. 433) 1/2'' [tractor s/n 8693001 - 8707322]

1шт.

22

A62966

SNAP RING,1.02", Int, #102

RING, snap, , brg, idler pulleys - 1/2", used tractor s/n 8693001 to 8707322 1.02", Int, #102

1шт.

23

A62967

PIN

- idler pulley, 5/16" N.C., 1/2'' [tractor s/n 8693001 - 8707322]

1шт.

24

A62968

SPACER

- idler pulley, 1/2'' [tractor s/n 8693001 - 8707322]

1шт.

25

A62969

LARGE PLATE

PLATE - idler adjusting, 1/2'' pulleys [tractor s/n 8693001 - 8707322]

1шт.

26

192-110

LOCK WASHER,5/16"

WASHER - lock, , idler pulleys - 1/2'' [tractor s/n 8693001 - 8707322] 5/16"

1шт.

27

25-145

JAM NUT,Jam, 5/16"-18, G5

- 5/16" N.C. hex, jam, idler pulleys 1/2'' [tractor s/n 8693001 - 8707322]

1шт.

28

A65668

MOUNTING PARTS

POST - idler mounting, pulleys 1/2'' [tractor s/n 8693001 - 8707322]

2шт.

29

A65667

STUD

- mounting post, idler pulleys 1/2'' [tractor s/n 8693001 - 8707322]

2шт.

30

A62970

POST

- idler plate mounting (Order A65667 & A65668) pulleys 1/2'' [tractor s/n 8693001 - 8707322]

2шт.

31

92-6

LOCK WASHER,3/8"

idler pulleys 1/2'' [tractor s/n 8693001 - 8707322] 3/8"

2шт.

32

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16", idler pulleys 1/2'' [tractor s/n 8693001 - 8707322]

8шт.

33

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Idler pulleys 1/2'' [tractor S/N 8693001 - 8707322] Hex, 3/8"-16 x 1 1/8", G5, Full Thd

2шт.

34

193-46

LOCK WASHER,Ext-Int Tooth, 3/8"

WASHER - Shakeproof, 3/8" int./ext., idler pulleys 1/2'' [tractor s/n 8693001 - 8707322]

2шт.
