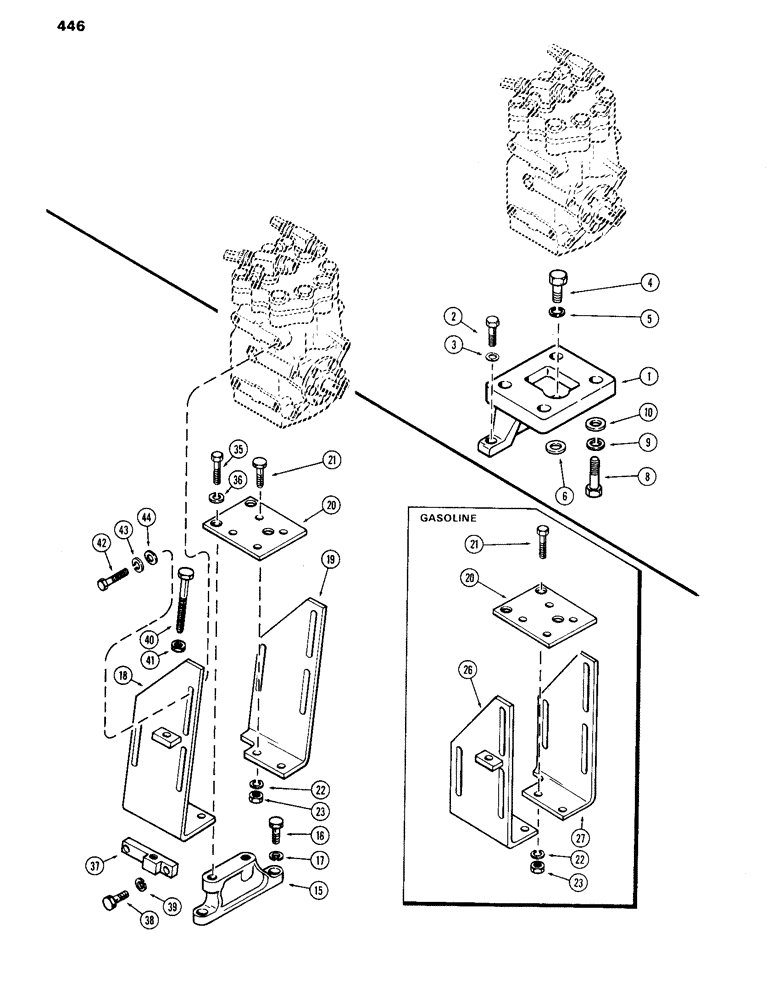

Запчасти Case IH 870 (446) - COMPRESSOR MOUNTING, FIRST USED TRACTOR SERIAL NUMBER 8686964 (09) - CHASSIS/ATTACHMENTS

1

A64147

BRACKET

- compressor mounting (Gas & Diesel)

1шт.

2

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

2шт.

3

92-8

LOCK WASHER,1/2"

2шт.

4

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

1шт.

5

92-7

LOCK WASHER,7/16"

1шт.

6

195-2065

WASHER,33/64" x 7/8" x .049"

- 7/8 x 33/64 x 18 ga.

1шт.

6

A57090

WASHER

- 21/32 x 1-1/8 x 1/64"

1шт.

8

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

4шт.

9

92-6

LOCK WASHER,3/8"

4шт.

10

95-6

WASHER,3/8"

- 1/2 x 1 x 5/64"

4шт.

15

A61155

BRACKET

SUPPORT - bracket (See A64202 Conversion Kit)

1шт.

16

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

2шт.

17

92-8

LOCK WASHER,1/2"

2шт.

18

A61749

BRACKET - compressor mounting R.H. (Diesel) (See A64202 Conversion Kit)

1шт.

19

A61751

BRACKET - compressor mounting, L.H. (Diesel) (See A64202 Conversion Kit)

1шт.

20

A61743

PLATE - bracket adjusting (See A64202 Conversion Kit)

1шт.

21

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

22

92-6

LOCK WASHER,3/8"

4шт.

23

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

4шт.

26

A61744

BRACKET - compressor mounting, R.H. (Gas) (See A64202 Conversion Kit)

1шт.

27

A61745

BRACKET - compressor mounting, L.H. (Gas) (See A64202 Conversion Kit)

1шт.

35

13-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

3шт.

36

92-7

LOCK WASHER,7/16"

3шт.

37

A61153

BLOCK - compressor adjusting (See A64202 Conversion Kit)

2шт.

38

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

39

92-6

LOCK WASHER,3/8"

4шт.

40

A61154

BOLT - 3/8 x 4-1/4" N.C. hex

2шт.

41

25-146

JAM NUT,Jam, 3/8"-16, G5

- 3/8" N.C. hex, jam

2шт.

42

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

43

92-6

LOCK WASHER,3/8"

2шт.

44

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

2шт.

A64202

KIT

- air cond. compressor mtg. (used to convert to one piece mtg. brkt. (See Figure 450)

1шт.
