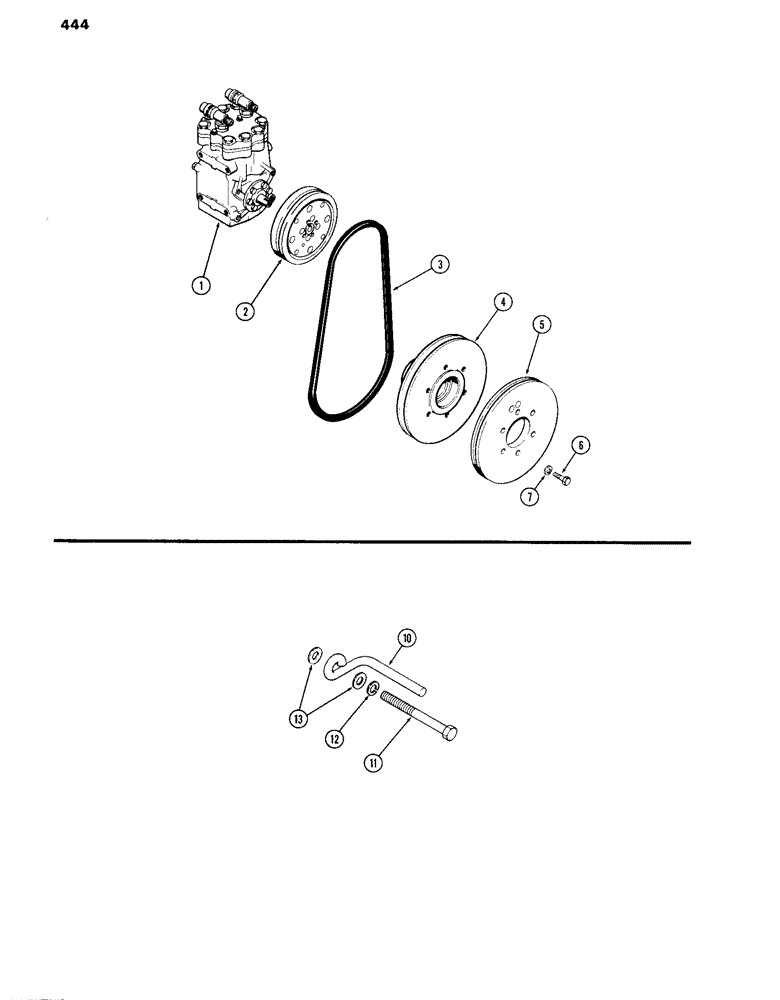

Запчасти Case IH 870 (444) - COMPRESSOR CLUTCH DRIVE (09) - CHASSIS/ATTACHMENTS

1

NSS

NOT SOLD SEPARAT

COMPRESSOR ASSY. - (See Figures (462 - 468)

1шт.

2

NSS

NOT SOLD SEPARAT

CLUTCH - compressor drive (See Figure 470)

1шт.

3

A65717

V-BELT,0.50" W x 72.80" L

Compressor Drive, Replaces A62962 0.50" W x 72.80" L

1шт.

3

A62962

V-BELT,0.50" W x 72.80" L

V-BELT, , Compressor Drive, Order A65717, Used Tractor Serial Nos. 8693001 to 8705614 0.50" W x 72.80" L

1шт.

3

A65692

BELT,72.83" L

Compressor Drive, Replaces A61158, Used Tractor Serial Nos. 8686964 to 8693001 72.83" L

1шт.

4

A58746

PULLEY - crankshaft

1шт.

5

A62960

PULLEY - compressor drive, 1/2"

1шт.

5

A61156

PULLEY - compressor drive, 11 mm

1шт.

6

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex

6шт.

7

92-6

LOCK WASHER,3/8"

6шт.

A65719

KIT

- rub bar, drive belt (includes ref. 10 - 13)

1шт.

10

A65718

GUARD

BAR - rub, drive belt, kit

1шт.

11

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

(Used w/Diesel), rub bar kit Hex, 3/8"-16 x 4", G5

1шт.

11

113-2201

BOLT,Locking, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex (used w/Gas), rub bar kit

1шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Rub bar kit 1/2"

1шт.

13

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64", rub bar kit

2шт.
