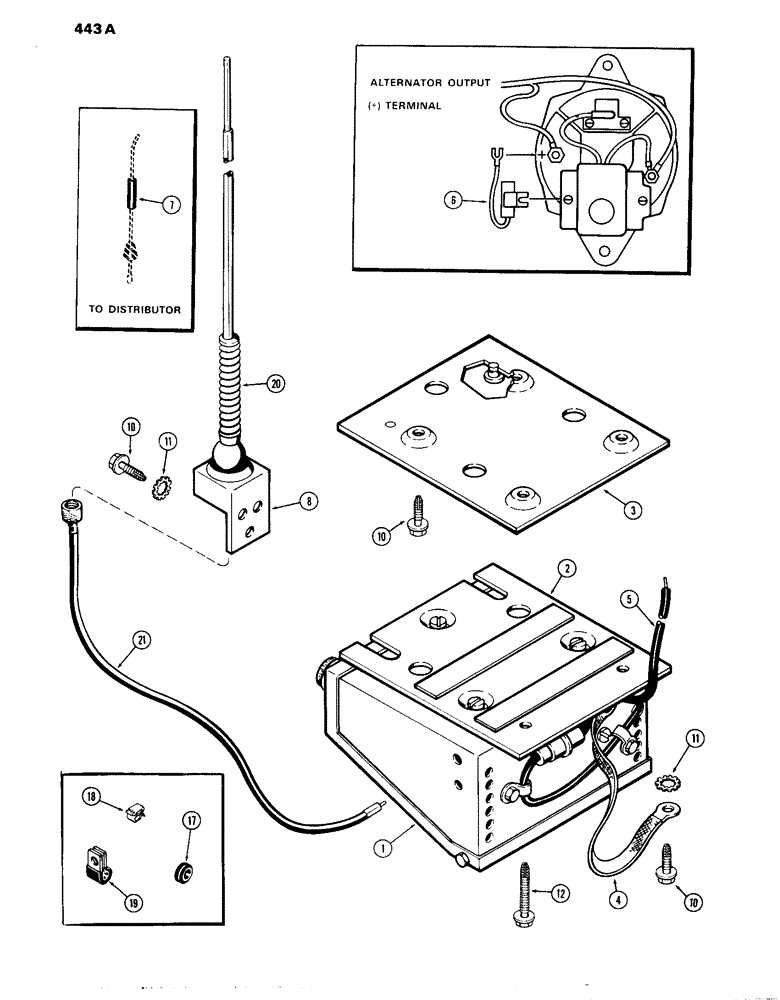

Запчасти Case IH 870 (443A) - CAB, RADIO (09) - CHASSIS/ATTACHMENTS

A62456

RADIO

KIT - radio, cab (for complete installation also order 1-A62457 antenna kit) (includes ref. 1 - 8, 10 - 12 and 17 - 19)

1шт.

1

NSS

NOT SOLD SEPARAT

RADIO - w/speaker

1шт.

2

NSS

NOT SOLD SEPARAT

PLATE - radio mounting, w/bolts

1шт.

3

NSS

NOT SOLD SEPARAT

PLATE - roof mounting adapter

1шт.

4

NSS

NOT SOLD SEPARAT

STRAP - ground

1шт.

5

NSS

NOT SOLD SEPARAT

WIRE - lead in (hot) (60")

1шт.

6

NSS

NOT SOLD SEPARAT

CAPACITOR - alternator

1шт.

7

NSS

NOT SOLD SEPARAT

SUPPRESSOR - distributor static (Gas only)

1шт.

8

NSS

NOT SOLD SEPARAT

BRACKET - antenna mounting

1шт.

NSS

NOT SOLD SEPARAT

PADS - shock, rubber

4шт.

10

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - Shakeproof, indent. hex. washer hd. self-tap (1/4 x 1/2")

6шт.

11

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - Shakeproof, 1/4" int./ext.

4шт.

12

187-1082

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1"

SCREW - Shakeproof indent. hex, washer hd. (self-tap) (1/4 x 1")

2шт.

17

A23870

GROMMET

- antenna lead thru frame

1шт.

18

A62079

CLIP

- radio wire

5шт.

19

A20541

CLIP

- antenna, Serial Range: wire-headliner

6шт.

A62457

ANTENNA

KIT (includes ref. 20 & 21)

1шт.

20

NSS

NOT SOLD SEPARAT

ANTENNA - whip

1шт.

21

NSS

NOT SOLD SEPARAT

CABLE - lead-in, 84" long

1шт.
