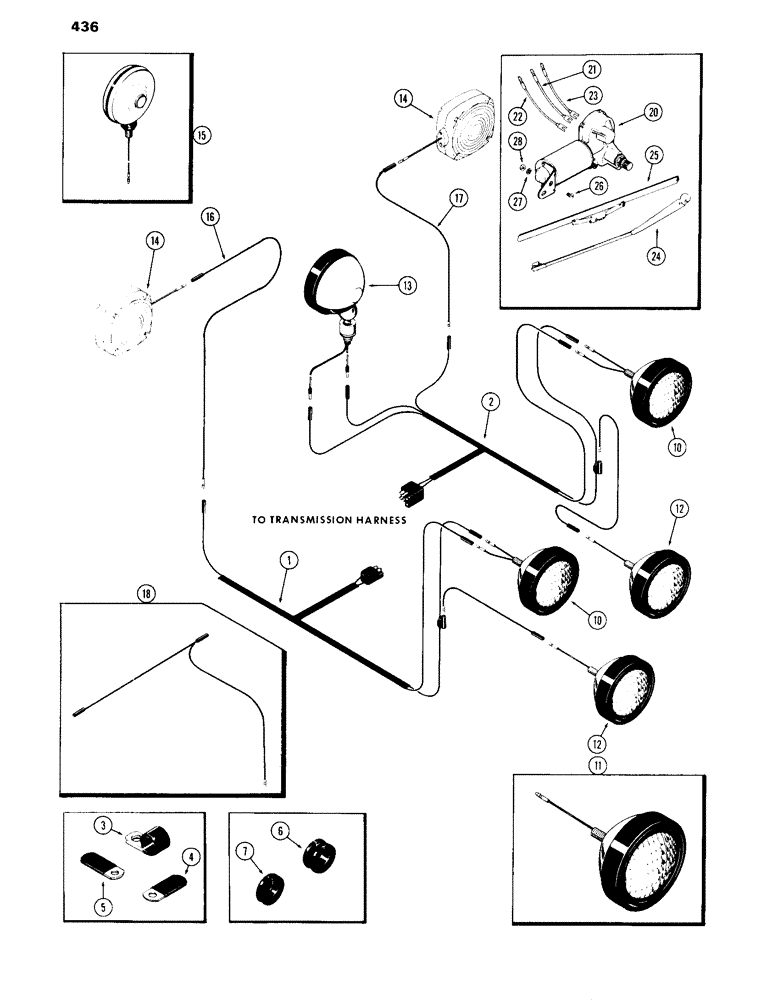

Запчасти Case IH 870 (436) - CAB, ELECTRICAL EQUIPMENT AND WIRING, FENDER (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
A62414
HARNESS
- fender wire, R.H.
1шт.
2
A61146
HARNESS
- fender wire, L.H.
1шт.
3
NLS
NO LONGER SERVICED
CLIP - wire harness
4шт.
4
A22880
CLIP
- fender harness
2шт.
5
A37179
CLIP
- fender harness
2шт.
6
A31076
GROMMET
- cab fender & frame
3шт.
7
A61145
GROMMET,1/4" ID x 3/4" Groove Dia, Str Cut
- cab front frame, head lamp wires
2шт.
10
A64498
LAMP
- front flood & driving (See Figure 126) (1st used tractor ser. no. 8693001)
2шт.
11
A59701
LAMP
- front driving (See Figure 126) (used prior to tractor ser. no. 8693001)
2шт.
12
A59723
LAMP
- front cultivator (See Figure 128)
2шт.
13
A59703
LAMP
- front flood & tail (See Page 131)
1шт.
14
NSS
NOT SOLD SEPARAT
LAMP - flasher (1st used trac. ser. no. 8693001) (Order A44201 from Figure 122)
2шт.
15
A34853
LAMP
- flasher (used prior to tractor ser. no. 8693001) (See Figure 122)
2шт.
16
F63584
CABLE
WIRE - flasher, R.H. (110" dark brown) (1st used cab ser. no. 7821251)
1шт.
17
F63585
CABLE
WIRE - flasher, L.H. (60" tan w/white) (1st used cab ser. no. 7821251)
1шт.
18
F63368
ELECTRICAL WIRE
WIRE - flasher to harness (used prior to cab ser. no. 7821251)
1шт.
A42692
MOTOR
ASSY. - windshield wiper (includes ref. 20 - 23)
1шт.
20
NSS
NOT SOLD SEPARAT
MOTOR - windshield wiper
1шт.
21
A42693
ELECTRICAL WIRE
WIRE - motor, green, windshield wiper
1шт.
22
A42694
ELECTRICAL WIRE
WIRE - motor, blue, windshield wiper
1шт.
23
A42695
ELECTRICAL WIRE
WIRE - motor, orange, windshield wiper
1шт.
24
T41946
ARM
- windshield wiper
1шт.
25
A42580
WIPER BLADE,203.2mm L
BLADE - windshield wiper
1шт.
26
187-1054
SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"
SCREW - #10-24 x 1/2" rd. hd. self-tapping, windshield wiper
1шт.
27
193-70
LOCK WASHER,Ext-Int Tooth, #10
WASHER, LOCK, , Windshield wiper Ext-Int Tooth, #10
1шт.
28
129-17
NUT,Hex, #10 - 24
NUT - #10 N.C. hex, windshield wiper
1шт.
Выбрано товаров: 26
