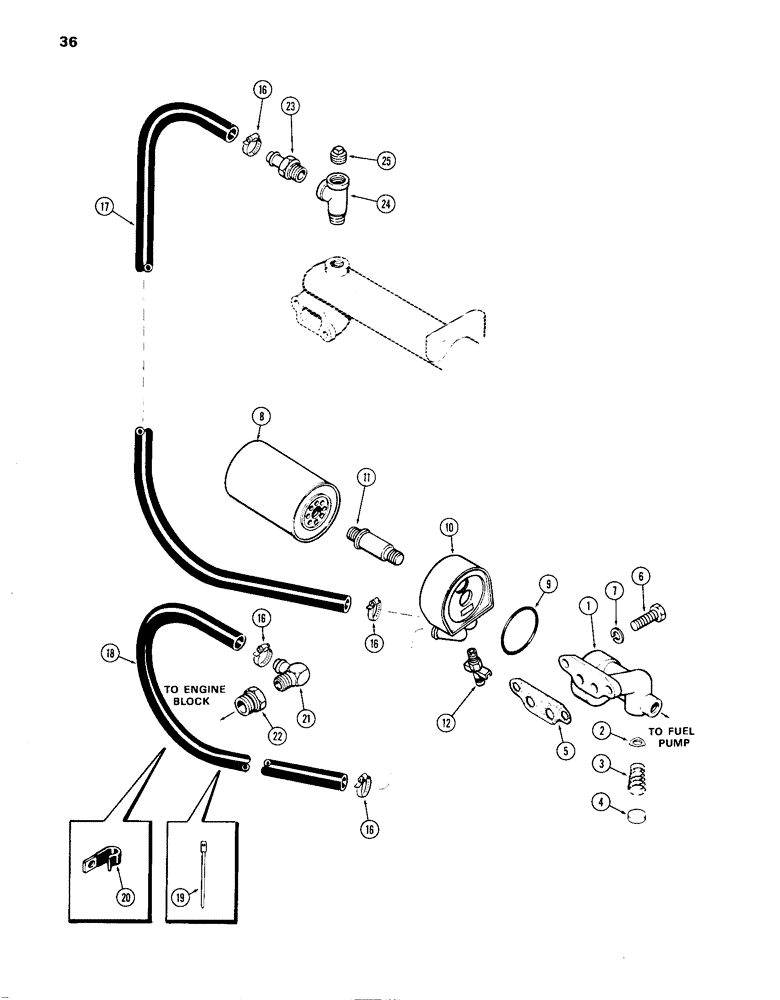

Запчасти Case IH 870 (036) - OIL FILTER AND OIL COOLER, (336B) DIESEL ENGINE, FIRST USED ENGINE SERIAL NUMBER 2530834 (02) - ENGINE

1

A58752

BASE

ASSY. - oil filter (includes ref. 2, 3 & 4)

1шт.

2

A58754

VALVE

- relief, filter

1шт.

3

A58755

FILTER

SPRING - relief valve

1шт.

4

41-1016

PLUG,Cup, 1"

- relief valve (1" cup type)

1шт.

5

A58756

OIL PAN GASKET SET

- filter, Serial Range: base-block

1шт.

6

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- (1/2 x 1-3/4" N.C. hex)

2шт.

7

92-8

LOCK WASHER,1/2"

2шт.

8

A58758

FILTER, ELEMENT

ELEMENT - filter, oil

1шт.

9

A66410

SEALING RING

- oil square rubber (2-39/64" I.D. x 3" O.D. x 13/64")

1шт.

10

A66295

COOLER

- lube oil

1шт.

11

A66296

ADAPTER

- oil cooler

1шт.

12

217-107

VALVE

DRAIN COCK - cooler

1шт.

16

214-335

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP - hose (17/32" to 5/8")

4шт.

17

NSS

NOT SOLD SEPARAT

HOSE - cooler to manifold (43" long) (Order A42610)

1шт.

18

NSS

NOT SOLD SEPARAT

HOSE - cooler to block (25" long) (Order A42610)

1шт.

A42610

LARGE HOSE

HOSE - 5/8 x 15/16 x 50' (cut as req'd.)

1шт.

19

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - wire harness (hold hoses)

1шт.

20

A59718

CLAMP

CLIP - "J" open type (to block)

1шт.

21

217-134

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

CONNECTOR - hose (90 deg.)

1шт.

22

221-60

TUBE

REDUCER - hex (3/4" x 1/2") (in block)

1шт.

23

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

CONNECTOR - hose (in tee)

1шт.

24

221-693

TEE,1/2" NPT

- street (1/2" P.T.) (in rear of water manifold)

1шт.

25

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe (1/2" sq. hd.)

1шт.
