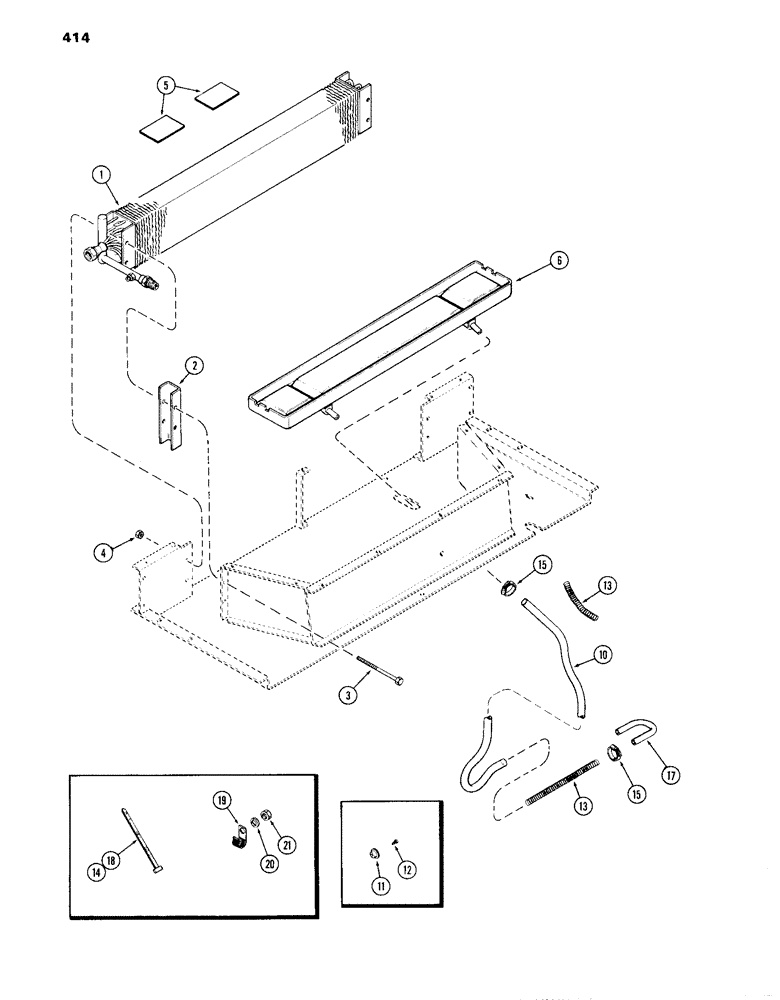

Запчасти Case IH 870 (414) - CAB, AIR CONDITIONER, DRAINAGE SYSTEM, FIRST USED CAB SERIAL NUMBER 7814176 (09) - CHASSIS/ATTACHMENTS

1

F63646

EVAPORATOR

- air conditioner evaporation

1шт.

2

F63747

RADIATOR

FILLER - plenum, R.H. & L.H.

2шт.

3

113-45

BOLT,Hex, 1/4" - 20 x 5", Gr 5

- 1/4 x 5" N.C. hex

4шт.

4

86625061

NUT,1/4"-20, GB

NUT - 1/4" N.C. hex, lock

4шт.

5

345-38

TAPE - 7-1/2" long

2шт.

6

F63750

PAN

- condensation

1шт.

10

NSS

NOT SOLD SEPARAT

HOSE - drain, 75" long (Order A42698)

1шт.

A42698

HOSE

- drain, 1/2 x 9/16" x 50' roll

1шт.

11

F63328

SEAT, VALVE

VALVE - drain hose (See ref. 17)

2шт.

Valve to be retained with (2) 128-502 Neva-Clog staples 180 degrees apart

1шт.

12

151-704

CLIP

- valve

2шт.

13

F63327

SPRING

- valve

4шт.

14

F63329

STRAP

- drain hose (See Ref. 17) (Order F63873)

2шт.

15

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16 to 1-1/16"

2шт.

17

F63873

TUBE

- water drain, "U" trap (Replaces ref. 11 & 14)

1шт.

18

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - water trap tube, R.H.

2шт.

19

A59718

CLAMP

CLIP - water trap tube, L.H.

1шт.

20

92-6

LOCK WASHER,3/8"

1шт.

21

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

1шт.
