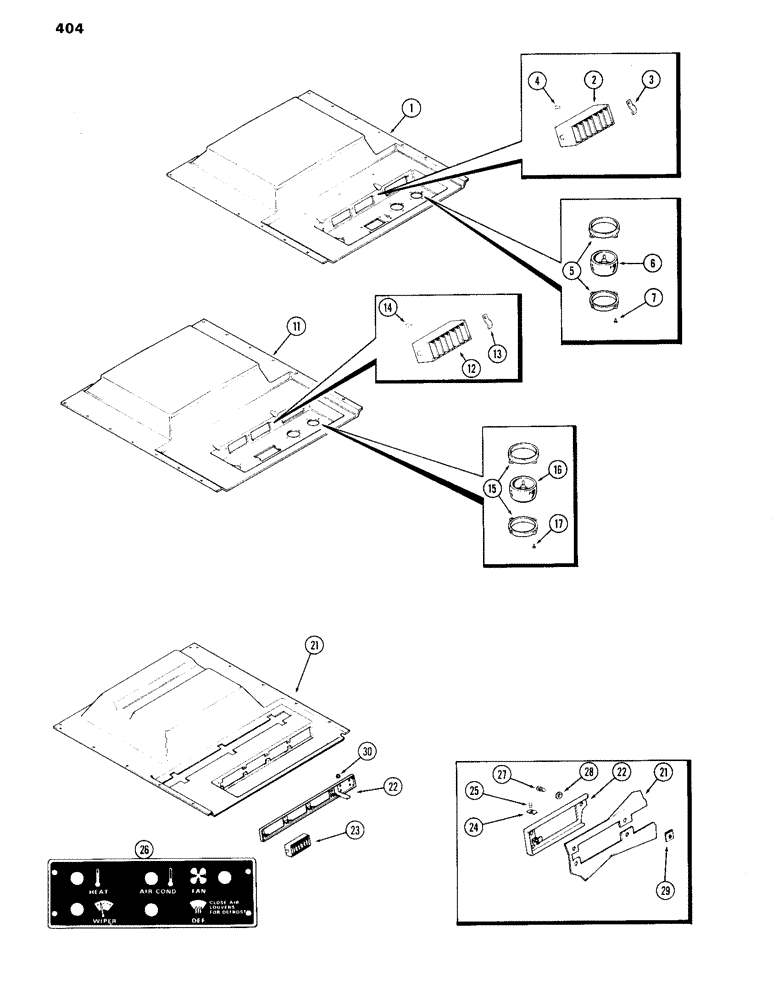

Запчасти Case IH 870 (404) - CAB, LOUVERS, FIRST USED CAB SERIAL NUMBER 7821251 (09) - CHASSIS/ATTACHMENTS

1

F63899

NO LONGER SERVICED

HEADLINER ASSY. - cab

1шт.

2

F89673

GUARD

LOUVER - air deflection

2шт.

3

A42575

CLIP

- louver mounting

4шт.

4

151-526

RIVET,Pop, 1/8" x .337"

4шт.

5

F63776

FRAME

- ball louver

6шт.

6

F63777

BALL

LOUVER - ball

3шт.

7

187-1085

SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"

SCREW - #8 x 5/8" Phillips, self-tapping

12шт.

11

F89842

LINING

HEADLINER ASSY. - cab [used cab s/n 7814176 - 7821251]

1шт.

12

F89673

GUARD

LOUVER - air deflection [cab s/n 7814176 - 7821251]

2шт.

13

A42575

CLIP

- louver mounting [cab s/n 7814176 - 7821251]

4шт.

14

151-511

RIVET,Pop, 1/8" x .337"

- pop, 1/8" [cab s/n 7814176 - 7821251]

4шт.

15

F63776

FRAME

- ball louver [cab s/n 7814176 - 7821251]

6шт.

16

F63777

BALL

LOUVER - ball [cab s/n 7814176 - 7821251]

3шт.

17

187-1085

SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"

SCREW - #8 x 5/8" Phillips, self-tapping [cab s/n 7814176 - 7821251]

12шт.

21

F89664

CAB

HEADLINER ASSY. - cab [prior to cab s/n 7814176]

1шт.

22

A42552

PANEL ASSY. - control (Replaces A42641) [prior to cab s/n 7814176] (includes ref. 23 - 26)

1шт.

23

F89673

GUARD

LOUVER - air direction control [prior to cab s/n 7814176]

3шт.

24

A42575

CLIP

- louver mounting [prior to cab s/n 7814176]

6шт.

25

151-511

RIVET,Pop, 1/8" x .337"

- pop, 1/8" [prior to cab s/n 7814176]

6шт.

26

321-1914

DECAL

- control panel [prior to cab s/n 7814176]

1шт.

27

173-281

SCREW,Phil Rnd Hd, #10 - 24 x 3/4"

- #10 x 3/4" N.C. Phillips [prior to cab s/n 7814176]

10шт.

28

195-512

WASHER,#10

- 7/32 x 7/16 x 1/16" [prior to cab s/n 7814176]

4шт.

29

131-861

SPRING NUT,Tinn, U, #10-24

[prior to cab S/N 7814176] Tinn, U, #10-24

10шт.

30

353-403

PLUG,Dome, .437" hole, Nylon

Panel, Switch holes [Prior to cab S/N 7814176] Dome, .437" hole, Nylon

1шт.
