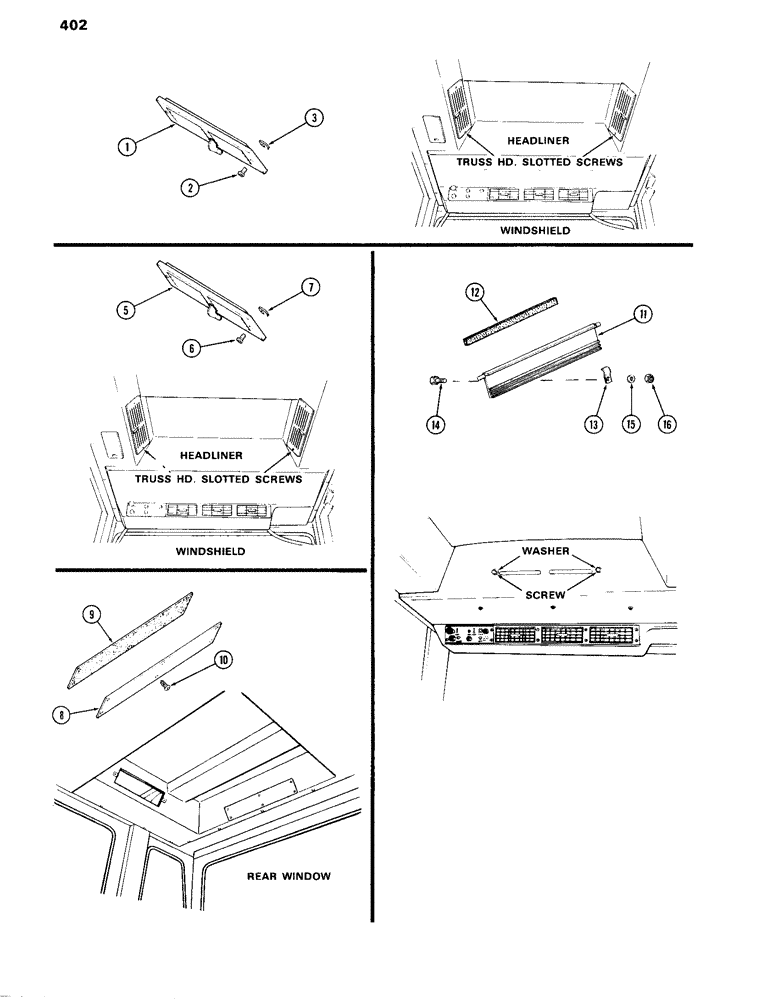

Запчасти Case IH 870 (402) - CAB, RECIRCULATION GRILLE, USED WITH REAR MOUNTED VALVE, USED CAB SERIAL NOS. 7806201 THRU 7808979 (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
A44650
ATTACHMENT
KIT - recirculation grill (includes ref. 1, 2 & 3)
1шт.
1
A44646
GRILLE
GRILL ASSY. - recirculation
2шт.
2
187-1086
SCREW - #10 x 3/4" Truss hd. self-tapping
4шт.
3
131-606
SPRING NUT,Tinn, U, #10
- #10 "U" Type Tinnerman
4шт.
A44649
ATTACHMENT
KIT - cab air recirculation, used w/front mounted valve [used cab s/n 7800801 - 7805931] (includes ref. 5 - 16)
1шт.
5
A44646
GRILLE
GRILL ASSY. - recirculation, used w/front mounted valve [used cab s/n 7800801 - 7805931]
2шт.
6
187-1086
SCREW - #10 x 3/4" truss hd. self-tapping, used w/front mounted valve [used cab s/n 7800801 - 7805931]
4шт.
7
131-606
SPRING NUT,Tinn, U, #10
- #10 "U" Type Tinnerman, used w/front mounted valve [used cab s/n 7800801 - 7805931]
4шт.
8
A44647
PLATE
- rear valve cover, used w/front mounted valve [used cab s/n 7800801 - 7805931]
1шт.
9
A44648
GASKET
- plate used w/front mounted valve [used cab s/n 7800801 - 7805931]
1шт.
10
187-1085
SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"
SCREW - #8 x 5/8" Phillips hd. self-tapping, used w/front mounted valve [used cab s/n 7800801 - 7805931]
6шт.
11
F89764
FLAP
VALVE - auto-pressurization, used w/front mounted valve [used cab s/n 7800801 - 7805931]
1шт.
12
F63261
SEAL
- valve, used w/front mounted valve [cab s/n 7800801 - 7805931]
1шт.
13
F63260
CLIP
- hinge pin, used w/front mounted valve [cab s/n 7800801 - 7805931]
2шт.
14
163-11
SCREW,Hex, #10 - 24 x 9/16"
- #10-24 x 9/16" hex hd. mach., used w/front mounted valve [cab s/n 7800801 - 7805931]
2шт.
15
195-511
WASHER,#10
- 13/64 x 15/32 x 3/64", used w/front mounted valve [cab s/n 7800801 - 7805931]
2шт.
16
86625057
NUT,#10-24, GB
NUT, LOCK, , Esna, Used w/front mounted valve [cab S/N 7800801 - 7805931] #10-24, GB
2шт.
345-45
TAPE
- duct, 2 x 20" vinyl, used w/front mounted valve [cab s/n 7800801 - 7805931]
1шт.
Выбрано товаров: 18
