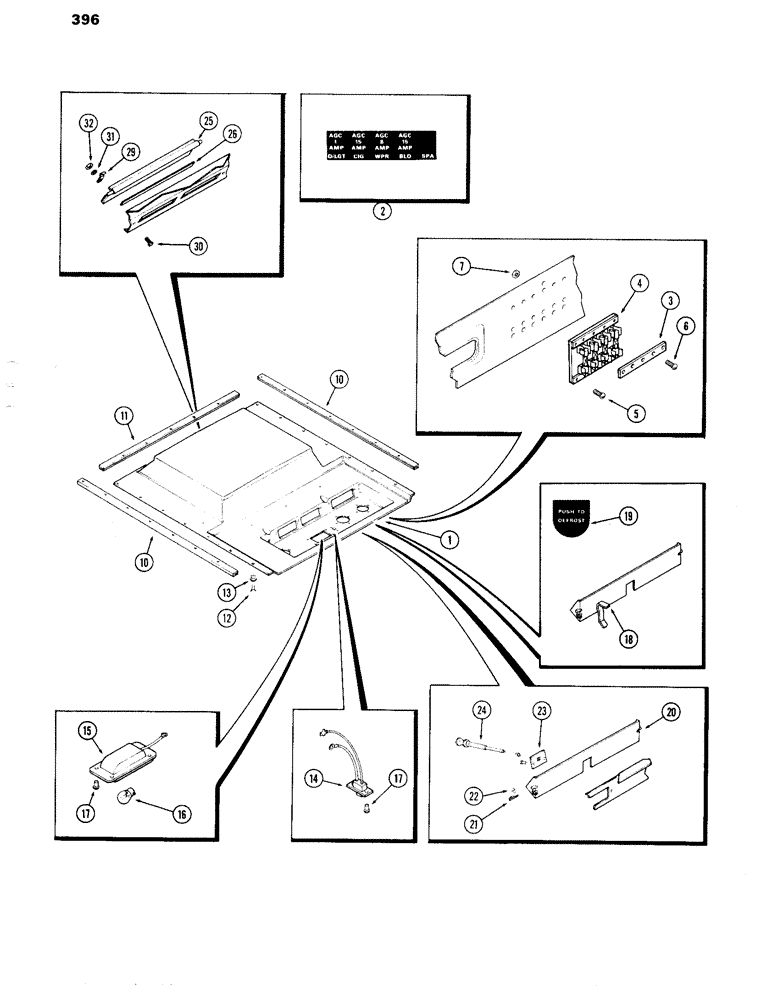

Запчасти Case IH 870 (396) - CAB, HEADLINER, FIRST USED CAB SERIAL NUMBER 7821251 (09) - CHASSIS/ATTACHMENTS

1

F63899

NO LONGER SERVICED

HEADLINER - cab

1шт.

2

321-2738

DECAL

- fuse

1шт.

3

F63512

BAR

BUSS BAR - frame

1шт.

4

F64047

HOLDER

FUSE BLOCK - 5 pole

1шт.

5

173-251

SCREW,Sl Rnd Hd, #6 - 32 x 3/4", Brass

- #6-32 x 3/4" rd. hd.

5шт.

6

182-533

SCREW,Sl Pan Hd, #6 - 32 x 1/4"

- #6-32 x 1/4" rd. hd.

3шт.

7

129-640

NUT,#6-32, Brass

- #6-32 hex

10шт.

10

F63800

MOLDING

TRIM - side, headliner

2шт.

11

F63799

MOLDING

TRIM - rear, headliner

1шт.

12

187-1084

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - #10-16 x 3/4" Phillips drive

19шт.

13

F63765

WASHER

- finishing

19шт.

14

F63760

SWITCH

- dome light

1шт.

15

F63894

LAMP

LIGHT ASSY. - dome (includes ref. 16)

1шт.

16

B50217

BULB

- dome light

1шт.

17

151-526

RIVET,Pop, 1/8" x .337"

6шт.

18

F89893

BRACKET

DOOR ASSY. - defroster (lever controled)

1шт.

19

321-2995

DECAL

- defroster control arm

1шт.

20

F89925

BRACKET

DOOR ASSY. - defroster (Cable controled) (Order F89893)

1шт.

21

A42575

CLIP

- defroster

2шт.

22

151-526

RIVET,Pop, 1/8" x .337"

2шт.

23

F63902

PLATE

PANEL - defroster

1шт.

24

F63892

LEVER

CONTROL - defroster

1шт.

25

F89764

FLAP

VALVE - pressure adjusting (rear mounted)

1шт.

26

NSS

NOT SOLD SEPARAT

SEAL - valve, 11" (Order A42905)

1шт.

A42905

FOAM

SEAL - valve (50' roll)

1шт.

29

F63810

CLIP

- valve hinge

2шт.

30

163-11

SCREW,Hex, #10 - 24 x 9/16"

- #10 x 9/16" N.C. hex

2шт.

31

195-511

WASHER,#10

- 13/64" x 15/32" x 3/64"

2шт.

32

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

2шт.
