(394) - CAB, ACOUSTICAL COVERS, USED PRIOR TO TRACTOR SERIAL NUMBER 8736722

Запчасти Case IH 870 (394) - CAB, ACOUSTICAL COVERS, USED PRIOR TO TRACTOR SERIAL NUMBER 8736722 (09) - CHASSIS/ATTACHMENTS

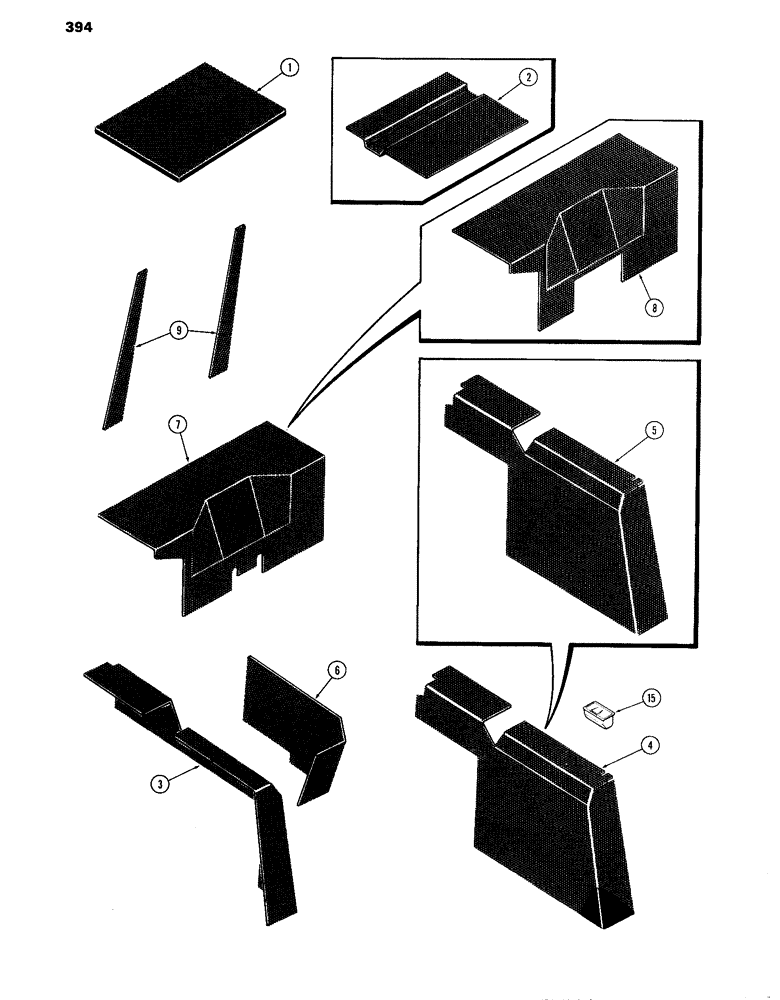

Схема запчастей Case IH 870 - (394) - CAB, ACOUSTICAL COVERS, USED PRIOR TO TRACTOR SERIAL NUMBER 8736722 (09) - CHASSIS/ATTACHMENTS
6
7
2
4
15
3
8
9
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

F63416

COVER

- headliner (1st used tractor ser. no. 8693001)

1шт.

2

F63326

PROTECTIVE COVER

COVER - headliner (used prior to tractor ser. no. 8693001)

1шт.

3

F63296

PROTECTIVE COVER

COVER - fender panel, R.H.

1шт.

4

F63809

PROTECTIVE COVER

COVER - fender panel, L.H. (Replaces F63295)

1шт.

5

F63295

COVER

- fender panel, L.H. (Order F63809)

1шт.

6

A61141

PROTECTIVE COVER

COVER - console

1шт.

7

A65426

PROTECTIVE COVER

COVER - fuel tank (Replaces A61142)

1шт.

8

A61142

COVER

- fuel tank (Order A65426)

1шт.

9

F63195

COVER

- corner filler

2шт.

15

F63395

TRAY

ASH TRAY

1шт.

Cut hole in L.H. fender covers and insert ash tray

1шт.
