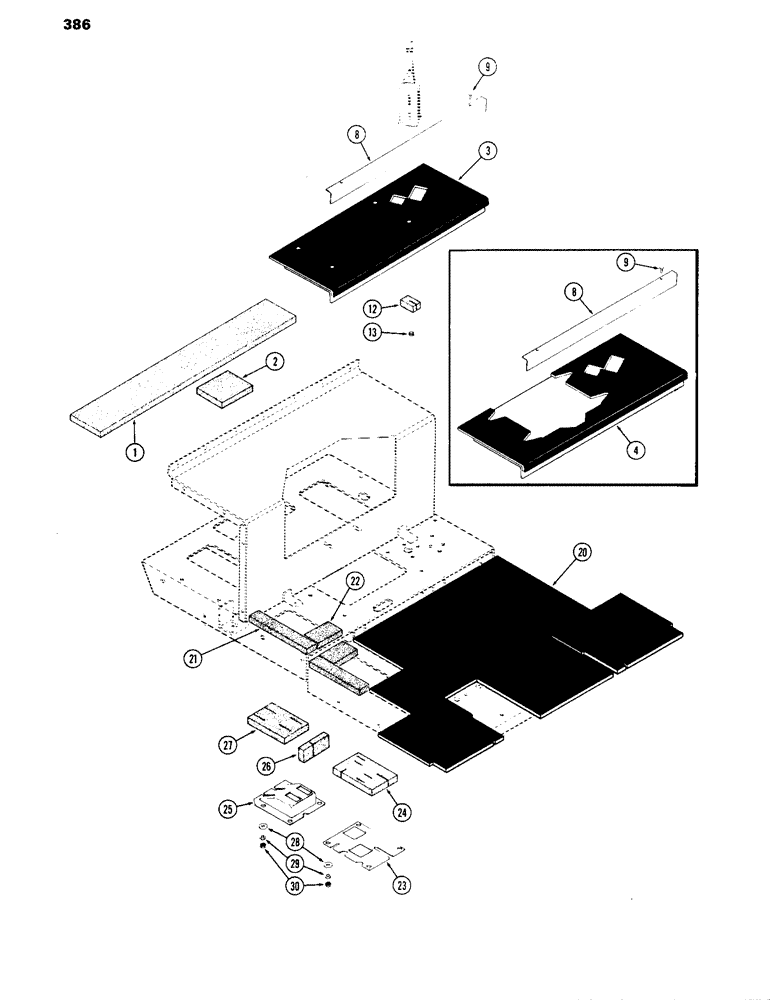

Запчасти Case IH 870 (386) - INSULATION, PLATFORM, USED PRIOR TO TRACTOR SERIAL NUMBER 8736722 (09) - CHASSIS/ATTACHMENTS

1

A61699

SEAL

- fuel tank sealing (Order A141916)

1шт.

2

A62594

FOAM

- fuel tank, top groove

1шт.

3

A64991

MAT

- floor, rear (1st used tractor ser. no. 8693001)

1шт.

4

A60821

MAT - floor, rear (used prior to tractor ser. no. 8693001)

1шт.

8

A62461

FLOOR

ANGLE - floor mat retaining

1шт.

9

187-1060

SELF-TAP SCREW,Sltd Hex Hd, 1/4" x 3/4"

SCREW - 1/4 x 3/4" sltd. self-drill & tap

2шт.

12

A60819

FOAM

- hand brake sealing

1шт.

13

A60818

GROMMET

- hand brake cable

1шт.

20

A60820

MAT

- floor, front (Order A135685)

1шт.

21

A60814

FOAM

- sealing, console bottom

2шт.

22

A60815

FOAM

- sealing, console bottom

2шт.

23

A60810

COVER ASSY. - console front (includes ref. 24)

1шт.

24

A60812

FOAM

- sealing, cover

1шт.

25

A61088

COVER ASSY. - console, rear (includes ref. 26 & 27)

1шт.

26

A60807

FOAM

- sealing, cover front

1шт.

27

A61090

FOAM

- sealing, cover top

1шт.

28

95-5

WASHER,3/8" x 7/8" x .083"

- 3/8 x 7/8 x 5/64"

8шт.

29

95-5

WASHER,3/8" x 7/8" x .083"

- lock, 5/16"

8шт.

30

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

8шт.
