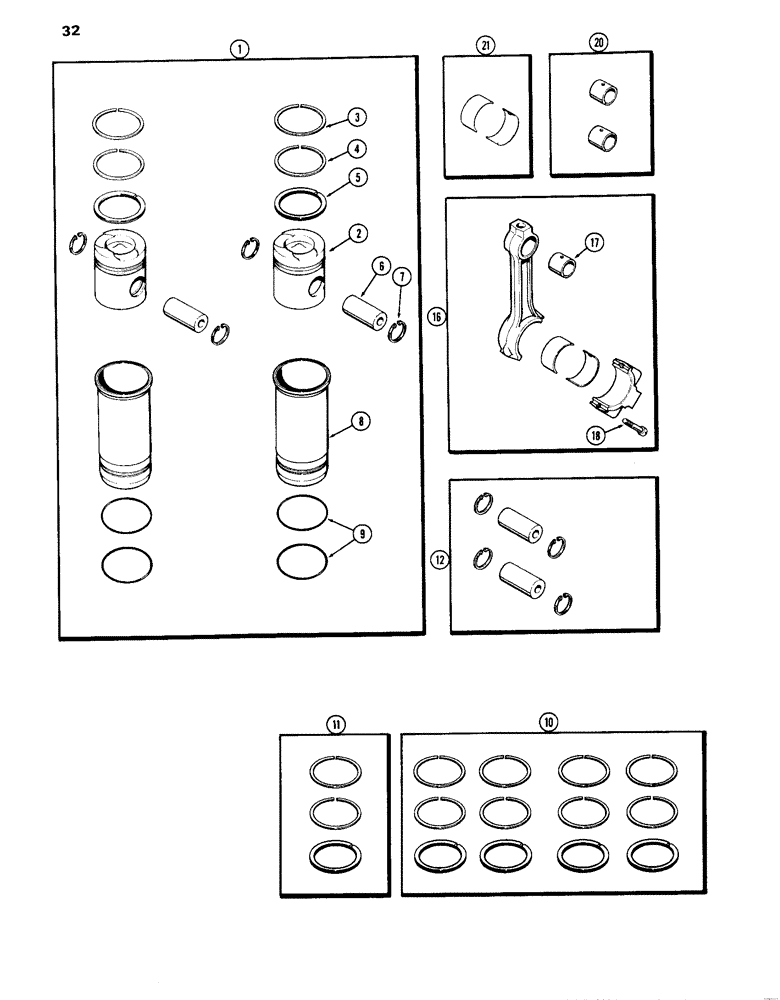

Запчасти Case IH 870 (032) - PISTON ASSEMBLY AND CONNECTING RODS, (336B) DIESEL ENGINE (02) - ENGINE

1

A46025

PISTON

PISTON & SLEEVE KIT - (Set of 2) (Replaces A42751 & A43115) (includes ref. 2 - 9)

2шт.

2

A65123

PISTON

PISTON - cylinder (4-5/8" bore) (Replaces A64088)

2шт.

3

NSS

NOT SOLD SEPARAT

RING - compression (1st groove) (Order ref. 11)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - compression (2nd groove) (Order ref. 11)

2шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control (bottom groove) (Order ref. 11)

2шт.

6

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. 12)

2шт.

7

A44249

SNAP RING,1.812", Int, #181

RING, snap, , Replaces A58585 1.812", Int, #181

4шт.

8

A140216

SLEEVE CYLINDER

SLEEVE - piston (cylinder liner) (4-5/8" bore) (Replaces A58570)

2шт.

9

A58571

O-RING,4.487" ID x 4.693" OD

"O" RING - sleeve packing

4шт.

10

A42989

RING

RING KIT - re-ring (Set of 4) (Replaces A42750) (includes ref. 11)

1шт.

11

A42988

RING

RING KIT - re-ring (Set of 1) (Replaces A42749)

4шт.

12

A44574

PIN

PIN KIT - w/retaining rings (Set of 2) (Replaces A41750)

2шт.

16

A65032

ROD

ROD ASSY. - connecting (includes ref. 17 & 18)

4шт.

16

AR65032

REMAN-CONNECTING ROD

Remanufactured Connecting Rod

4шт.

16

AC65032

CORE-ROD CONNECTING

Core Connecting Rod Return Part Number

4шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order ref. 20)

1шт.

18

A65757

FLANGE BOLT,1/2" - 20 x 2.31"

BOLT - connecting rod cap (Replaces A62184)

2шт.

20

A41756

BUSHING

BUSHING KIT - piston pin (Set of 2)

2шт.

21

A41758

BEARING LINER

INSERT ASSY. - connecting rod bearing (Standard)

4шт.

21

A41899

BEARING LINER

INSERT ASSY. - connecting rod bearing (-.002")

4шт.

21

A41900

BEARING LINER

INSERT ASSY. - connecting rod bearing (-.010")

4шт.

21

A41901

BEARING LINER

INSERT ASSY. - connecting rod bearing (-.020")

4шт.

21

A41902

BEARING LINER

INSERT ASSY. - connecting rod bearing (-.030")

4шт.
