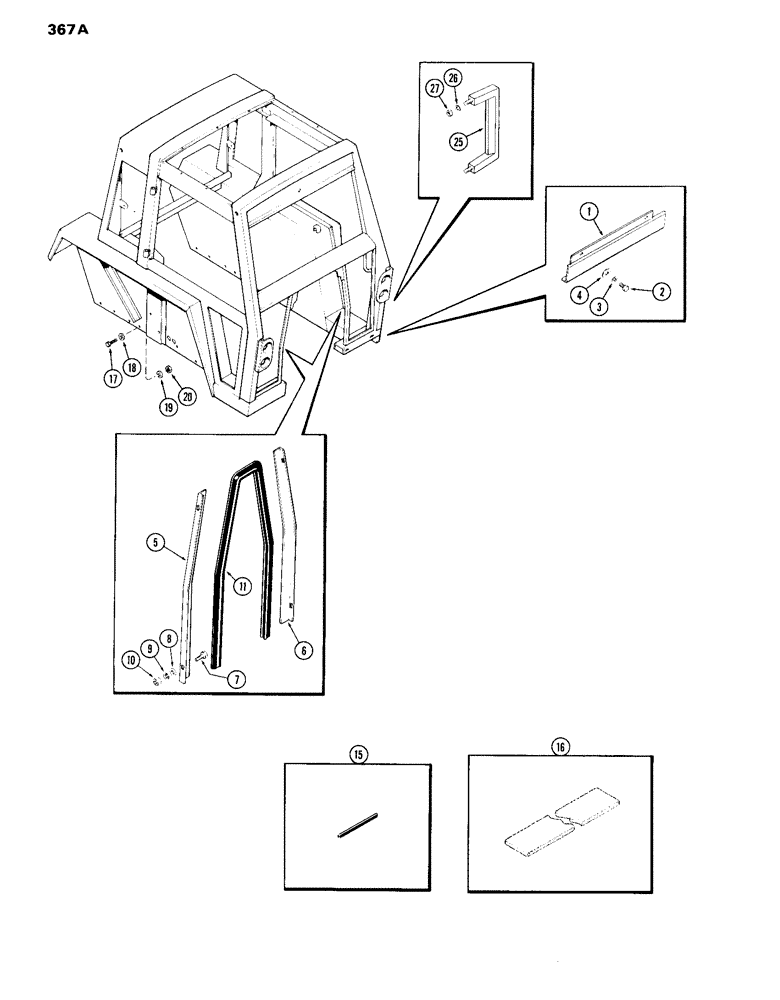

Запчасти Case IH 870 (367A) - CAB, LOWER SHEET METAL, USED PRIOR TO CAB SERIAL NUMBER 7814176 (09) - CHASSIS/ATTACHMENTS

F89696

CAB - w/o heater or air conditioner (Mach. Item) (1st used trac. ser. no. 8693001)

1шт.

A62790

CAB - w/o heater or air conditioner (Mach. Item) (used prior to trac. ser. no. 8693001)

1шт.

F89698

CAB - w/air conditioner (Mach. Item) (1st used trac. ser. no. 8693001)

1шт.

A62791

CAB - w/air conditioner (Mach. Item) (used prior to trac. ser. no. 8693001)

1шт.

F89700

CAB - w/heater (Mach. Item) (1st used trac. ser. no. 8693001)

1шт.

A62792

CAB - w/heater (Mach. Item) (used prior to trac. ser. no. 8693001)

1шт.

F89702

CAB - w/air conditioner & heater (Mach. Item) (1st used trac. ser. no. 8693001)

1шт.

A62793

CAB - w/air conditioner & heater (Mach. Item) (used prior to trac. ser. no. 8693001)

1шт.

1

F89641

PANEL

- battery access

1шт.

2

113-151

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5, Full Thd

- 5/16 x 3/4" N.C. hex

2шт.

3

192-45

LOCK WASHER

- lock, 5/16"

2шт.

4

195-80

WASHER - 3/8 x 1-1/8 x 1/16"

2шт.

5

A61138

FILLER - dust shield, R.H.

1шт.

6

A61139

FILLER - dust shield, L.H.

1шт.

7

113-30

BOLT - 1/4 x 5/8" N.C. hex

4шт.

8

195-127

WASHER - 1/4 x 9/16 x 3/64"

4шт.

9

192-44

LOCK WASHER

- lock, 1/4"

4шт.

10

129-517

NUT - 1/4" N.C. hex

4шт.

11

A62885

SEAL

- dust shield (Replaces A61140)

1шт.

To be attached with Adhesive 345-22

1шт.

15

F63177

MOLDING - under hoses (6" long) (Order F13009)

2шт.

To be attached with Adhesive 345-22

1шт.

16

F63365

FOAM - temperature barrier, rear (1st used tractor ser. no. 8693001)

1шт.

To be attached with Adhesive 345-22

1шт.

16

F63219

FOAM

- temperature barrier, front (used prior to tractor ser. no. 8693001)

1шт.

To be attached with Adhesive 345-22

1шт.

17

113-286

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

- 3/8 x 3/4" N.C. hex

2шт.

17

113-287

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

- 3/8 x 1-3/4" N.C. hex

4шт.

17

113-268

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

- 3/8 x 1" N.C. hex

14шт.

18

195-525

WASHER,3/8", SAE

- 3/8 x 1-1/8 x 1/16"

38шт.

19

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

20шт.

20

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

18шт.

25

A60530

HANDLE

- cab mounting

1шт.

26

192-46

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

27

129-770

NUT,3/8"-16, G5

- 3/8" N.C. hex

2шт.
