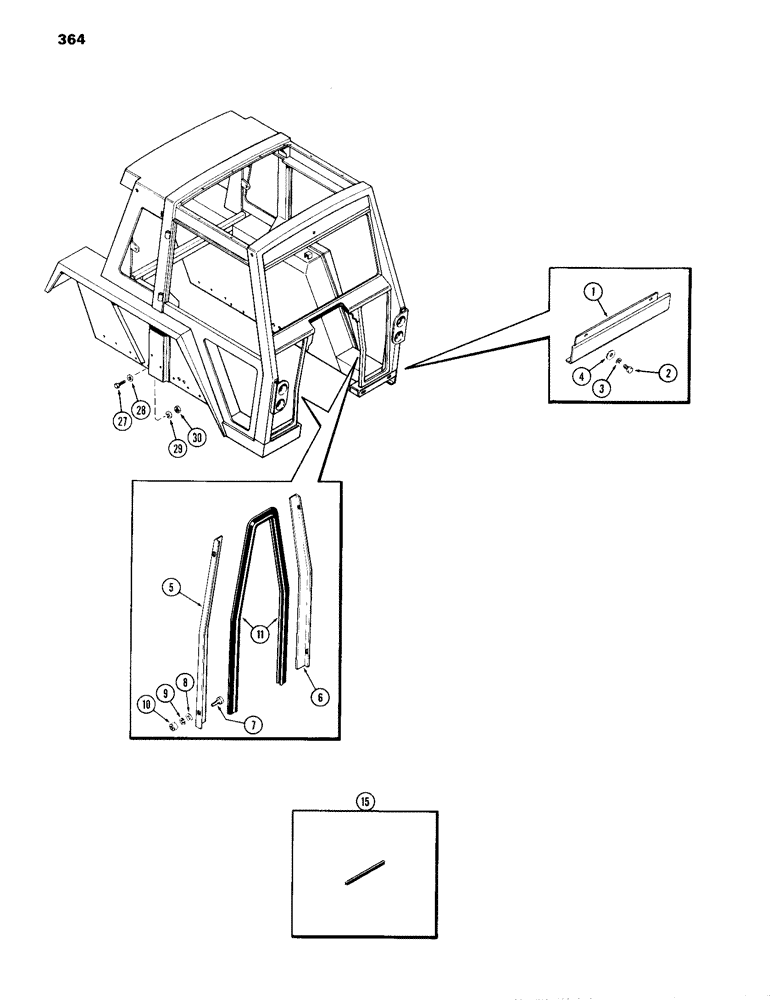

Запчасти Case IH 870 (364) - CAB, LOWER SHEET METAL, FIRST USED CAB SERIAL NUMBER 7821251 (09) - CHASSIS/ATTACHMENTS

F89971

CAB - w/o heater or air conditioner (Mach. Item)

1шт.

F89972

CAB - w/air conditioner (Mach. Item)

1шт.

F89973

CAB - w/heater (Mach. Item)

1шт.

F89974

CAB - w/air conditioner & heater (Mach. Item)

1шт.

1

F89392

PANEL - battery access

1шт.

2

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

3

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

4

195-521

WASHER,5/16", SAE

- 3/8 x 1-1/8 x 1/16"

2шт.

5

A61138

FILLER - dust shield, R.H.

1шт.

6

A61139

FILLER - dust shield, L.H.

1шт.

7

113-30

BOLT - 1/4 x 5/8" N.C. hex

4шт.

8

195-127

WASHER - 1/4 x 9/16 x 3/64"

4шт.

9

192-44

LOCK WASHER

- lock, 1/4"

4шт.

10

129-517

NUT - 1/4" N.C. hex

4шт.

11

A62885

SEAL

- dust shield (90" long)

1шт.

To be attached with Adhesive 345-22

1шт.

15

NSS

NOT SOLD SEPARAT

MOLDING - under hoses (6" long) (Order F63578)

2шт.

To be attached with Adhesive 345-22

1шт.

F63578

GASKET

MOLDING - "U" Type, 24-1/2" long (cut as req'd)

1шт.

27

113-286

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

- 3/8 x 3/4" N.C. hex

2шт.

27

113-287

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

- 3/8 x 1-3/4" N.C. hex

4шт.

27

113-268

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

- 3/8 x 1" N.C. hex

14шт.

28

195-525

WASHER,3/8", SAE

- 3/8 x 1-1/8 x 1/16"

38шт.

29

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

20шт.

30

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

18шт.
