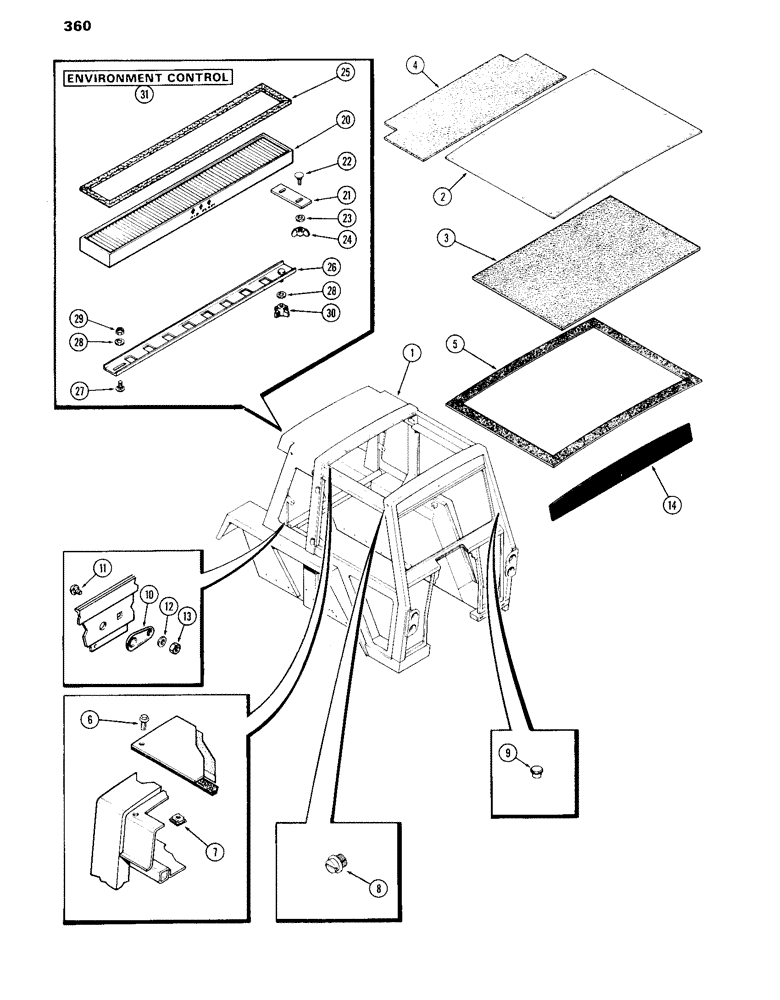

Запчасти Case IH 870 (360) - CAB, UPPER SHEET METAL, USED CAB SERIAL NUMBERS 7814176 TO 7821251 (09) - CHASSIS/ATTACHMENTS

F89819

CAB - w/o heater or air conditioner (Mach. Item)

1шт.

F89820

CAB - w/air conditioner (Mach. Item)

1шт.

F89821

CAB - w/heater (Mach. Item)

1шт.

F89822

CAB - w/air conditioner & heater (Mach. Item)

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME ASSY. - cab

1шт.

2

F63721

PANEL

ROOF ASSY. - cab (Replaces F63196)

1шт.

3

F63722

FOAM

- roof temperature barrier (Replaces F63221)

1шт.

4

F63812

BAR

FOAM - rear, roof temperature barrier

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL - roof, 1/4 x 3/8" (Order A42676)

1шт.

A42676

SEAL

- roof (25' roll)

1шт.

6

163-16

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

- 1/4 x 3/4" N.C. hex, washer hd.

18шт.

7

131-617

NUT,Ret, J, 1/4"-20

- 1/4" "J" Type Tinnerman

18шт.

8

353-550

PLUG,Slotted, 1/2"-13

Plastic, In lifting holes Slotted, 1/2"-13

4шт.

9

353-408

PLUG,Dome, .750" hole, Nylon

- port hole, 3/4"

2шт.

10

F12598

PLATE

COVER - utility

1шт.

11

412-410

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 5/8", Gr 2

BOLT - 1/4 x 3/4" N.C. rd. hd. sq. neck

1шт.

12

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

1шт.

13

86625061

NUT,1/4"-20, GB

NUT - 1/4" N.C. hex, lock

1шт.

14

A42582

DECAL

- front panel

1шт.

20

NLS

NO LONGER SERVICED

- air intake

1шт.

21

F63728

CLIP

- filter retainer, air

2шт.

22

111-128

CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G2

BOLT - 1/4 x 3/4" N.C. rd. hd. sq. neck, air filter

4шт.

23

195-515

WASHER,#12

- 1/4 x 1/2 x 1/16", air filter

4шт.

24

129-409

WING NUT,1/4"-20

NUT, WING, , Air filter 1/4"-20

4шт.

25

F63674

SEAL

GASKET - filter seal, air

1шт.

26

F89886

PLATE

ASSY. - recirculation door, air filter

1шт.

27

111-202

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2, Air filter

1шт.

28

195-521

WASHER,5/16", SAE

- 11/32 x 11/16 x 1/16", air filter

2шт.

29

231-1445

NUT,5/16"-18, GB

NUT - 5/16" N.C. hex, air filter

1шт.

30

F63415

KNOB

- door control, air filter

1шт.

31

321-2496

DECAL

- "Environmental Control", air filter

1шт.
