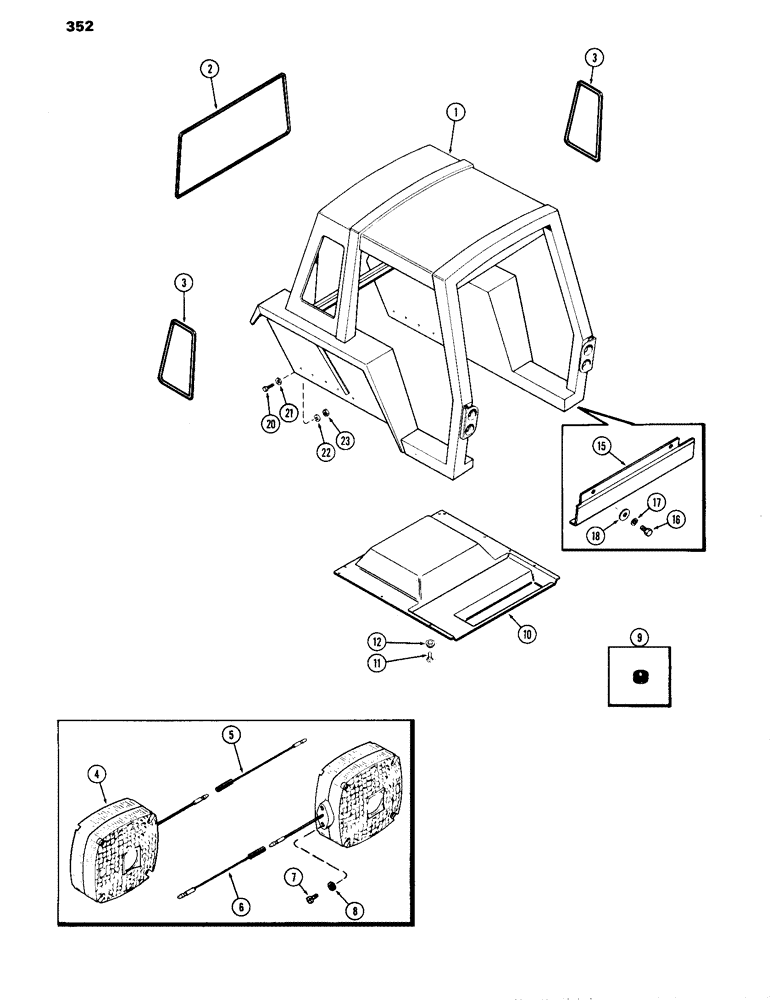

Запчасти Case IH 870 (352) - FOUR POST PROTECTIVE FRAME, R.O.P.S., FIRST USED R.O.P.S. SERIAL NUMBER 7909475 (09) - CHASSIS/ATTACHMENTS

F89389

ATTACHMENT - protective enclosure (Mach. Item) (includes ref. 1 - 12 and 15 - 18)

1шт.

1

NSS

NOT SOLD SEPARAT

ENCLOSURE ASSY. - welded

1шт.

2

NSS

NOT SOLD SEPARAT

TRIM - rear window (Order F63578)

2шт.

3

NSS

NOT SOLD SEPARAT

TRIM - side window (Order F63578)

2шт.

4

REF

INSTRUCTION

LIGHT - flasher (See Figure 122)

2шт.

5

F63584

CABLE

WIRE - flasher, R.H. (110" dark brown)

1шт.

6

F63585

CABLE

WIRE - flasher, L.H. (60" tan w/white)

1шт.

214-1104

CLAMP

CLIP - speed (flasher wires)

2шт.

7

113-39

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

- 1/4 x 1/2" N.C. hex

4шт.

8

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

9

A31076

GROMMET

- cable

2шт.

10

F63791

LINING

HEADLINER

1шт.

11

187-1084

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - #10 x 3/4" Phillips hd. self-tapping

19шт.

12

F63765

WASHER

- finishing

19шт.

15

F89392

PANEL - battery access

1шт.

16

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

17

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

18

195-521

WASHER,5/16", SAE

- 11/32 x 11/16 x 5/64"

2шт.

F63578

GASKET

TRIM - window (50' roll)

1шт.

20

113-286

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

- 3/8 x 3/4" N.C. hex

2шт.

20

113-268

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

- 3/8 x 1" N.C. hex

14шт.

20

113-287

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

- 3/8 x 1-3/4" N.C. hex

4шт.

21

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16" (inside & outside except by weld nuts)

38шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

20шт.

23

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

18шт.

353-550

PLUG,Slotted, 1/2"-13

Lifting eye holes Slotted, 1/2"-13

4шт.
