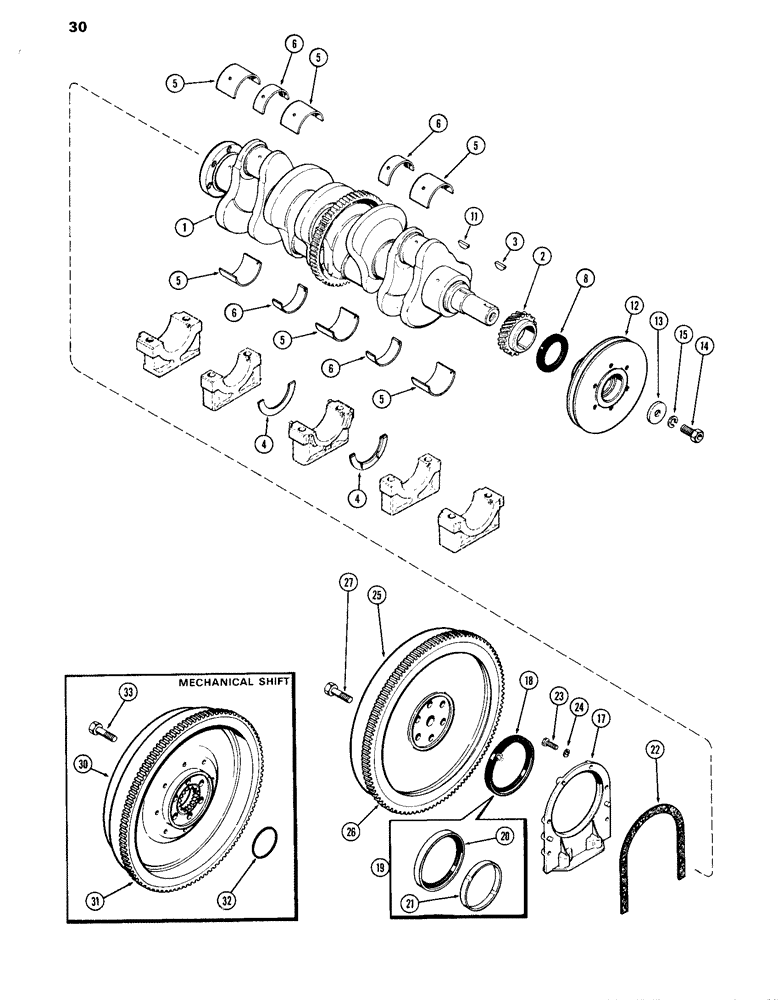

Запчасти Case IH 870 (030) - CRANKSHAFT AND FLYWHEEL, (336B) DIESEL ENGINE (02) - ENGINE

1

A64473

CRANKSHAFT

ASSY. - engine (Replaces A64376) (includes ref. 2 & 3)

1шт.

2

A66404

GEAR

- crankshaft (Replaces A58573)

1шт.

3

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

1шт.

4

A58565

WASHER

- thrust, crankshaft (.156" wide)

2шт.

4

A42447

WASHER

- thrust, crankshaft (.162" wide)

2шт.

5

A43090

BEARING LINER

LINER - main bearing, wide (Standard) (Replaces A141752)

3шт.

5

A43124

LINING

LINER - main bearing, wide (-.002") (Replaces A41907)

3шт.

5

A43125

CRANKSHAFT BEARING

LINER - main bearing, wide (-.010") (Replaces A41908)

3шт.

5

A43126

LINING

LINER - main bearing, wide (-.020") (Replaces A41909)

3шт.

5

A43127

LINING

LINER - main bearing, wide (-.030") (Replaces A41910)

3шт.

6

A43089

BEARING LINER

LINER - main bearing, narrow (-.030") (Replaces A41759)

2шт.

6

A43120

LINING

LINER - main bearing, narrow (-.002") (Replaces A41903)

2шт.

6

A43121

SET OF CONN ROD BRGS STD

LINER - main bearing, narrow (-.010") (Replaces A41904)

2шт.

6

A43122

LINING

LINER - main bearing, narrow (-.020") (Replaces A41905)

2шт.

6

A43123

SET OF CONN ROD BRGS STD

LINER - main bearing, narrow (-.030") (Replaces A41906)

2шт.

8

A62049

OIL SEAL

- crankshaft, front (2-5/8 x 3-5/8 x 29/64")

1шт.

11

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

1шт.

12

A58746

PULLEY - fan drive

1шт.

13

A27903

WASHER

- drive pulley

1шт.

14

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

Drive pulley Hex, 5/8"-18 x 1 1/2", G5

1шт.

15

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

17

A57457

RETAINER

- crankshaft rear oil seal

1шт.

18

A62050

OIL SEAL

- oil, crankshaft, rear (4-11/16 x 5-3/4 x 1/2") (See ref. 19)

1шт.

19

A43194

KIT

- crankshaft wear seal (includes ref. 20 & 21)

1шт.

20

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft, rear

1шт.

21

NSS

NOT SOLD SEPARAT

SLEEVE - crankshaft wear

1шт.

22

A32830

GASKET

- retainer

1шт.

23

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

24

92-6

LOCK WASHER,3/8"

6шт.

25

A59034

FLYWHEEL ASSY. - w/o spline (Power Shift) (includes ref. 26)

1шт.

26

A58778

GEAR

- ring (139 teeth)

1шт.

27

114-621

BOLT

- (5/8 x 1-3/4" N.C. hex) (Power Shift)

6шт.

30

A58777

FLYWHEEL ASSY. - w/spline (Mechanical Shift) (includes ref. 31)

1шт.

31

A58778

GEAR

- ring (139 teeth)

1шт.

32

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

"O" RING - flywheel to crankshaft (Mechanical Shift)

1шт.

33

114-622

X

BOLT - (5/8 x 2" N.F. hex) (Mechanical Shift)

6шт.
