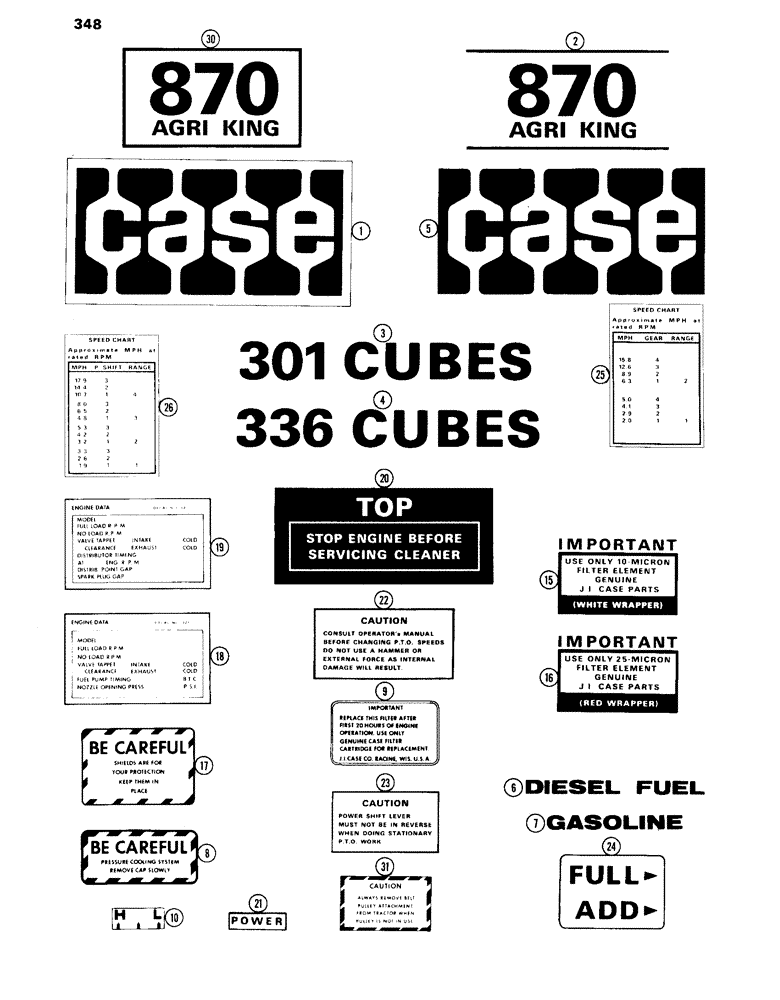

Запчасти Case IH 870 (348) - DECALS, STANDARD, USED PRIOR TO TRACTOR SERIAL NUMBER 8693001 (09) - CHASSIS/ATTACHMENTS

A43035

DECAL

KIT - decal (includes ref. 1 - 10 and 15 - 26)

1шт.

1

321-2163

DECAL

- identification, "CASE" (front side sheets)

2шт.

2

321-1810

DECAL

- "870 Agri-King" (R.H. & L.H. frt. side sheets)

2шт.

3

321-1811

DECAL

- "301 Cubes" (decal panel)

2шт.

4

321-1812

DECAL

- "336 Cubes" (decal panel)

2шт.

5

321-1439

DECAL

- identification, "Case" (fuel tank)

1шт.

6

321-230

DECAL

- "Diesel Fuel"

1шт.

7

321-18

DECAL

- "Gasoline"

1шт.

8

321-122

DECAL

- pressure cooling system

1шт.

9

321-367

DECAL

- engine oil filter change

1шт.

10

321-1335

DECAL

- seat adjustment indicator

1шт.

15

321-1762

DECAL

- oil filter warning (10 Micron)

1шт.

16

321-1763

DECAL

- oil filter warning (25 Micron)

1шт.

17

321-608

DECAL

- safety

1шт.

18

321-1803

DECAL

- engine data (Diesel)

1шт.

19

321-1829

DECAL

- engine data (Gasoline)

1шт.

20

321-1568

DECAL

- air cleaner

1шт.

21

321-1623

DECAL

- "Power" (brake pedal)

1шт.

22

321-1650

DECAL

- "Caution" (P.T.O.)

1шт.

23

321-1651

DECAL

- "Caution" (power shift)

1шт.

24

321-1642

DECAL

- transmission, "Add-Full"

1шт.

25

321-1825

DECAL

- speed chart (8 speed Mech. Shift)

1шт.

26

321-1826

DECAL

- speed chart (12 speed Power Shift)

1шт.

30

321-1809

DECAL

- "870 Agri-King" (fuel tank) (not in kit)

1шт.

31

321-333

DECAL

- belt pulley attachment (not in kit)

1шт.
