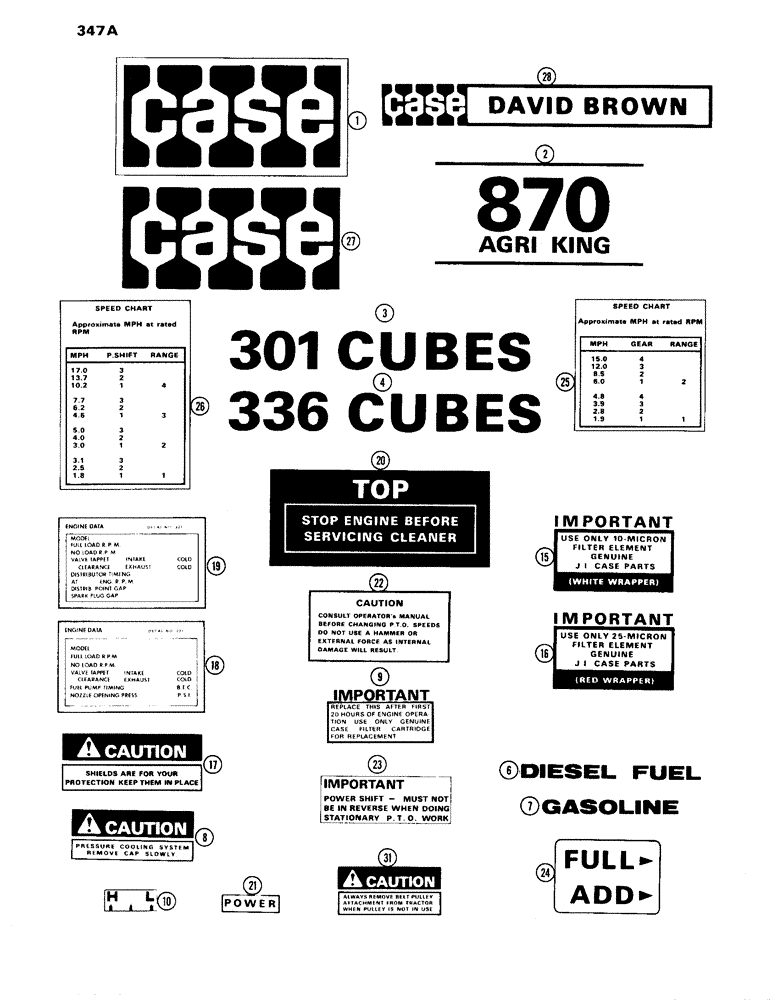

Запчасти Case IH 870 (347A) - DECALS, STANDARD, USED TRACTOR SERIAL NUMBERS 8693001 T0 8736722 (09) - CHASSIS/ATTACHMENTS

A43104

DECAL

KIT - decal (includes ref. 1 - 4, 6 - 10 and 15 - 27)

1шт.

1

321-2163

DECAL

- identification, "CASE" (front side sheets)

2шт.

2

321-1810

DECAL

- "870 Agri-King" (R.H. & L.H. frt. side sheets)

2шт.

3

321-1811

DECAL

- "301 Cubes" (decal panel)

2шт.

4

321-1812

DECAL

- "336 Cubes" (decal panel)

2шт.

6

321-2601

DECAL

- "Diesel Fuel" (on fuel tank)

1шт.

7

321-2169

DECAL

- "Gasoline" (on fuel tank)

1шт.

8

321-2100

DECAL

- pressure cooling system

1шт.

9

321-2101

DECAL

- engine oil filter change

1шт.

10

321-1335

DECAL

- seat adjustment indicator

1шт.

15

321-1762

DECAL

- oil filter warning (10 Micron)

1шт.

16

321-1763

DECAL

- oil filter warning Micron)

1шт.

17

321-2687

DECAL

- safety

1шт.

18

321-2318

DECAL

- engine data (Diesel)

1шт.

19

321-1829

DECAL

- engine data (Gasoline)

1шт.

20

321-1568

DECAL

- air cleaner

1шт.

21

321-1623

DECAL

- "Power" (brake pedal)

1шт.

22

321-1650

DECAL

- "Caution" (P.T.O.)

1шт.

23

321-2741

DECAL

- Important (power shift)

1шт.

24

321-1642

DECAL

- Transmission, "Add-Full"

1шт.

25

321-1825

DECAL

- speed chart (8 speed mech. shift)

1шт.

26

321-1826

DECAL

- speed chart (12 speed power shift)

1шт.

27

321-2600

DECAL

- "Case", (on fuel tank)

1шт.

30

321-2565

DECAL

- "Case-David Brown" (Not part of kit)

2шт.

31

321-2666

DECAL

- belt pulley attachment (not in kit)

1шт.
