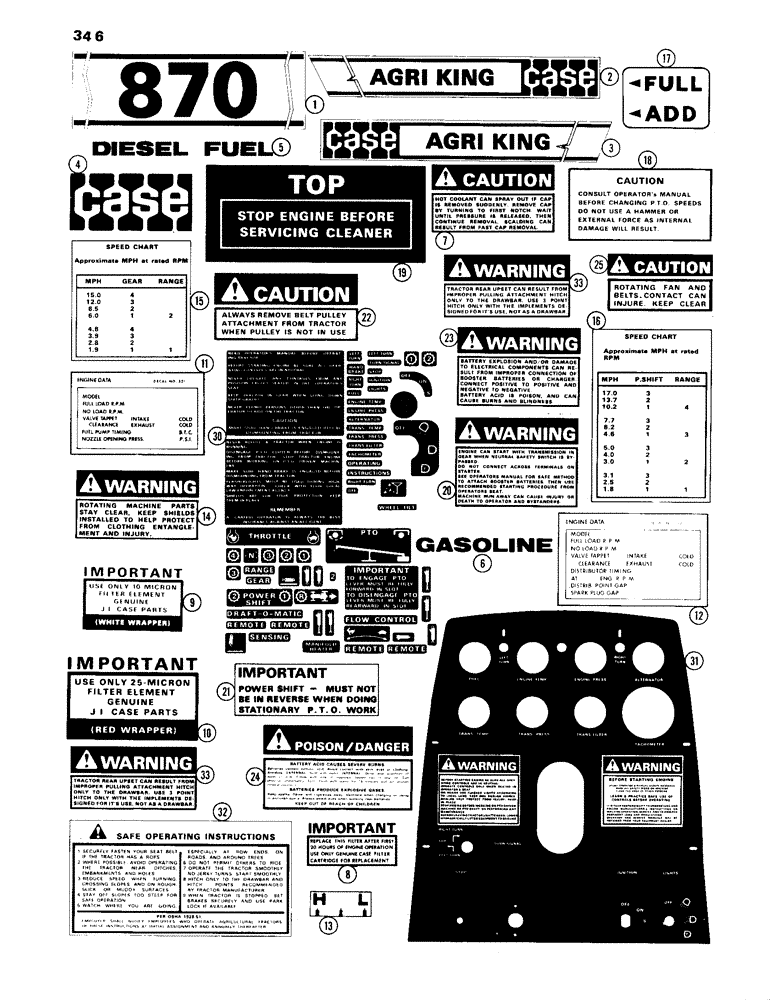

Запчасти Case IH 870 (346) - DECALS, FIRST USED TRACTOR SERIAL NUMBER 8736722 (09) - CHASSIS/ATTACHMENTS

A45262

KIT

- decal (includes ref. 1 - 25)

1шт.

1

321-2659

DECAL

- 870

2шт.

2

321-2670

DECAL

- Case Agri-King, R.H. side

1шт.

3

321-2671

DECAL

- Case Agri-King, L.H. side

1шт.

4

321-2600

DECAL

- Case (on fuel tank)

1шт.

5

321-2601

DECAL

- Diesel fuel (on fuel tank)

1шт.

6

321-2169

DECAL

- Gasoline (on fuel tank)

1шт.

7

321-3708

DECAL

- pressure cooling system (Replaces 321-2100)

1шт.

8

321-2101

DECAL

- Important, engine oil filter change

1шт.

9

321-1762

DECAL

- oil filter warning (10 micron)

1шт.

10

321-1763

DECAL

- oil filter warning (25 micron)

1шт.

11

321-2318

DECAL

- engine data (Diesel)

1шт.

12

321-1829

DECAL

- engine data (Gasoline)

1шт.

13

321-1335

DECAL

- seat adjustment indicator

1шт.

14

321-3710

DECAL

- warning, shields

1шт.

15

321-1825

DECAL

- speed chart (8 speed mech. shift)

1шт.

16

321-1826

DECAL

- speed chart (12 speed power shift)

1шт.

17

321-1642

DECAL

- Add-Full (Trans. Case)

1шт.

18

321-1650

DECAL

- Caution, P.T.O.

1шт.

19

321-1568

DECAL

- air cleaner

1шт.

20

321-3709

DECAL

- jumper cable (Replaces 321-2788)

1шт.

21

321-2741

DECAL

- Important, power shift

1шт.

22

321-2666

DECAL

- belt pulley

1шт.

23

321-3707

DECAL

- booster-charger connection

1шт.

1st on used tractor S.N. 8797501

1шт.

24

321-2996

DECAL

- battery

1шт.

1st on used tractor S.N. 8797501

1шт.

25

321-3596

DECAL

- warning, fan

1шт.

1st on used tractor S.N. 8797501

1шт.

30

321-3104

DECAL

KIT - decal, control console

1шт.

1st on used tractor S.N. 8797501

1шт.

31

321-3764

DECAL

- operational procedure & inst. panel

1шт.

1st on used tractor S.N. 8797501

1шт.

32

321-3739

DECAL

- operating instruction (OSHA)

1шт.

1st on used tractor S.N. 8797501

1шт.

33

321-3845

DECAL

- hitch instructions

1шт.

1st on used tractor S.N. 8797501

1шт.
