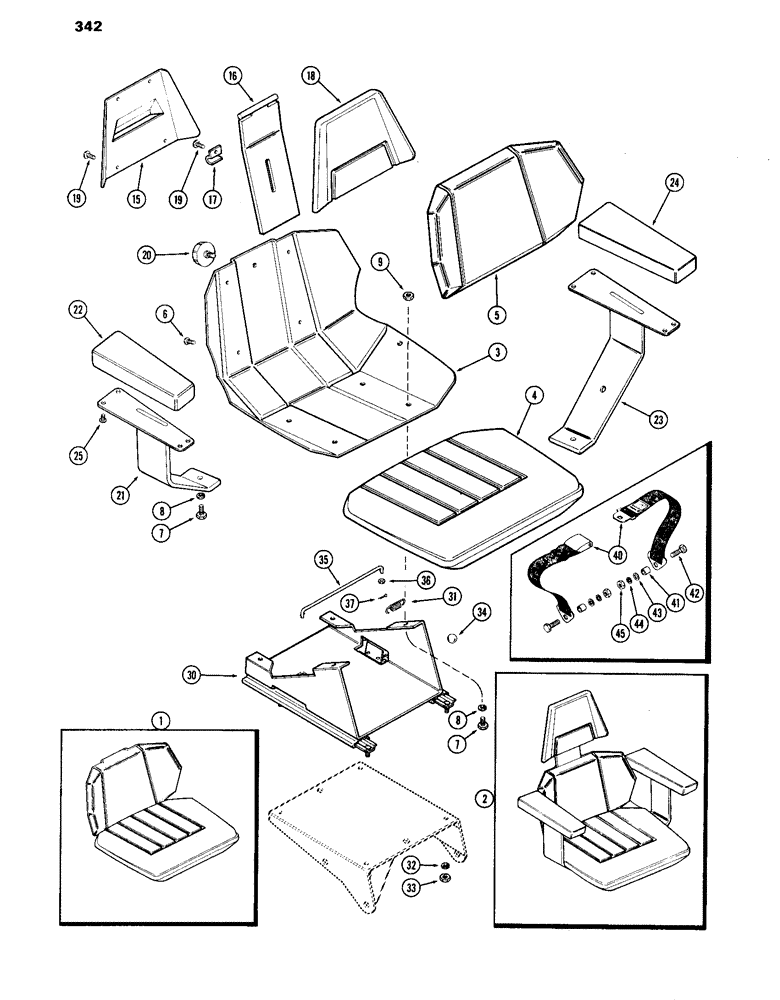

Запчасти Case IH 870 (342) - AGRI-KING SEAT, USED PRIOR TO TRACTOR SERIAL NUMBER 8693001 (09) - CHASSIS/ATTACHMENTS

1

A60460

DIFFERENTIAL ASSY

SEAT ASSY. - Agri-King (w/o arm & backrests) (Order A64833) (includes ref. 3 - 9 and 15 - 25)

1шт.

Ref #2 subs to 1340130C1. This new seat will not fit if the mounting bracket #30 A60450 is still being used. There will be an issue with the way the new seat fits on the old bracket. The only way to solve this is to remove the original bracket, order B93708 bracket, and order a seat that would fit with this bracket from the Mix n Match Seat program. You will then need to redrill holes in the floor to match the bracket

1шт.

2

A60470

SEAT

ASSY. - Agri-King (w/arm & backrests) (Order A64492) (includes ref. 3 - 9 and 15 - 25)

1шт.

3

A60461

FRAME

ASSY. - seat (Order A66642)

1шт.

4

A60462

CUSHION

ASSY. - seat bottom

1шт.

5

A60465

CUSHION

ASSY. - backrest (Order A64823)

1шт.

6

182-123

SCREW,Sl Pan Hd, #10 - 24 x 3/8"

- #10 x 3/8" N.C. pan hd. mach.

4шт.

7

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

4шт.

7

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

w/arm & backrests only Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

7

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT - 3/8 x 1/2" N.C. hex (w/o arm & backrest only)

4шт.

8

92-6

LOCK WASHER,3/8"

4шт.

9

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

4шт.

A60696

BACKREST ASSY. - upper (includes ref. 15 - 19)

1шт.

15

A60478

FRAME

- upper backrest cushion (Order A66649)

1шт.

16

A60697

SPRING ASSY. - backrest

1шт.

17

A60479

CLIP

- upper backrest pivot

2шт.

18

A60472

CUSHION

ASSY. - backrest, upper

1шт.

19

182-123

SCREW,Sl Pan Hd, #10 - 24 x 3/8"

- #10 x 1/2" pan hd. mach.

6шт.

20

A60468

KNOB

ASSY. - backrest adjusting

1шт.

21

A61092

SUPPORT

ASSY. - arm rest, R.H.

1шт.

22

A61098

CUSHION

- arm rest, R.H.

1шт.

23

A61093

SUPPORT

ASSY. - arm rest, L.H.

1шт.

24

A61099

CUSHION

- arm rest, L.H.

1шт.

25

187-534

SELF-TAP SCREW,Slotted Pan Hd, #10 x 1/2"

SCREW - #10 x 1/2" rd. hd. self tapping

8шт.

30

A60450

SUPPORT

ASSY. - seat, upper (includes ref. 31)

1шт.

31

A42299

SPRING

- adjuster return

1шт.

32

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

33

9635082

NUT,5/16" - 18, Gr 5

4шт.

34

A59829

KNOB

- seat adjuster, L.H.

1шт.

To be attached with Adhesive 345-22

1шт.

35

A60898

ROD - seat lock

1шт.

36

95-3

WASHER,#12

- (1/4 x 9/16 x 3/64")

2шт.

37

132-6

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter) 1/16" x 5/8"

2шт.

40

A66391

SAFETY BELT

SAFETY BELT (Replaces A60906)

1шт.

41

A60907

BUSHING

SPACER - anchor, seat belt

2шт.

42

A61946

STEP BOLT

BOLT - seat belt shoulder

2шт.

43

195-529

WASHER,7/16", SAE

- 15/32 x 59/64 x 1/16"

2шт.

44

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

45

425-117

NUT,7/16"-20, G5

- 7/16" N.F. hex

2шт.
