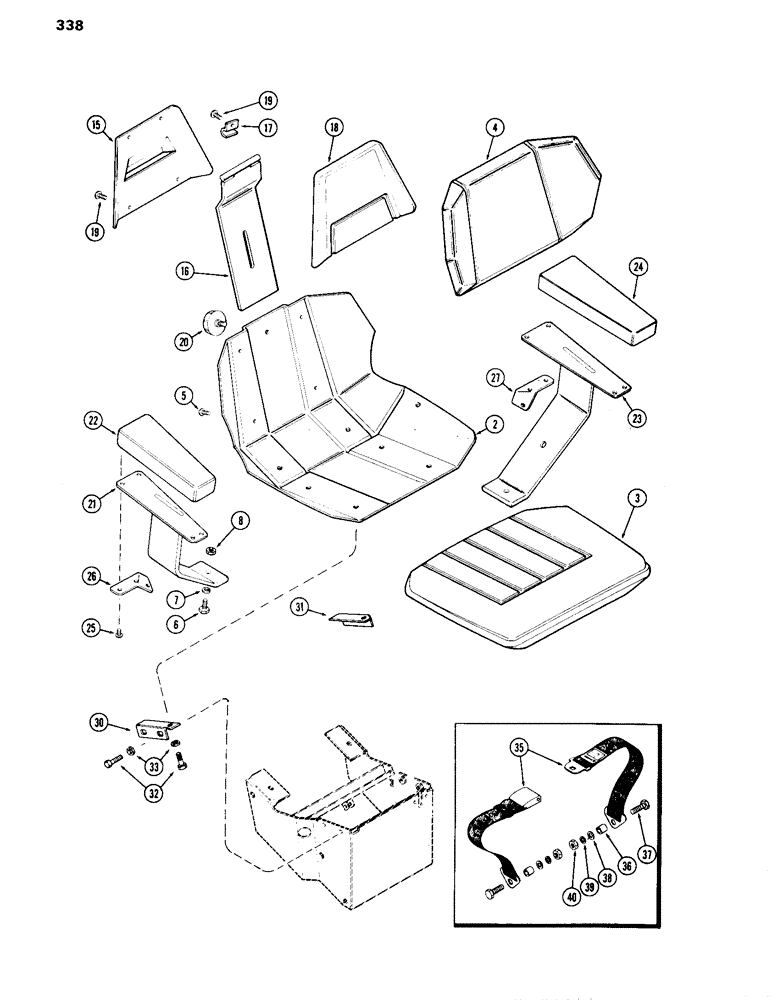

Запчасти Case IH 870 (338) - AGRI-KING SEAT, VINYL WITHOUT CAB, FIRST USED TRACTOR SERIAL NUMBER 8736722 (09) - CHASSIS/ATTACHMENTS

A66641

SEAT

ASSY. - complete w/arms & backrest (includes ref. 2 - 27)

1шт.

A66654

SEAT

ASSY. - w/o arm & back rests (includes ref. 2 - 8)

1шт.

2

A66642

FRAME

ASSY. - seat

1шт.

3

A60462

CUSHION

ASSY. - seat bottom

1шт.

4

A64823

CUSHION

ASSY. - backrest

1шт.

5

182-526

SCREW,Cross Pan Hd, #10 - 24 x 3/8"

- #10-24 x 3/8" pan hd.

6шт.

6

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

5шт.

7

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

8шт.

8

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

4шт.

15

A66649

SUPPORT

FRAME - upper back rest

1шт.

16

A66648

SUPPORT

SPRING ASSY. - back rest

1шт.

17

A60479

CLIP

- upper backrest pivot

1шт.

18

A60472

CUSHION

- upper backrest

1шт.

19

182-123

SCREW,Sl Pan Hd, #10 - 24 x 3/8"

- #10-24 x 1/2" pan hd.

6шт.

20

A60468

KNOB

ASSY. - adjusting, back rest

1шт.

21

A66643

SUPPORT

- R.H. armrest

1шт.

22

A61098

CUSHION

- R.H. armrest

1шт.

23

A66644

SUPPORT

- L.H. armrest

1шт.

24

A61099

CUSHION

- L.H. armrest

1шт.

25

187-534

SELF-TAP SCREW,Slotted Pan Hd, #10 x 1/2"

SCREW - #10 x 1/2" rd. hd. self-tapping

8шт.

26

A66645

SUPPORT

- R.H., Serial Range: armrest-backrest

1шт.

27

A66646

SUPPORT

- L.H., Serial Range: armrest-backrest

1шт.

30

A66650

BRACKET

- seat support, R.H.

1шт.

31

A66651

BRACKET

- seat support, L.H.

1шт.

32

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

33

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

35

A66391

SAFETY BELT

SAFETY BELT

1шт.

36

A60907

BUSHING

SPACER - anchor, seat belt

2шт.

37

A61946

STEP BOLT

BOLT - seat belt shoulder

2шт.

38

195-529

WASHER,7/16", SAE

- 15/32 x 59/64 x 1/16"

2шт.

39

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

40

425-117

NUT,7/16"-20, G5

- 7/16" N.F. hex

2шт.
