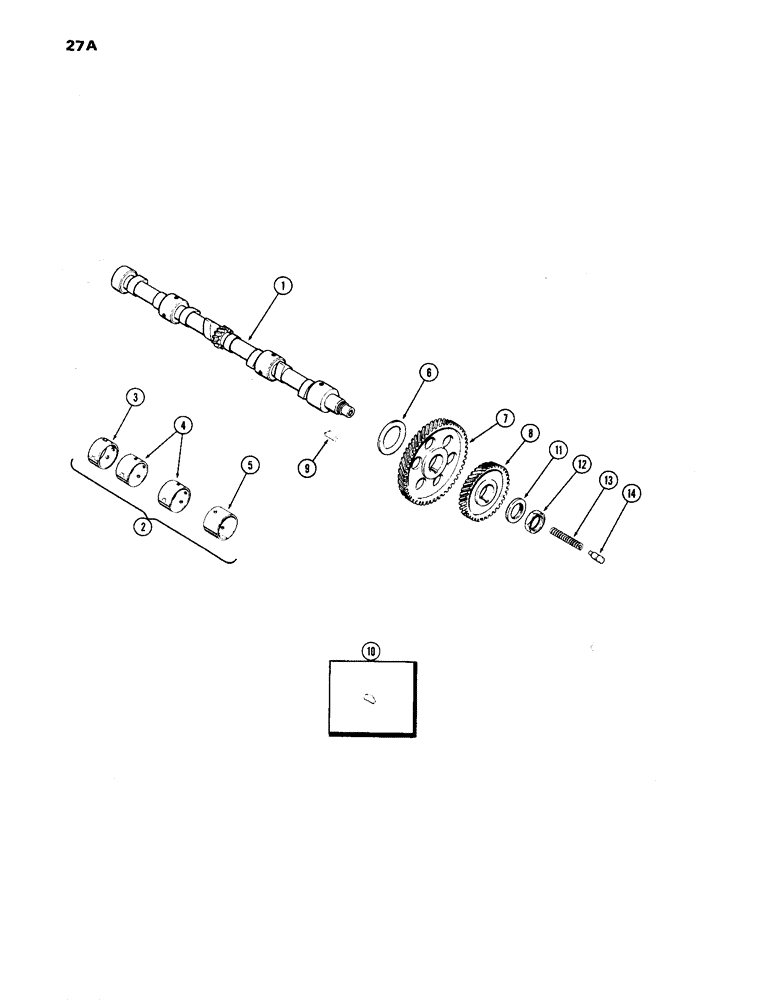

Запчасти Case IH 870 (027A) - CAMSHAFT, (336B) DIESEL ENGINE (02) - ENGINE

1

A66742

CAMSHAFT

- (1st used eng. ser. no. 2324460) (Replaces A62733)

1шт.

1

A58724

CAM

SHAFT - (used prior to eng. ser. no. 2324460) (Order A66742 & 126-227)

1шт.

2

A23577

KIT

BUSHING KIT - camshaft (Set of 4) (includes ref. 3, 4 & 5)

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, rear (1-5/32" wide)

1шт.

4

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, intermediate (1-7/16" wide)

2шт.

5

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, front (1-21/32" wide)

1шт.

6

A21017

WASHER

- camshaft & thrust

1шт.

7

A58592

GEAR

- camshaft

1шт.

8

A58593

GEAR

- idler drive

1шт.

9

126-227

WOODRUFF KEY,Hi-Pro, 1 1/4" Dia x 5/16" x 1"

KEY - Hi-Pro, 5/16 x 1-5/16" (1st used eng. ser. no. 2324460)

1шт.

10

126-29

WOODRUFF KEY,#C, 5/16" x 1 1/8"

(Used prior to eng. S/N 2324460) #C, 5/16" x 1 1/8"

1шт.

11

A31038

THRUST WASHER

- lock, camshaft nut (Replaces A58594)

1шт.

12

A58595

NUT

- camshaft

1шт.

13

P0027853A

LARGE PIN

- plunger, camshaft thrust

1шт.

14

A27852

PLUNGER

- thrust, camshaft

1шт.
