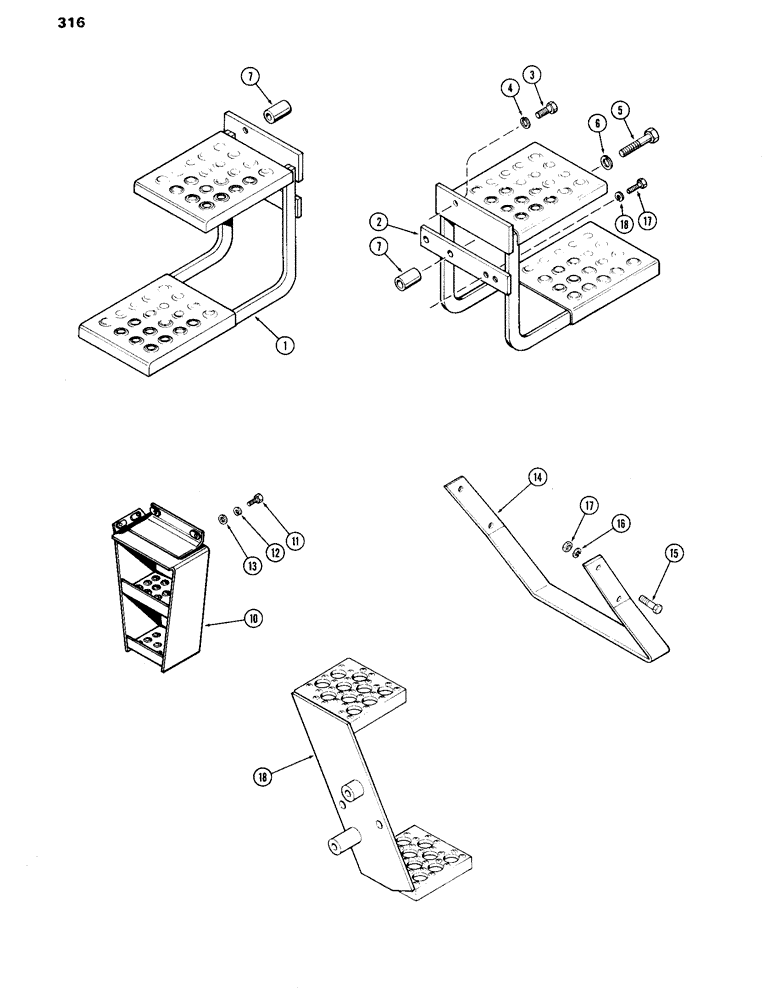

Запчасти Case IH 870 (316) - STEPS, WITHOUT CAB (09) - CHASSIS/ATTACHMENTS

1

A59332

STEP ASSY. - R.H.

1шт.

2

A59333

STEP ASSY. - L.H.

1шт.

3

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

4

92-8

LOCK WASHER,1/2"

2шт.

5

13-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

- 5/8 x 3-1/2" N.C. hex

4шт.

6

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

7

A60897

TUBE - step mounting spacer

4шт.

10

A61143

STEP

ASSY. - cab mounting, w/cab

1шт.

11

13-206

SCREW

BOLT - 3/8 x 3/4" N.C. hex, w/cab

4шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , w/Cab 3/8"

4шт.

13

195-526

WASHER,7/16" x 7/8" x .083"

- 7/16 x 7/8 x 3/32", w/cab

4шт.

A64599

ATTACHMENT - step extension (Mach. Item), w/cab (includes ref. 14 - 17)

1шт.

14

NSS

NOT SOLD SEPARAT

STEP - extension, w/cab

1шт.

15

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

w/ Cab Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

16

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , w/Cab 1/2"

4шт.

17

129-105

NUT,Hex, 1/2" - 13, Gr 5

w/Cab 1/2"-13, G5

4шт.

A43094

CLUTCH

ATTACHMENT - step, servicing, w/cab (includes ref. 18)

1шт.

18

A32659

STEP

- servicing, w/cab

1шт.
