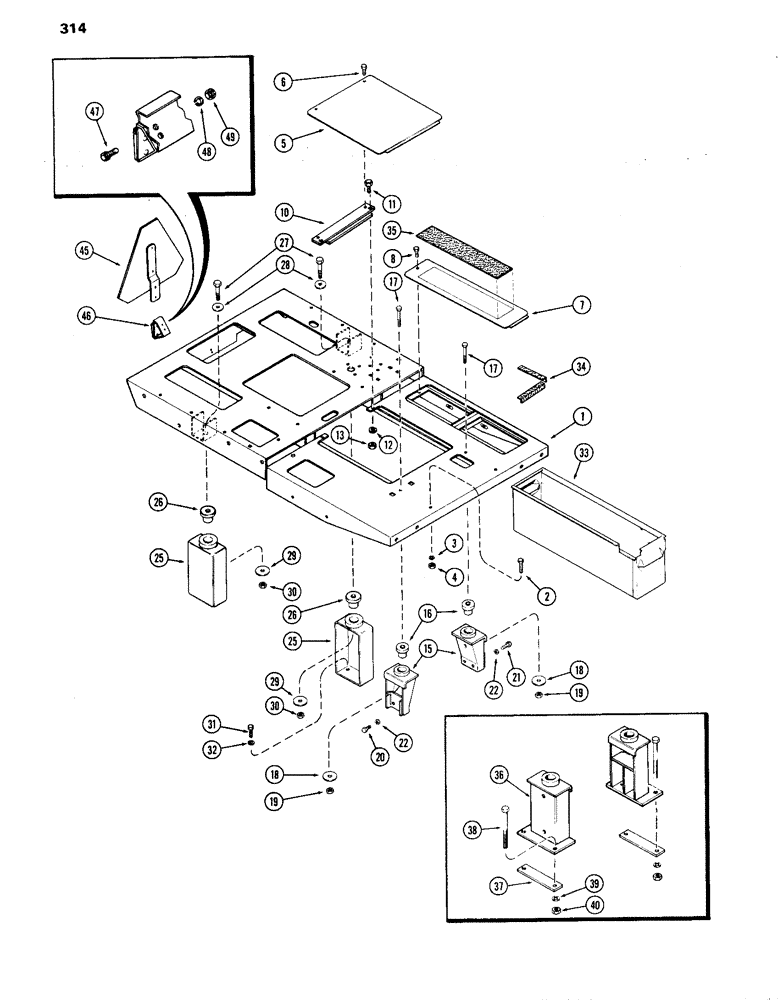

Запчасти Case IH 870 (314) - PLATFORM (09) - CHASSIS/ATTACHMENTS

1

A135048

PLATFORM ASSY.

DECK ASSY. platform (Replaces A62691)

1шт.

2

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

3

92-5

LOCK WASHER,5/16"

2шт.

4

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

2шт.

5

A61175

COVER ASSY. - platform

1шт.

6

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

7

A59507

GUARD

COVER ASSY. - battery

1шт.

8

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

1шт.

10

A60090

SUPPORT - platform cover

1шт.

11

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

12

92-5

LOCK WASHER,5/16"

2шт.

13

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

2шт.

15

A62652

MOUNTING PARTS

MOUNT - platform, front

2шт.

16

A59514

RUBBER BUSHING,13.49mm ID x 34.29mm OD x 41.1mm L

MOUNT - rubber, front

2шт.

17

13-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

2шт.

18

A66681

WASHER

- (33/64 x 2 x 1/4")

2шт.

19

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

2шт.

20

13-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

2шт.

21

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

2шт.

22

92-8

LOCK WASHER,1/2"

4шт.

25

A60547

MOUNT ASSY. - platform, rear (w/o cab) (See ref. 36)

2шт.

26

A59516

RUBBER MOUNTING,63.5mm OD x 50.8mm L

MOUNT - rubber, rear

2шт.

27

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

2шт.

28

95-10

WASHER,5/8"

- 11/16 x 1-3/4 x 9/64"

2шт.

29

A59517

WASHER,16.66mm ID x 57.15mm OD x 6.35mm Thk

- 21/32 x 2-1/4 x 1/4"

2шт.

30

131-1105

LOCK NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

2шт.

31

13-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5, Full Thd

4шт.

32

92-8

LOCK WASHER,1/2"

4шт.

33

A62137

BOX

ASSY. - battery

1шт.

34

A62468

TREAD

- platform, non-slip

2шт.

35

A62469

COVER

TREAD - battery cover, non-slip

1шт.

36

A64408

PLATFORM

MOUNT - platform, rear (Replaces A62656) (w/cab)

2шт.

37

A60874

PLATE - platform rear mount

2шт.

38

15-8120

BOLT

- 1/2 x 7-1/2" N.C. hex

4шт.

39

92-8

LOCK WASHER,1/2"

4шт.

40

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

4шт.

45

A59450

WARNING SIGN

EMBLEM ASSY. - SMV

1шт.

46

A60977

BRACKET

ASSY. - SMV emblem

1шт.

47

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

SMV emblem Hex, 1/4"-20 x 5/8", G5, Full Thd

2шт.

48

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , SMV emblem 1/4"

2шт.

49

25-104

NUT,1/4"-20, G5

SMV emblem 1/4"-20, G5

2шт.
