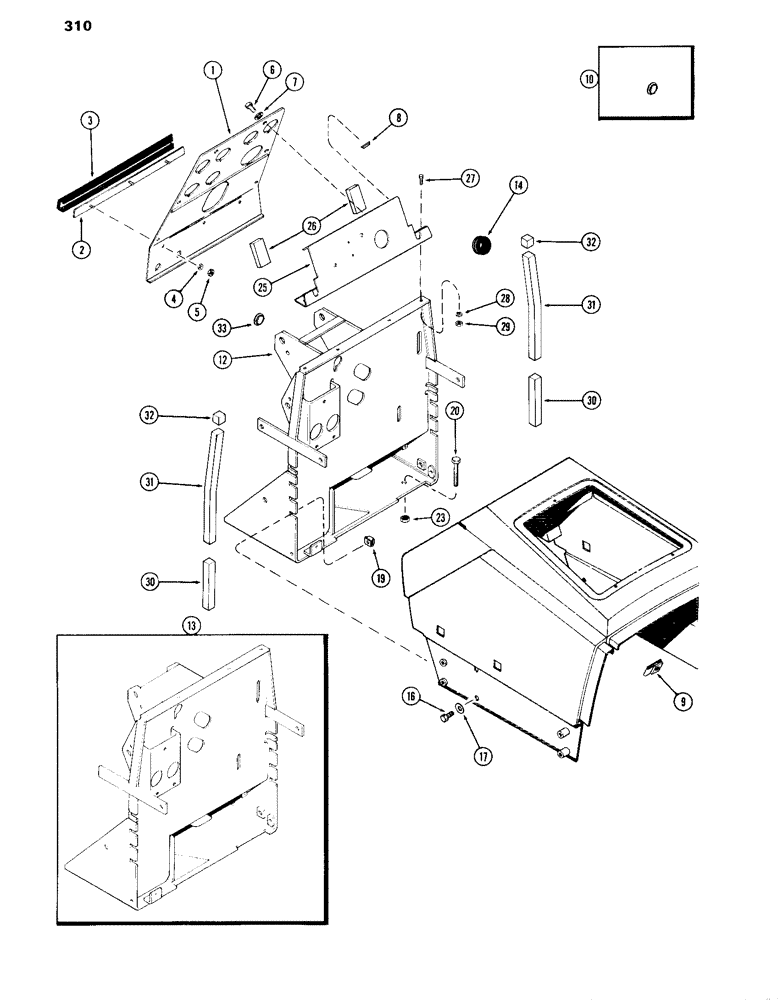

Запчасти Case IH 870 (310) - INSTRUMENT PANEL, FIRST USED TRACTOR SERIAL NUMBER 8693001 (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
A65991
PANEL ASSY.
- instrument (Diesel) (w/decals) (Replaces A64900) (See decals, Figure 346)
1шт.
1
A64896
PANEL ASSY. - instrument (Spark) (w/decals, See Figure 346)
1шт.
2
A60957
PLATE ASSY. - molding
1шт.
3
A63895
MOLDING
MOULDING - panel bumper
1шт.
4
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
3шт.
5
25-104
NUT,1/4"-20, G5
3шт.
6
A60266
SCREW,Hex, 0.19"-24 x 5/8", Brass, BLK
- brass, #10-24 x 5/8" hex
6шт.
7
193-93
LOCK WASHER,#10
WASHER - Shakeproof, int. #10
6шт.
8
131-621
NUT,Ret, J, #10-24
- #10-24 Tinnerman
6шт.
9
131-619
SPRING NUT,J, #10 - 24, 0.031" Thk
RETAINER - #10-24 "J" Type
2шт.
10
353-411
PLUG,Dome, 1.000" hole, Nylon
Ether start switch hole Dome, 1.000" hole, Nylon
1шт.
12
A66298
FIREWALL ASSY. - (1st used trac. ser. no. 8726959)
1шт.
13
A64542
FIREWALL ASSY. - (Used prior to trac. ser. no. 8726959) (Order A66298)
1шт.
14
A59719
GROMMET
- firewall (1-1/8 x 2-1/2 x 1/2")
1шт.
16
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
Firewall Hex, 3/8"-16 x 1", G5, Full Thd
4шт.
17
95-6
WASHER,3/8"
- 7/16" x 1 x 5/64", firewall
4шт.
19
131-608
NUT
- cage, 3/8" N.C. Tinnerman, firewall
4шт.
20
13-832
BOLT,Hex, 1/2" - 13 x 2", Gr 5
Firewall Hex, 1/2"-13 x 2", G5
2шт.
23
25-108
NUT,1/2"-13, G5
- 1/2" N.C. hex, firewall
2шт.
25
A64546
BAFFLE
ASSY. - steering wheel (Order 1-A66412, 1-A66417 & A66421), firewall (includes ref. 26)
1шт.
26
A59805
FILLER
BAFFLE - air, firewall
2шт.
27
13-416
BOLT,Hex, 1/4" - 20 x 1", Gr 5
Firewall Hex, 1/4"-20 x 1", G5
4шт.
28
92-4
LOCK WASHER,1/4"
WASHER, LOCK, , Firewall 1/4"
4шт.
29
25-104
NUT,1/4"-20, G5
Firewall 1/4"-20, G5
4шт.
30
A60777
FOAM
BAFFLE - low, firewall side
2шт.
34
A60774
BAFFLE - center, firewall side
2шт.
32
A60775
BAFFLE - upper, firewall side
2шт.
33
205-61
HOLE PLUG BUTTON,1 1/2"
PLUG - button, 1-1/2" dia., firewall
1шт.
Выбрано товаров: 28
