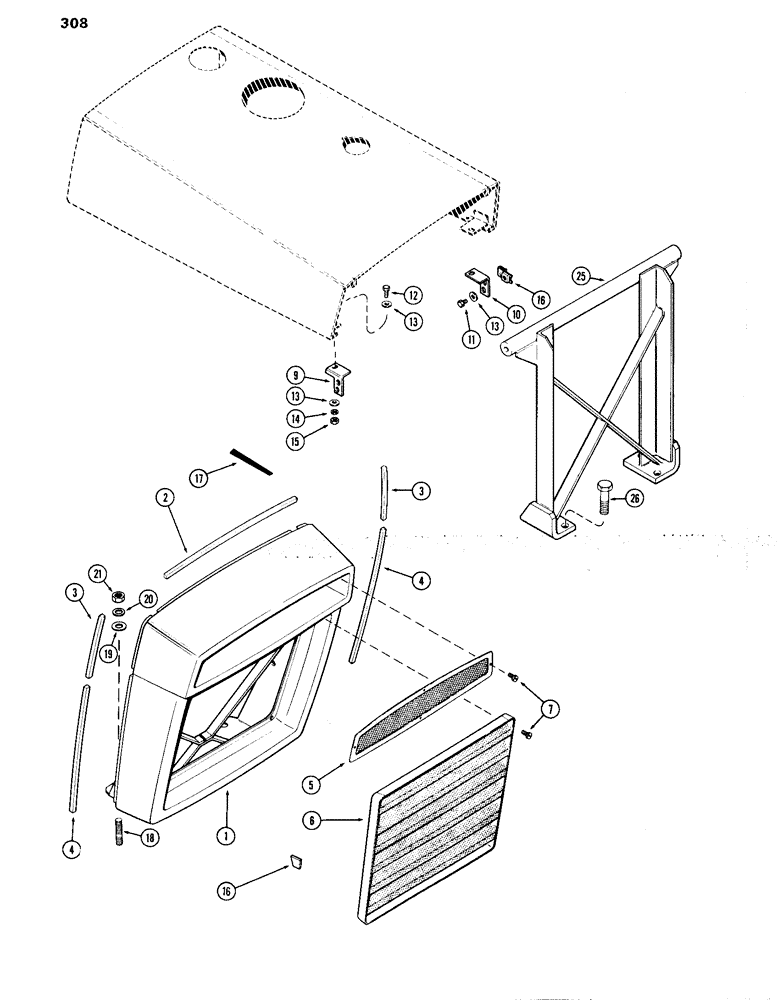

Запчасти Case IH 870 (308) - GRILLE (09) - CHASSIS/ATTACHMENTS

1

A61081

GRILL ASSY. - fiberglass

1шт.

2

A59746

SEAL

SPACER - hood to grill, center

1шт.

To be attached with Adhesive 345-22

1шт.

3

A59747

GASKET

SPACER - hood to grill side, upper

2шт.

To be attached with Adhesive 345-22

1шт.

4

A59748

GASKET

SPACER - front side, Serial Range: sheets-grill

2шт.

To be attached with Adhesive 345-22

1шт.

5

A59749

SCREEN ASSY. - grill cap

1шт.

6

A59752

FILTER SCREEN

SCREEN ASSY. - grill

1шт.

7

169-154

SCREW,Phil Fil Hd, 5/16" - 18 x 3/4"

- 5/16 x 3/4" N.C. Phillips (black)

8шт.

8

131-616

NUT,Ret, J, 5/16"-18

RETAINER - Tinnerman, "J" Type

8шт.

9

A62742

BRACKET

- front hood to grill, R.H.

1шт.

10

A62743

BRACKET

- front hood to grill, L.H.

1шт.

11

280345

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

- (5/16 x 7/8" N.C. hex) (Black Zinc)

4шт.

12

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

13

95-5

WASHER,3/8" x 7/8" x .083"

- 3/8 x 7/8 x 5/64"

8шт.

14

192-45

LOCK WASHER

- lock, 5/16" (black)

6шт.

15

129-518

NUT,5/16"-18, G5

- 5/16" N.C. hex (black)

2шт.

16

A62211

FOAM

- grill screen

12шт.

17

A135604

POINTER

TRIM - grill sight gauge (Standard)(Replaces A62690)

1шт.

17

A75012

TRIM - grill sight gauge (Demonstrator)

1шт.

18

A59423

STUD - grill, 3/4" N.F. x 3-45/64"

4шт.

19

195-45

WASHER,3/4"

4шт.

20

192-167

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

21

25-1712

NUT,3/4"-16, G5, Hvy

- 3/4" N.F. hex

4шт.

To be attached with Adhesive 345-22

1шт.

25

A60535

ATTACHMENT - support (Mach. Item), implement support

1шт.

26

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

Implement support Hex, 3/4"-10 x 2", G5

4шт.
