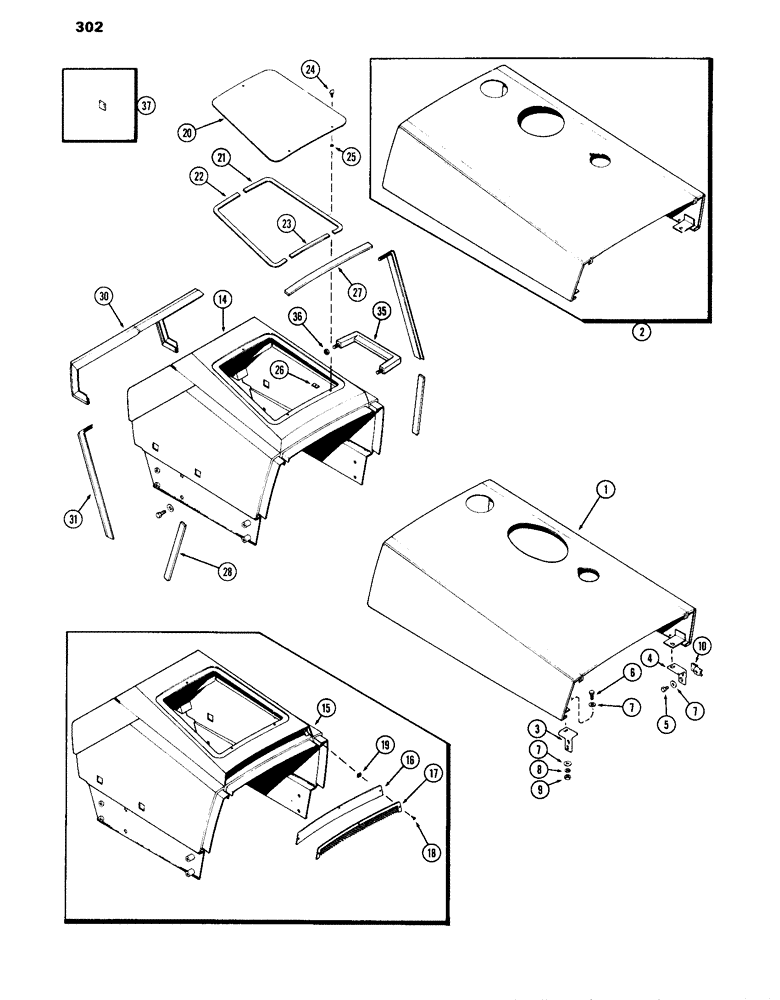

Запчасти Case IH 870 (302) - HOOD (09) - CHASSIS/ATTACHMENTS

1

A65738

HOOD ASSY. - front (1st used trac. ser. no. 8728239)

1шт.

2

A60926

HOOD ASSY. - front (used prior to trac. ser. no. 8728239)

1шт.

3

A62742

BRACKET

- front hood to grill mtg., R.H.

1шт.

4

A62743

BRACKET

- front hood to grill mtg., L.H.

1шт.

5

113-152

BOLT,Hex, 5/16" - 18 x 1", Gr 5, Full Thd

- 5/16 x 1" N.C. hex

4шт.

6

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

7

95-5

WASHER,3/8" x 7/8" x .083"

- 3/8 x 7/8 x 5/64"

8шт.

8

92-5

LOCK WASHER,5/16"

6шт.

9

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

2шт.

10

131-616

NUT,Ret, J, 5/16"-18

- 5/16" N.C. Tinnerman, Type J

4шт.

14

A65200

HOOD ASSY. - rear (1st used trac. ser. no. 8727601)

1шт.

15

A60930

HOOD ASSY. - rear (Used prior to trac. ser. no. 8727601) (Order A65200)

1шт.

16

A64876

COVER

- hood opening (1st used trac. ser. no. 8693001)

1шт.

17

A59395

SCREEN

- rear hood (Used prior to trac. ser. no. 8693001) (Order A64876)

1шт.

18

182-522

SCREW,Cross Pan Hd, #6 - 32 x 1/2"

- #6-32 x 1/2" N.C. pan hd. phillips

3шт.

19

131-618

NUT

- #6 N.C. Tinnerman

3шт.

20

A59391

COVER

- hood access

1шт.

21

A135682

SEAL

- hood access cover, R.H. (w/self-adhesive back) (Replaces A59400)

1шт.

22

A135681

SEAL

- hood access cover, L.H. (w/self-adhesive back) (Replaces A59400)

1шт.

23

A135680

SEAL

SEAL - hood access cover, center (w/self-adhesive back) (Replaces A59401)

1шт.

24

A61044

STUD

- wing hd., rear hood cover

3шт.

25

A61045

RETAINER

- stud, rear hood cover

3шт.

26

A61046

CLIP

RECEPTACLE CLIP - rear hood cover

3шт.

A45349

KIT

- seal, 1 x 1/2 x 48" (Cut as req'd) (includes ref. 27 & 28)

1шт.

27

NSS

NOT SOLD SEPARAT

SEAL - rear hood center, 1 x 1/2 x 17" self-adhesive back (Order A45349)

1шт.

28

NSS

NOT SOLD SEPARAT

SEAL - rear hood, outer, 1 x 1/2 x 11" self-adhesive back (Order A45349)

2шт.

30

A64864

GUARD

MOLDING - rear hood & inst. panel

1шт.

31

A64865

SEAT

MOULDING - rear hood lower

2шт.

35

A60530

HANDLE

- R.H. & L.H.

2шт.

36

230-4216

LOCK NUT,3/8"-16, GA

NUT - 3/8" N.C. hex lock, handles

4шт.

37

A59366

PLUG

- handle hole cover (used w/o handle)

4шт.

37

A62811

PLUG

- handle hole (used w/o handle) (Demonstrator) (Black)

4шт.
