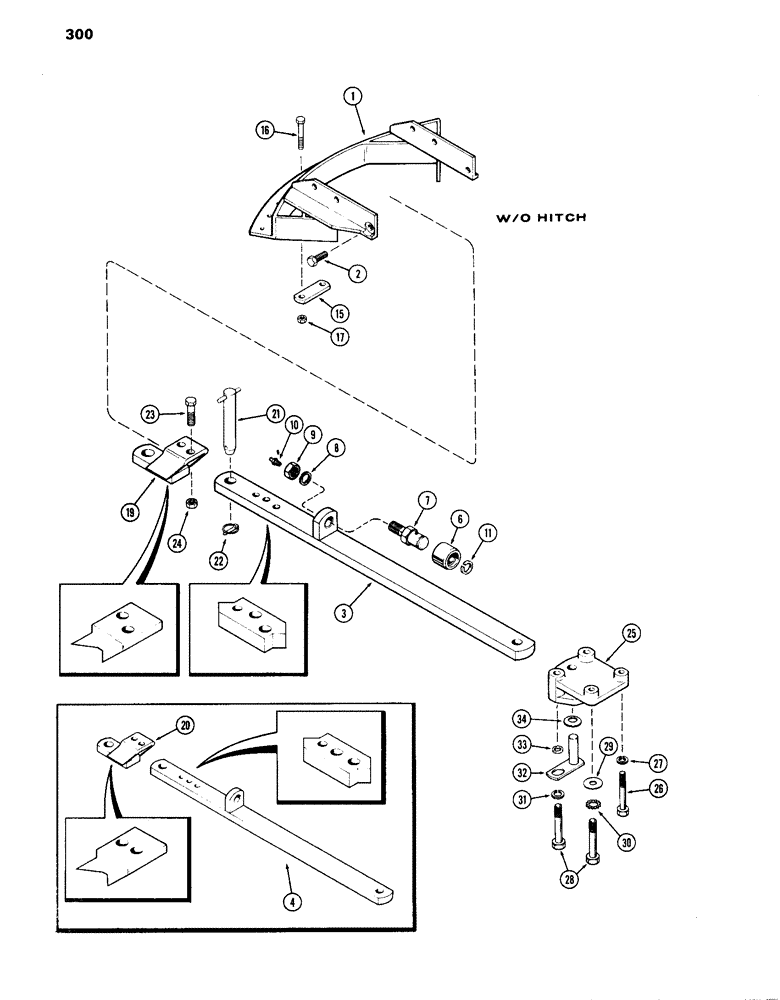

Запчасти Case IH 870 (300) - DRAWBAR, WITHOUT HITCH (09) - CHASSIS/ATTACHMENTS

1

A62133

SUPPORT ASSY. - wide swing drawbar

1шт.

2

113-746

BOLT - 3/4 x 2" N.C. hex

6шт.

3

A60420

DRAWBAR

ASSY. - wide swing (used prior to trac. ser. no. 8693001)

1шт.

4

A64192

DRAWBAR

- wide swing (1st used trac. ser. no. 8693001)

1шт.

6

A27010

ROLLER

- drawbar

1шт.

7

A32946

BOLT

- drawbar roller (Drilled)

1шт.

8

92-18

LOCK WASHER,1 1/8"

1 1/8"

1шт.

9

129-131

NUT,1 1/8"-12, G5

- 1-1/8" N.F. hex

1шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube, 1/8" P.T. str.

1шт.

11

A27012

RING

SNAP RING - drawbar roller bolt

1шт.

15

A60416

STRAP - drawbar clamp

1шт.

16

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- 1/2 x 3" N.C. hex

2шт.

17

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

2шт.

A64381

ATTACHMENT - yoke (Mach. Item) (1st used trac. ser. no. 8693001) (includes ref. 19 - 24)

1шт.

19

NSS

NOT SOLD SEPARAT

YOKE ASSY. - drawbar (1st used trac. ser. no. 8693001)

1шт.

A60353

ATTACHMENT - yoke (Mach. Item) (Used prior to trac. ser. no. 8693001) (includes ref. 20 - 24)

1шт.

20

NSS

NOT SOLD SEPARAT

YOKE ASSY. - drawbar (Used prior to trac. ser. no. 8693001)

1шт.

21

A61674

PIN ASSY. - drawbar (includes ref. 22)

1шт.

22

A30338

PIN

- klik

1шт.

23

113-763

X

BOLT - 3/4 x 2-3/4" N.C. hex

2шт.

24

129-572

NUT,3/4"-10, G8

2шт.

25

A60425

BRACKET

- drawbar pivot pin

1шт.

26

113-671

BOLT - 5/8 x 3-1/4" N.C. hex

2шт.

27

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

28

113-755

BOLT - 3/4 x 5-1/4" N.C. hex

1шт.

28

113-756

BOLT

- 3/4 x 6" N.C. hex

1шт.

29

95-12

WASHER,3/4"

- 13/16 x 2 x 5/32

1шт.

30

A34651

LOCK WASHER

- 3/4" ext. teeth

1шт.

31

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

32

A65762

PIN

ASSY. - drawbar (Replaces A59605)

1шт.

33

A57929

SPACER

- drawbar pivot

1шт.

34

A35270

WASHER

- drawbar anti-rattle spring

1шт.
